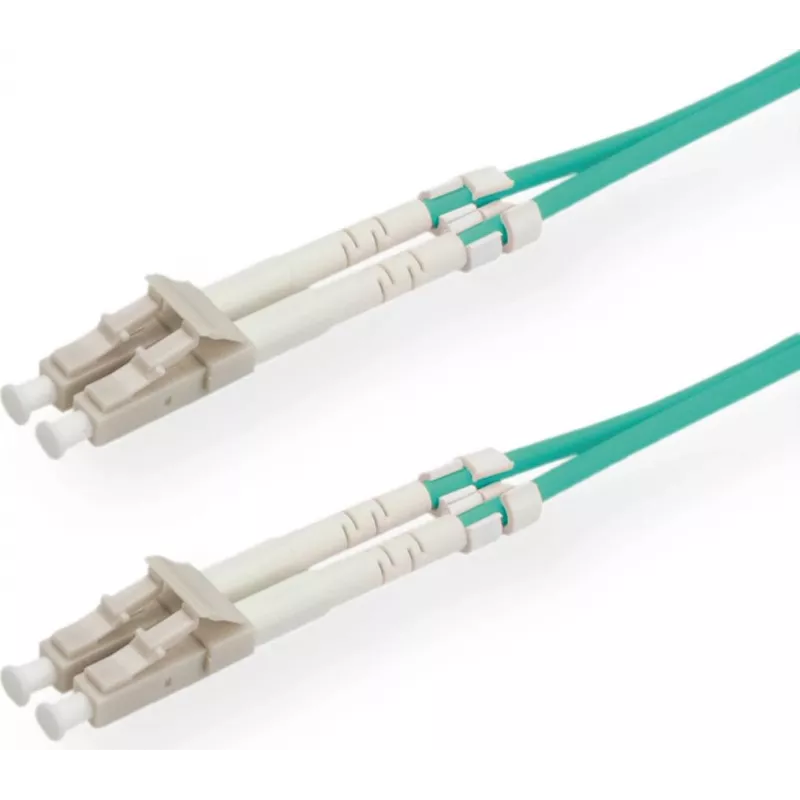

SECOMP STANDARD Cavo patch in fibra ottica OM3 50/125µm LC/LC duplex turchese 2 m S1802

Fiber optic patch cable with OM3 multimode fiber, LC duplex connectors, and a 2-meter length, delivering high-speed data transmission for 10GbE, 40GbE, and 100GbE networks. The turquoise LSZH jacket ensures safety in fire-sensitive environments while maintaining excellent signal integrity.

Advantages

This cable features a 50/125µm core/cladding diameter and OM3 classification, providing a bandwidth of 1500 MHz·km at 850nm for reliable performance in high-density data centers. The LC duplex connectors with zirconia ceramic ferrules offer low insertion loss (<0.3 dB) and high return loss (>30 dB), ensuring stable connections. The LSZH jacket is flame-retardant and emits low smoke and zero halogen, making it ideal for enclosed spaces. The crossed polarity (A-B) simplifies installation in standard network configurations.

Suitable for

• 10 Gigabit Ethernet (10GbE) backbone connections
• 40 Gigabit and 100 Gigabit Ethernet links
• Data center server and switch interconnects
• Telecommunications rooms and enterprise networks
• Environments requiring low smoke zero halogen cabling

Key specifications

• Fiber type: OM3 multimode, 50/125µm
• Connectors: LC to LC, duplex
• Length: 2 meters
• Jacket color: Turquoise
• Jacket material: LSZH
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Bandwidth: 1500 MHz·km @ 850nm, 500 MHz·km @ 1300nm
• Operating temperature: -20°C to +70°C
• Standards: IEC 60793-2-10 Type A1a.2, TIA/EIA-492AAAC-A, ISO/IEC 11801, EN 50173-1

Recommendations

For optimal performance, pair this cable with OM3-compatible transceivers and ensure proper bend radius during installation. The crossed polarity is standard for most network equipment, but verify your system requirements before deployment.
