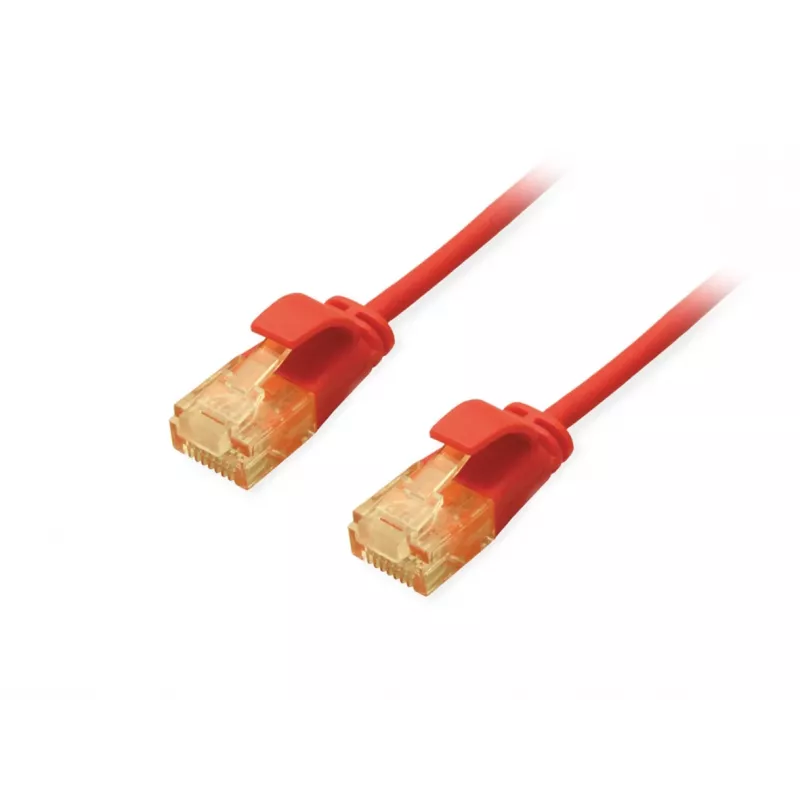

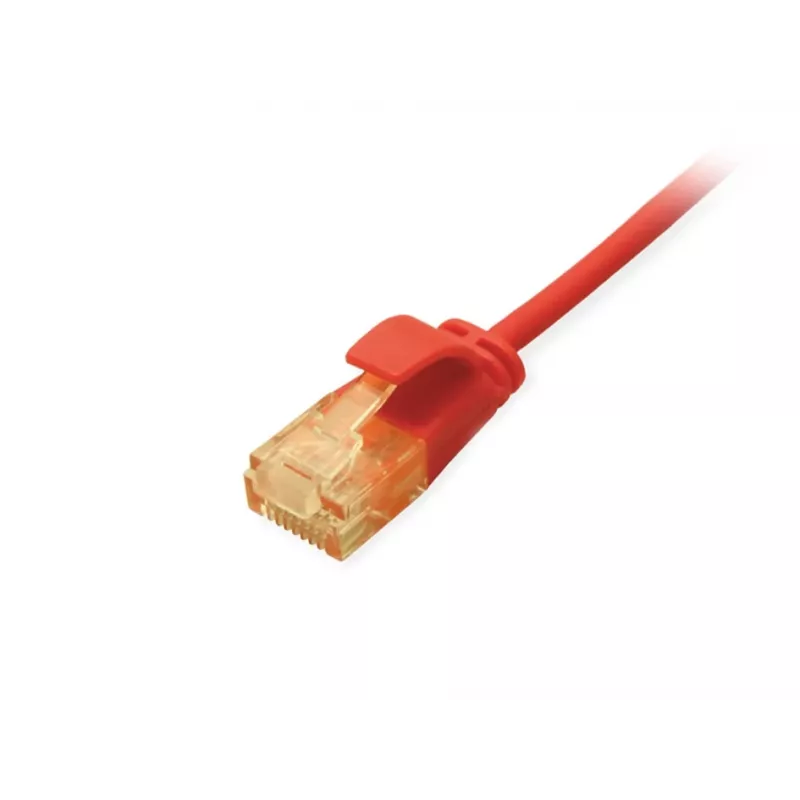

Cavo patch slim Equip Cat.6A U/UTP, 1,5 m, rosso

The Equip Cat.6A U/UTP Slim Patch Cable 1.5m Red is a slim, high-performance Ethernet patch cable designed for data centers, enterprise networks and high-density installations. With a 1.5 m length, RJ-45 connectors on both ends and a reduced diameter (32 AWG), the cable offers reliable 10 Gigabit Ethernet transmission up to 500 MHz while saving space and improving cable management in crowded racks and patch panels.

Advantages

This Cat.6A U/UTP slim cable combines a smaller conductor size and stranded bare copper for flexibility and durability during frequent reconfigurations. The unshielded twisted pair design provides strong performance in low to moderate electromagnetic environments, and the LSZH jacket reduces smoke and halogen output. The cable supports PoE and PoE+ and meets ISO/IEC 11801 and EN 50173 standards for structured cabling.

Suitable for

• Connecting switches, patch panels and servers in data centers
• High-density rack and patch panel installations
• Office and enterprise network connections requiring 10GBase-T
• PoE and PoE+ powered devices such as access points and VoIP phones

Key specifications

• Length: 1.5 m
• Conductor: stranded bare copper, 32 AWG
• Topology: Cat.6A U/UTP (unshielded twisted pair)
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbit/s (10GBase-T)
• Connectors: RJ-45 straight male – RJ-45 straight male
• PoE support: PoE, PoE+
• Jacket: Low Smoke Zero Halogen (LSZH/LSOH)
• Standards: ISO/IEC 11801, EN 50173
• Colour: Red

How to use

Plug the RJ-45 connector into the network port of your switch, patch panel or device and connect the other end to the corresponding port. Ensure connectors are fully seated and avoid sharp bends at the connector boots. Route the cable through racks or cable management panels to maintain airflow and prevent excessive strain on connectors.

Recommendations

For best performance, avoid running the U/UTP slim cable parallel to strong power sources or large electrical cables for extended distances; maintain appropriate bend radius and secure the cable to prevent repeated stress at connector ends.
