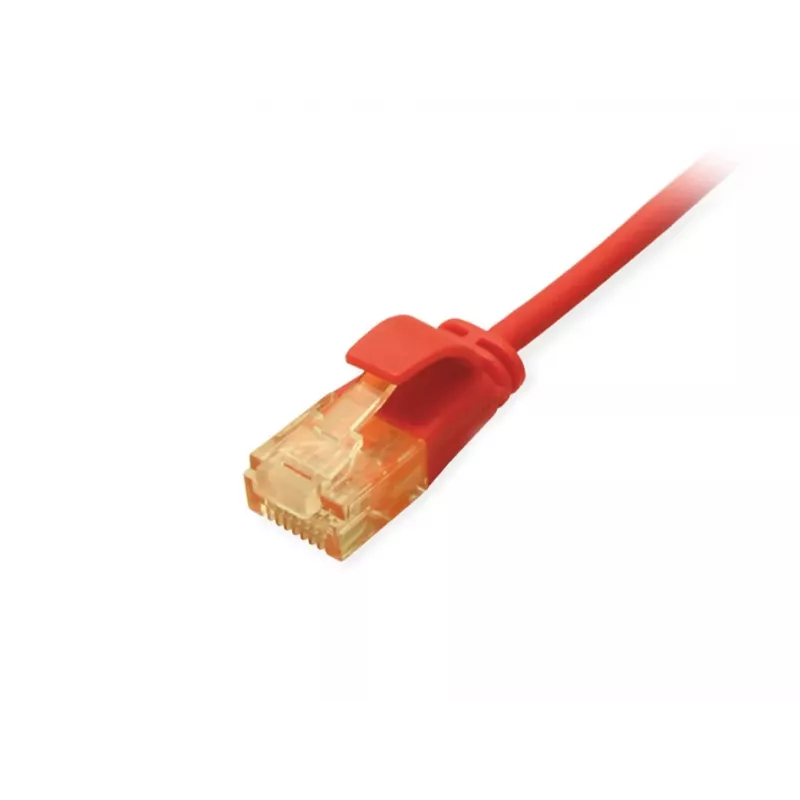

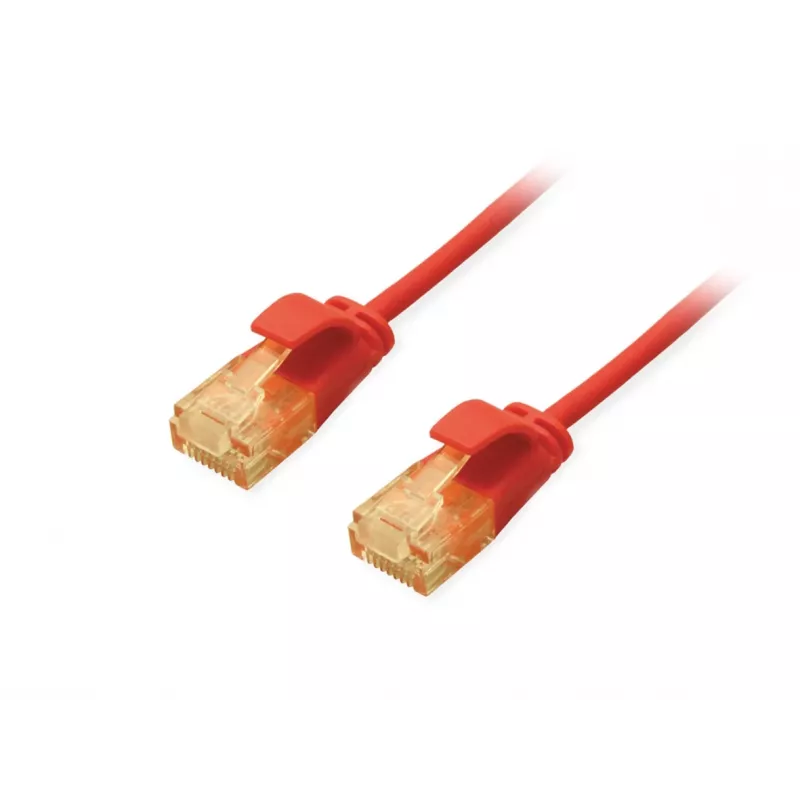

Cavo patch slim Equip Cat.6A U/UTP 1 m rosso 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 1m Red is a slim, high-performance network patch cable designed for 10 Gigabit Ethernet environments. With a 1 m length and RJ-45 plugs on both ends, this red Cat.6A U/UTP cable supports data rates up to 10000 Mbit/s and operates up to 500 MHz. Its reduced diameter (32 AWG) and stranded bare copper conductors provide flexibility and easier cable management in dense racks and patch panels while maintaining required transmission characteristics.

Advantages

The slim 32 AWG construction reduces bundle thickness and improves airflow in high-density installations. U/UTP unshielded twisted pair design offers reliable performance in low to moderate EMI environments, and stranded conductors enhance flexibility for frequent reconfiguration. The cable includes molded boots with strain relief, meets ISO/IEC 11801 and EN 50173 standards, is RoHS compliant and specified as Low Smoke Zero Halogen (LSZH/LSOH) for safer installations.

Suitable for

• 10 Gigabit Ethernet connections in data centers and enterprise networks
• High-density patch panels and crowded rack environments
• PoE and PoE+ powered devices
• Short runs between switches, patch panels and servers (1 m)

Key specifications

• Cable category: Cat6a U/UTP (unshielded)
• Length: 1 m
• Conductor: stranded bare copper, 32 AWG
• Bandwidth: up to 500 MHz
• Supported transmission: up to 10 Gbit/s (10000 Mbit/s)
• Connectors: RJ-45 straight male — both ends
• PoE/PoE+ compatible
• Standards compliance: ISO/IEC 11801, EN 50173
• Safety/Environmental: RoHS, LSZH/LSOH
• Colour: Red

How to use

Plug one RJ-45 connector into the network port of a switch, patch panel or device and the other into the corresponding port on the connected equipment. Ensure connectors are fully inserted until the latch clicks. Use the 1 m length for short horizontal or rack-side connections where a compact, flexible cable is required. Avoid sharp bends and maintain the cable bend radius recommended by the equipment manufacturer to preserve signal integrity.

Recommendations

For best performance in high-density installations, route slim patch cables in separate bundles from high-current power cabling and avoid running them parallel to strong electromagnetic sources. Verify compatibility with PoE power budgets when powering devices over the cable.
