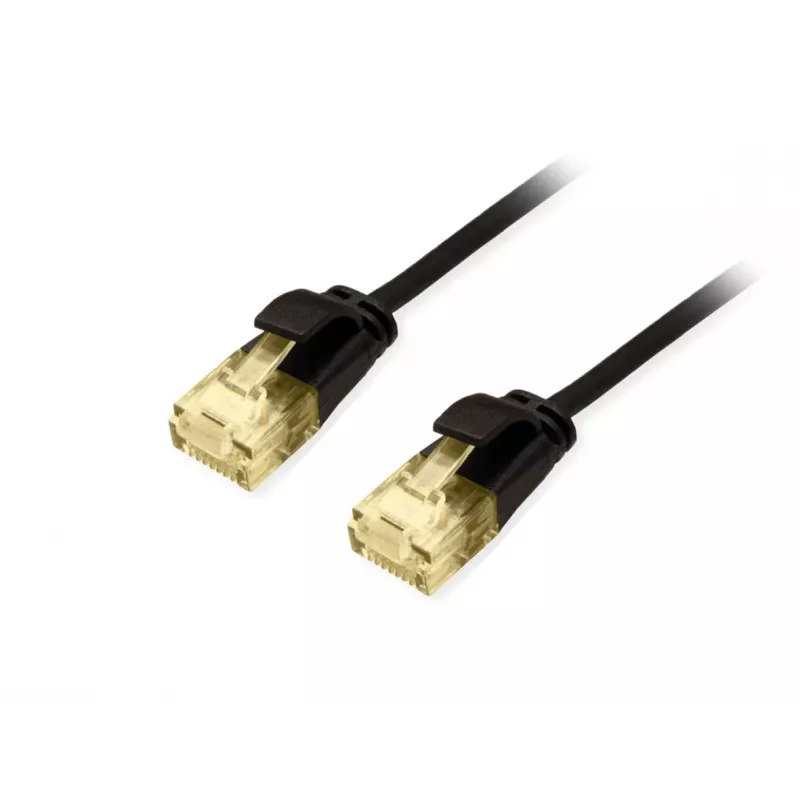

Cavo patch slim Equip Cat.6A U/UTP 2 m nero 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 2m Black is a slim, high-performance network patch cable for data centers, enterprise networks and high-density installations. At 2 meters length and with a reduced diameter (32 AWG), the cable improves cable management and rack airflow while supporting 10 Gigabit Ethernet and bandwidths up to 500 MHz. Its unshielded twisted pair (U/UTP) design and stranded bare copper conductors provide flexibility for frequent reconfigurations and reliable data transmission in low to moderate EMI environments.

Advantages

The slim 32 AWG construction reduces bulk and eases routing in congested patch panels and cable trays. Designed for 10GBase-T performance, the cable supports transmission rates up to 10 000 Mbit/s and frequencies to 500 MHz with low crosstalk and signal loss. Molded RJ‑45 connectors with strain relief, LSZH jacket and RoHS compliance combine durability, safety and regulatory conformity. The cable also supports Power over Ethernet (PoE, PoE+) and is compatible with common Ethernet standards.

Suitable for

• High-density rack and patch panel installations
• Data centres and server rooms
• Enterprise office networks and wiring closets
• PoE-powered devices such as IP phones and access points

Key specifications

• Length: 2 m

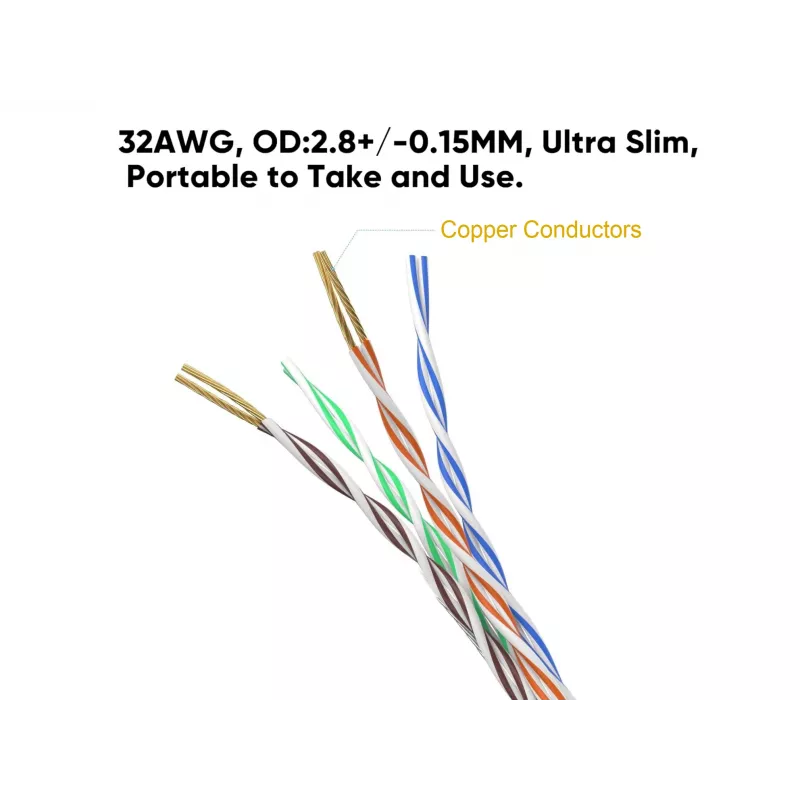

• Conductor: stranded bare copper, 32 AWG
• Type: Cat.6A U/UTP (unshielded twisted pair)
• Bandwidth: up to 500 MHz
• Maximum data rate: 10 000 Mbit/s (10 Gbit/s)
• Connectors: RJ-45 straight male — both ends
• Jacket: Low Smoke Zero Halogen (LSZH/LSOH)
• Standards: ISO/IEC 11801, EN 50173
• Colour: Black

How to use

Connect one RJ‑45 end to the network device (switch, patch panel or NIC) and the other end to the destination port. Ensure connectors are fully inserted until a click is heard. Route the cable through racks or cable management channels, avoiding excessive bending or tension to preserve performance. For PoE applications verify device compatibility and power budget before deployment.

Recommendations

For best long-term performance, avoid tight bends with radii smaller than the cable diameter, do not exceed recommended pull tensions during installation, and keep the cable away from strong electromagnetic sources when possible. Use in-line testing or certification tools if installation must meet formal channel or permanent link certification.
