Cavo SAS DeLOCK 83394

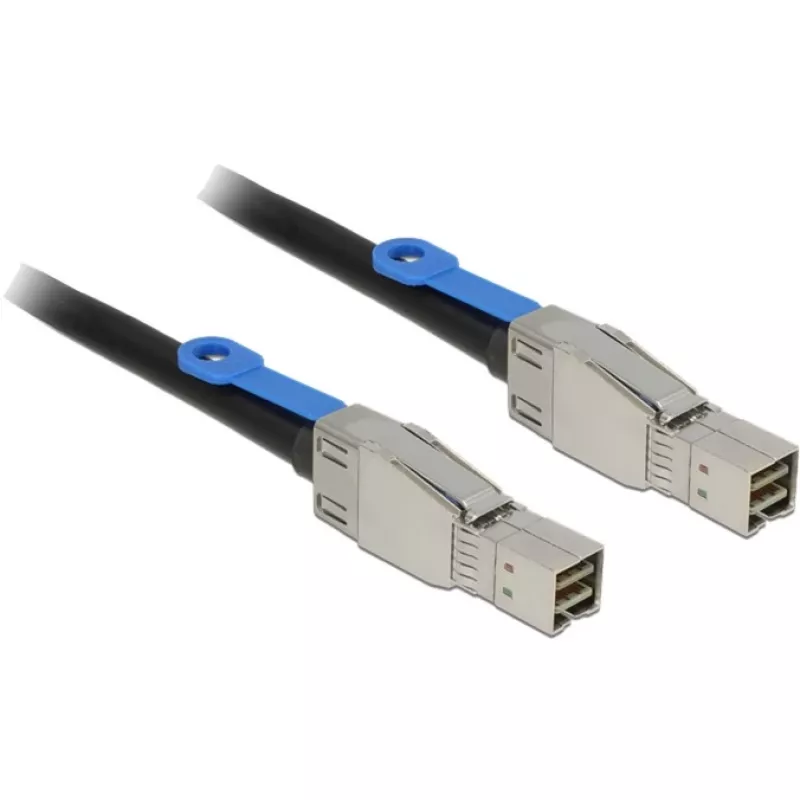

The DeLOCK 83394 is a 1 m Serial Attached SCSI (SAS) cable with Mini SAS HD x4 SFF-8644 connectors on both ends. It is designed to provide a reliable internal connection between SAS controllers and drives or other SAS devices in server and storage systems. The cable comes in a black and silver design and is intended for internal PC and rack-mounted equipment where a secure, high-speed SAS link is required.

Advantages

The cable supports Mini SAS HD x4 SFF-8644 connections on both ends for straightforward point-to-point linking. Its 1 m length offers flexibility for typical server rack and chassis layouts while maintaining signal integrity. The cable’s construction is aimed at durable performance for internal data transfer in professional environments.

Suitable for

• Connecting a single SAS drive to a Mini SAS HD x4 SFF-8644 controller
• Internal cabling in servers and storage enclosures
• Upgrading or replacing existing SAS interconnects

Key specifications

• Cable length: 1 m
• Connector 1: Mini SAS HD x4 SFF-8644
• Connector 2: Mini SAS HD x4 SFF-8644
• Product colour: Black, Silver
• Brand: DELOCK
• MPN: 83394
• EAN: 4043619833948

How to use

Power down and open the server or chassis according to the manufacturer’s safety instructions. Align each Mini SAS HD x4 SFF-8644 connector with the corresponding SAS port on the controller and the drive or target device, then insert firmly until seated. Route the cable to avoid sharp bends and secure it to prevent strain on the connectors. Close the chassis and power the system on; verify that the connected device is recognised by the controller and operating system.

Recommendations

Use the DeLOCK 83394 for internal connections only. Avoid excessive bending or twisting of the cable, maintain clear airflow inside the chassis, and ensure connectors are inserted without force. For best results in multi-drive environments, follow your controller vendor’s guidelines for cable length and topology.
