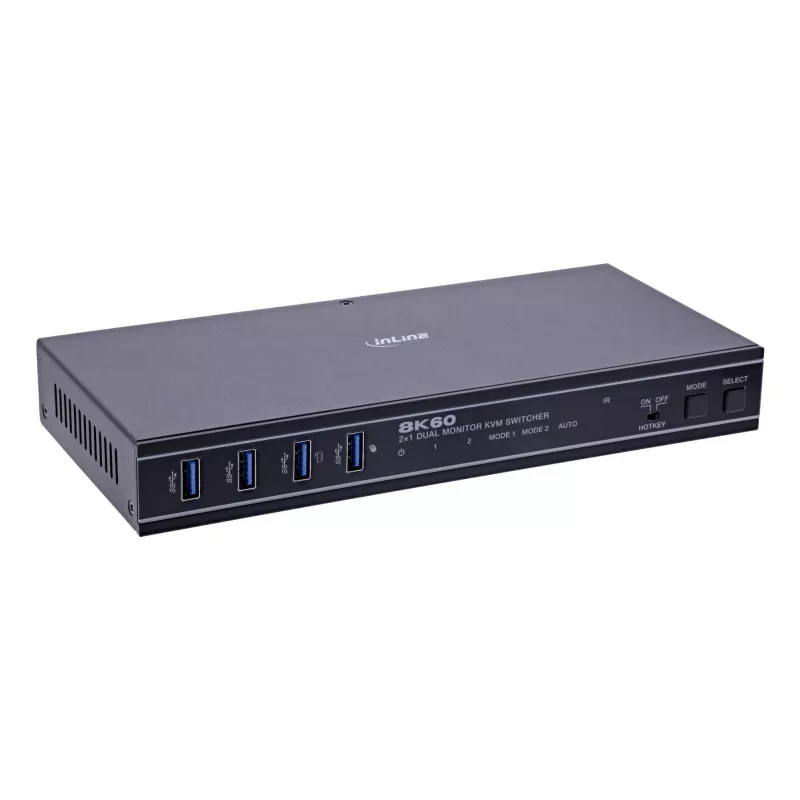

InLine 57885H KVM switch rackmount nero

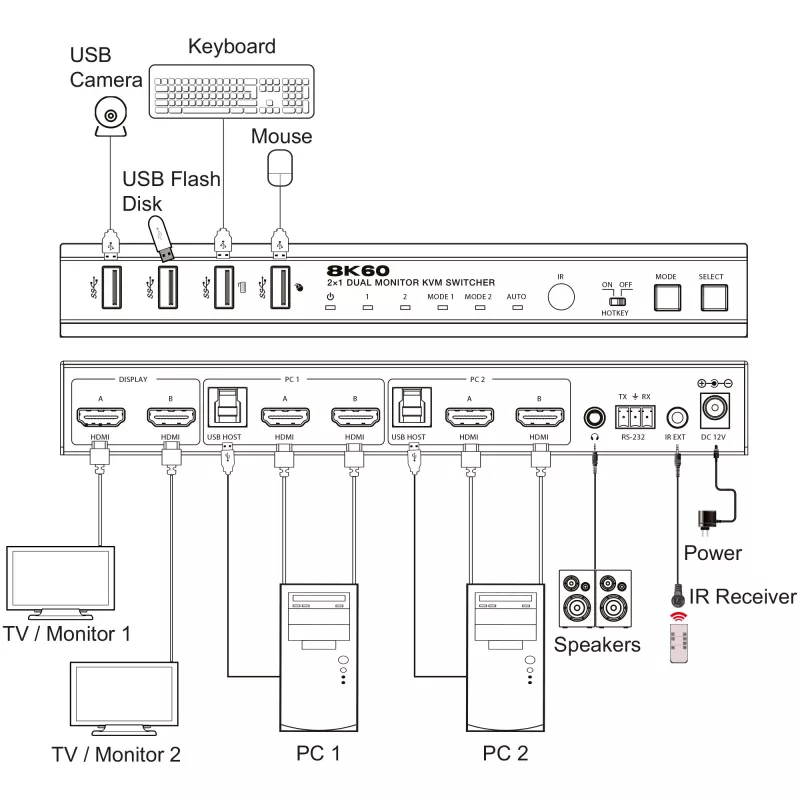

The InLine 57885H is a 2-port KVM switch that lets you control two PCs from one workstation with two monitors, one keyboard, one mouse and multiple USB devices. It supports HDMI 2.1 with resolutions up to 8K@60Hz and offers flexible switching via hotkey, button, IR remote control or RS-232.

Key features

• Control two PCs with one keyboard, mouse and two monitors
• Supports resolutions up to 8K@60Hz, 4K@120Hz/144Hz, 1080p@240Hz
• HDMI 2.1, HDR, HDR10, HDR10+, Dolby Vision, HLG
• Switching via hotkey, button, IR remote control or RS-232
• Integrated USB 3.2 Gen.1 hub with 4 USB-A ports plus 2 hotkey USB ports
• Metal housing, black
• Plug & play, no drivers required

Specifications

• Brand: InLine
• MPN: 57885H
• Product colour: Black
• Number of CPUs: 2
• Number of consoles: 1

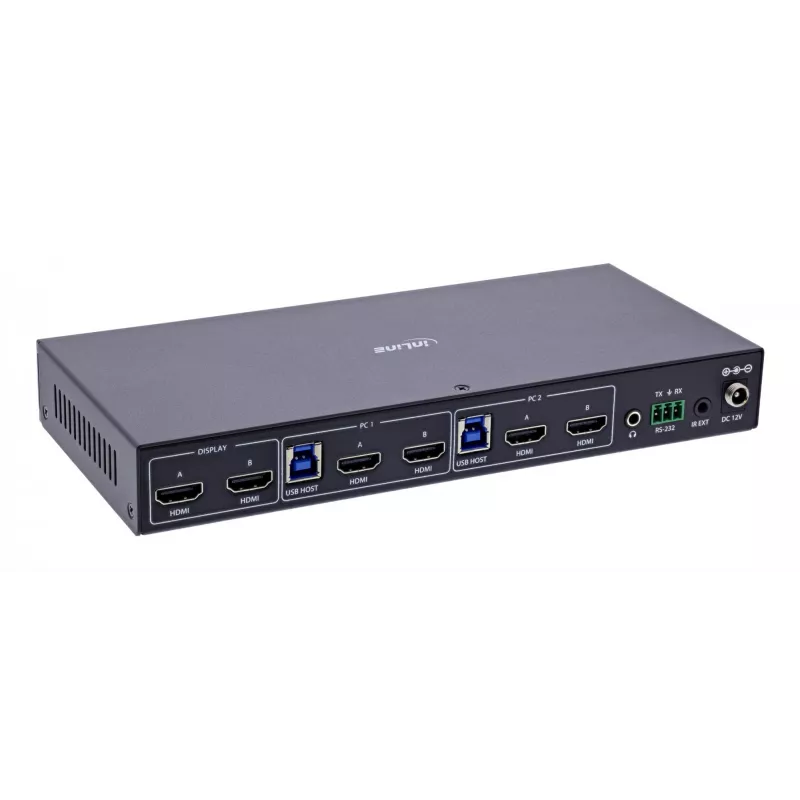

• Video inputs per CPU: 2 × HDMI (type A, 19-pin)
• Video outputs per console: 2 × HDMI (type A, 19-pin)
• USB host inputs per CPU: 2 × USB-B
• USB peripheral outputs per console: 4 × USB 3.2 Gen.1 (USB-A) + 2 × USB 3.2 Gen.1 (USB-A) with hotkey support (switchable to USB 1.1)
• Audio: 1 × 3.5 mm stereo output per console, 1 × 3.5 mm jack per CPU
• Video bandwidth: up to 40 Gb/s
• Colour depth: 8 / 10 / 12 bits
• Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
• HDMI version: HDMI 2.1
• HDCP version: HDCP 2.3
• Audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
• Latency: no video or audio delay
• CEC support: yes
• RS-232: 3-pin terminal connection
• IR EXT: 3.5 mm jack socket
• Housing: metal, black
• Dimensions: 220 × 100 × 30 mm
• Weight: 626 g
• Operating temperature: 0–40 °C
• Storage temperature: –20–60 °C
• Humidity: 20–90% (non-condensing)
• ESD protection: ±8 kV air / ±4 kV contact
• Recommended cable lengths: up to 3 m: 8K / 4K@120Hz; up to 5 m: Ultra HDMI 2.1; up to 10 m: 1080p with standard HDMI cable
• External power supply: 100–240 V AC, 50/60 Hz input; 12.0 V DC, max. 1.0 A, 12.0 W output; average operating efficiency 85.23%; efficiency at low load (10%): 78.53%; power consumption at zero load: 0.09 W

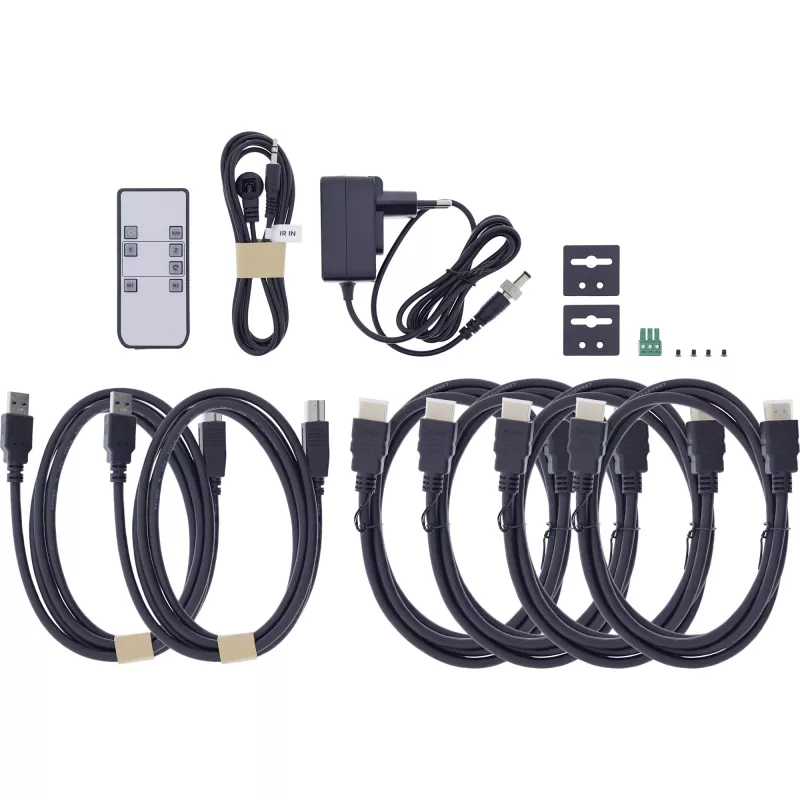

• Scope of delivery: 1 × KVM switch, 1 × IR remote control, 1 × IR receiver cable (1.5 m, 38 kHz), 2 × USB cable (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m), 4 × HDMI cables (1.5 m each, plug/plug), 1 × 12 V/1 A power supply with lock, 1 × 3-pin terminal connection plug, 2 × mounting brackets, 4 × screws (KM3×4), 1 × user manual in German/English
