Cavo SATA III Equip 111901 1m

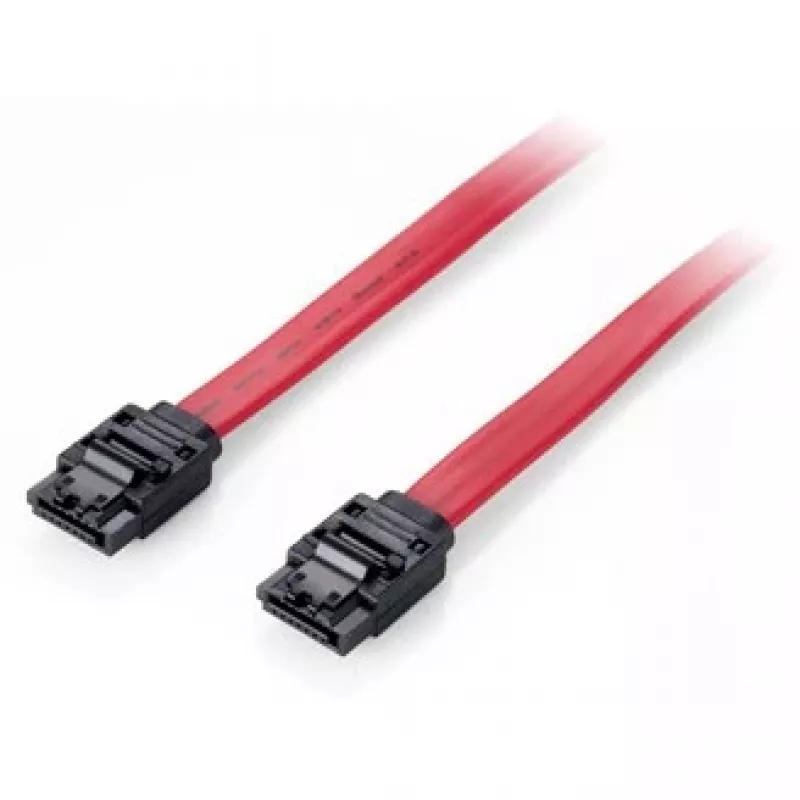

The equip® SATA III Cable Equip 111901 1m is a 1-meter internal SATA III cable with SATA 7-pin connectors on both ends, designed for connecting internal storage devices such as SSDs and HDDs. The cable supports data transfer rates up to 6 Gbps and is built with gold flash contacts and aluminum shielding to ensure reliable, low-error signal transmission. Its red color and compact package (100 mm x 20 mm x 175 mm) make it easy to store and identify inside a PC chassis.

Advantages

The cable offers SATA III performance with up to 6 Gbps transfer speed, gold flash contacts for improved contact reliability, and aluminum shielding to reduce electromagnetic interference. Its 1 m length provides flexibility when routing inside the case, and the lightweight design contributes minimal additional weight.

Suitable for

• Connecting internal SSDs
• Connecting internal HDDs
• Motherboard-to-storage device connections in desktop PCs
• System upgrades and replacements of existing SATA cables

Key specifications

• Cable type: SATA III
• Cable length: 1 m
• Connector 1: SATA 7-pin
• Connector 2: SATA 7-pin
• Maximum data rate: up to 6 Gbps
• Contact plating: gold flash
• Shielding: aluminum
• Product colour: Red
• Weight: 0.0303 kg
• Brand: EQUIP
• MPN: 111901
• EAN: 4015867160329

How to use

Power off the PC and disconnect it from mains. Open the case, locate an available SATA port on the motherboard and an available SATA power connector from the PSU for the storage device. Align the 7-pin SATA connector with the device and motherboard SATA ports and insert gently until it clicks into place. Route the cable to avoid sharp bends and secure inside the case to prevent strain. Close the case and power on the system to verify device detection in BIOS/UEFI or the operating system.

Recommendations

Use the cable for internal connections only. Avoid excessive bending or pulling and keep connectors free of dust. For optimal signal integrity, keep cable length appropriate for your case layout and maintain proper grounding of the PC chassis.
