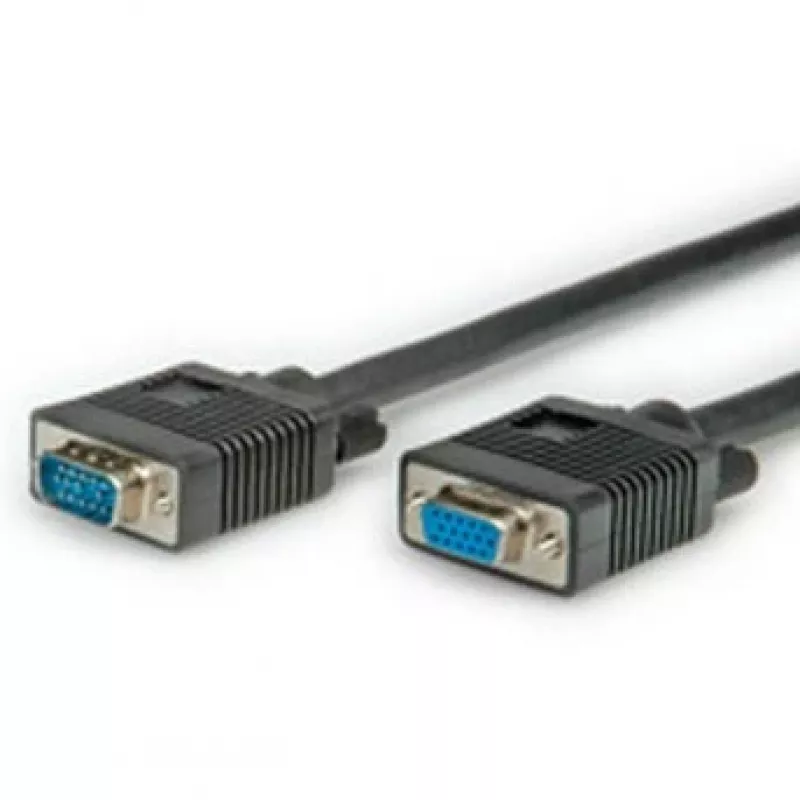

Cavo VGA ROLINE HQ HD15 M - HD15 F 20 m

The ROLINE HQ HD15 M - HD15 F 20 m VGA cable provides a 20-meter connection between a graphics card and a monitor, projector or VGA splitter/amplifier. Designed for long runs while preserving image quality, the cable uses a double-shielded construction and separate coax conductors for RGB signals to reduce interference and signal loss.

Advantages

Double shielding (braided and foil) and three coaxial lines for RGB ensure stable analogue video transmission over extended distances. The cable includes molded HD15 male and female connectors with thumbscrews for secure attachment. Its build minimizes crosstalk and external interference, and the 20 m length allows flexible placement of displays or projectors.

Suitable for

• Connecting a PC graphics card to a monitor or projector
• Extending VGA connections through a VGA splitter or amplifier
• Applications requiring an analogue video cable over a long distance (up to specified limits of the source device)

Key specifications

• Length: 20 m
• Connectors: HD15 male — HD15 female (VGA / D-Sub)
• Cable construction: double-shielded (braided + foil); 3 coax lines for RGB + 7 AWG28 wires
• Colour: Black
• Brand / MPN / EAN: ROLINE / 11.04.5320 / 7611990114474

How to use

Connect the HD15 male end to the graphics card output and the HD15 female end to the monitor, projector or VGA extender input. Tighten the thumbscrews to secure the connection. If using a VGA amplifier or splitter, follow the amplifier manufacturer's instructions to ensure correct signal routing and acceptable maximum distance depending on resolution and source device capabilities.

Recommendations

For best results, use this cable at resolutions and distances supported by your graphics card and display. When extending beyond typical VGA lengths, consider using a compatible VGA amplifier or an alternative digital connection (e.g., DVI/HDMI/DisplayPort) if available to preserve image quality at higher resolutions.
