CAYMON CASY142/B pannello rack 19" 1U con 2 connettori Neutrik SpeakON NL4MP, nero

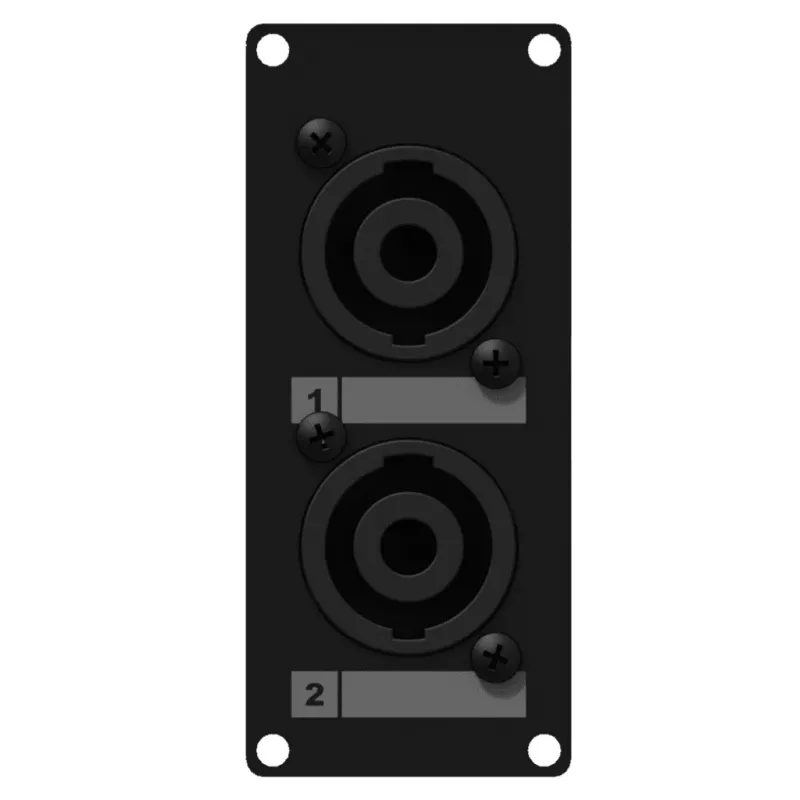

In professional audio installations, a clean and reliable connection point for speaker lines is essential. The CAYMON CASY142/B is a 19-inch rack-mount panel that provides two Neutrik SpeakON NL4MP chassis connectors, allowing you to neatly terminate speaker cables at the rack. This 1U panel is ideal for live sound rigs, fixed installations, and touring racks where quick, secure, and foolproof speaker connections are required.

Key specifications

• Rack unit size: 1U, fits standard 19" equipment racks
• Number of connectors: 2 × Neutrik SpeakON NL4MP (4-pole, male panel mount)
• Panel material: Steel with powder-coated black finish
• Dimensions (W × H × D): 483 × 44 × 10 mm
• Pre-drilled mounting holes for rack screws
• Connector type: SpeakON compatible, ideal for high-current speaker connections

Why choose it

The use of genuine Neutrik NL4MP connectors ensures reliable, low-resistance connections that withstand frequent mating cycles. The steel panel is rugged and resistant to bending, while the black powder coating blends seamlessly into any rack. The panel simplifies cable management by bringing speaker connections to the front or rear of the rack, reducing clutter and improving serviceability.

Ideal use cases

• Live sound reinforcement systems where speaker cables need to be connected to amplifiers or crossovers in a rack
• Fixed installations in venues, houses of worship, or conference centers
• Mobile racks for touring bands or rental companies
• Patch bays for speaker lines in complex audio setups

Good to know

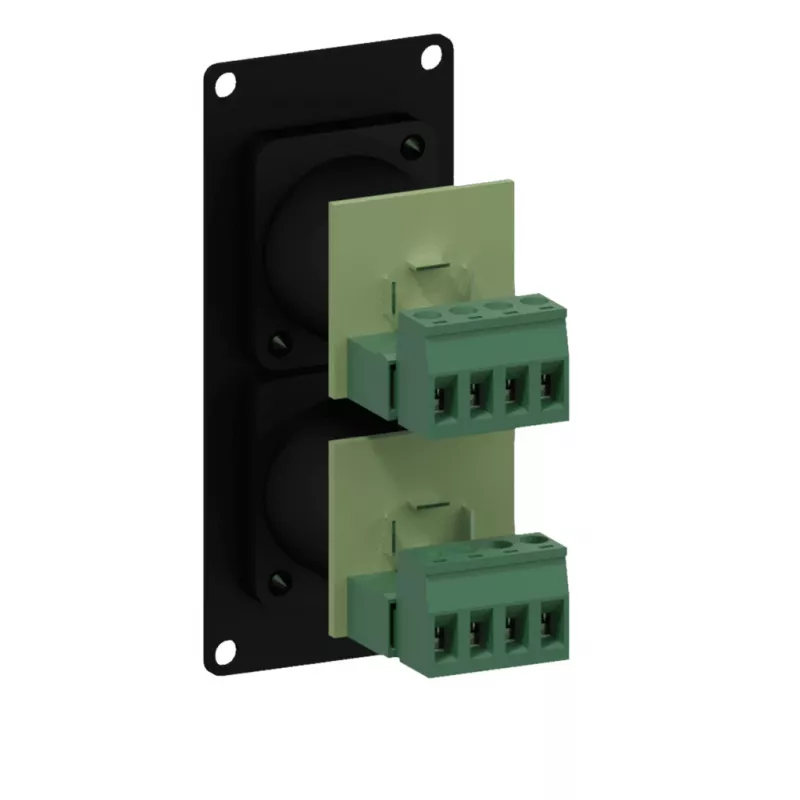

The panel is supplied without connectors wired; you will need to solder or use screw terminals (depending on your wiring preference) to connect the rear of the SpeakON connectors to your internal cabling. The NL4MP connectors are 4-pole, supporting both 2-pole and 4-pole SpeakON plugs. The panel's shallow depth (10 mm) allows installation even in racks with limited rear clearance.
