Equip Patch panel Keystone Cat.6A schermato 24 porte, Nero

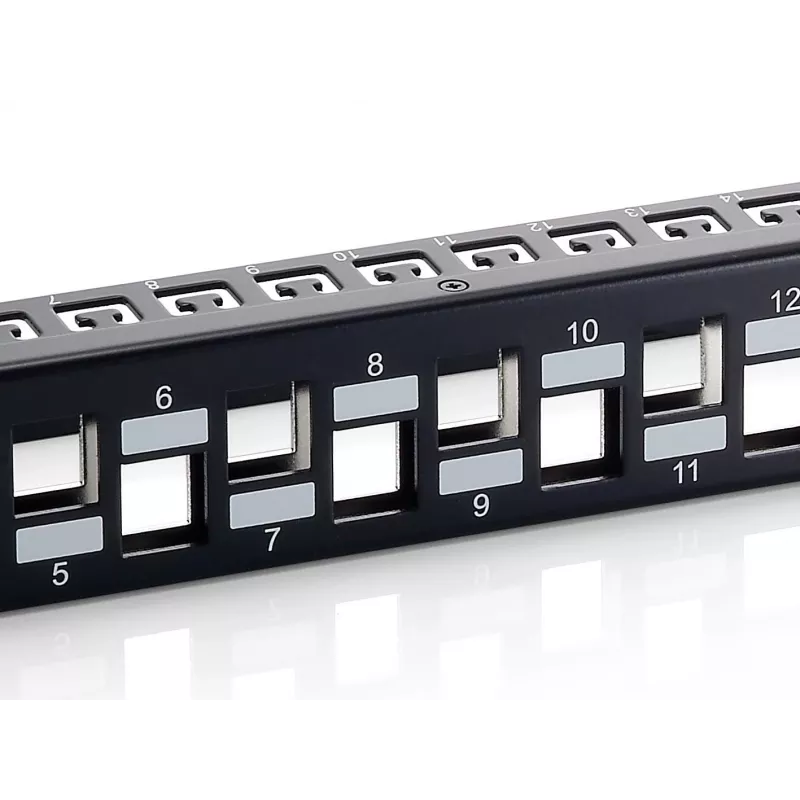

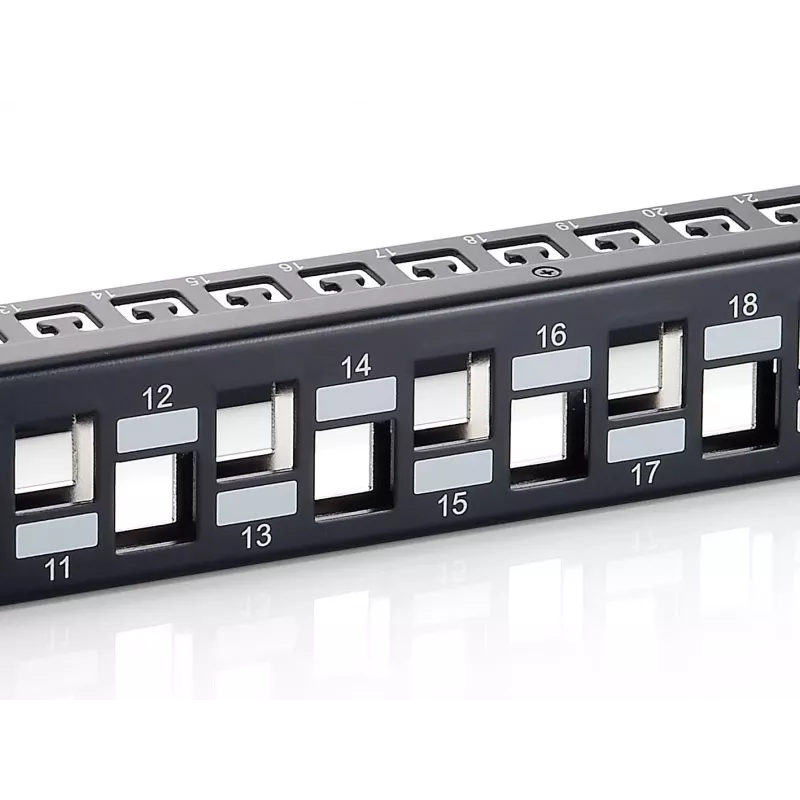

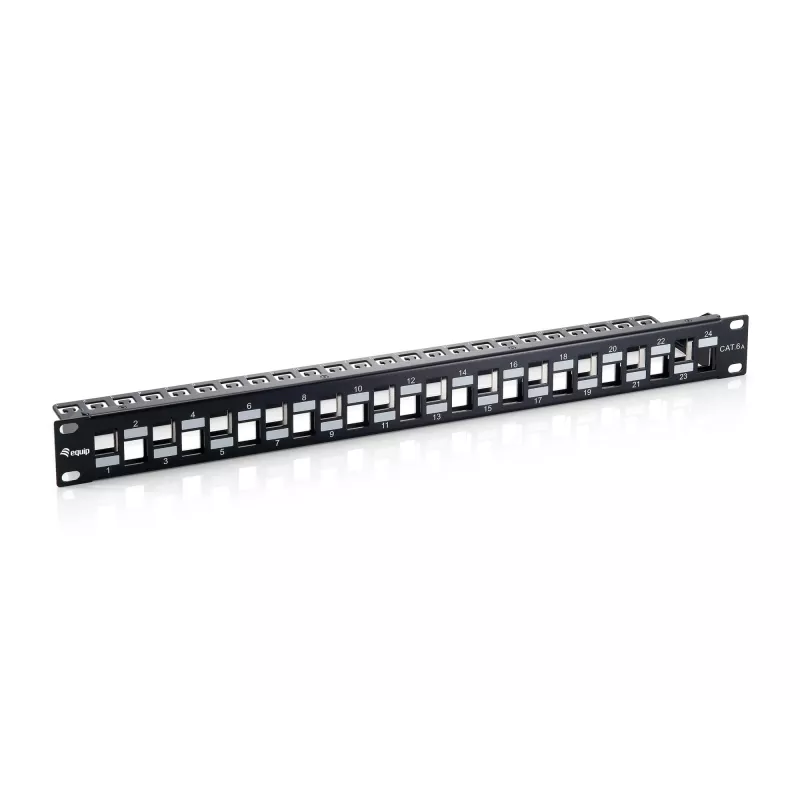

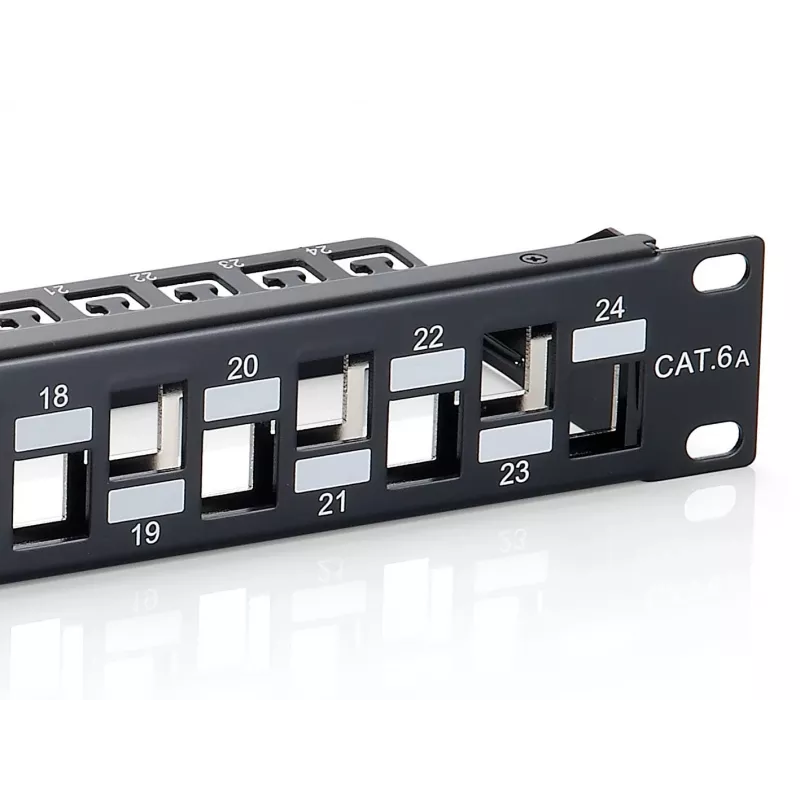

The equip® Patch Panel is a 19" 1U network distribution unit designed for organized cabling and strain relief. It provides 24 shielded keystone ports compatible with Cat.6A installations and is intended to be used with shielded keystone jacks and compatible cables. Each port is marked with a port number for easy identification. The panel has a black finish and compact 1U rack size suitable for standard 19" racks.

Advantages

The patch panel integrates a cable management system for better routing and strain relief and supports both LSA and 110 termination standards. Its 24-port layout enables centralized patching while the numbered ports simplify documentation and maintenance. The shielded design supports improved electromagnetic compatibility when used with shielded jacks and cables.

Suitable for

• Structured copper network installations using Cat6A cabling
• Small and medium-sized server racks requiring 1U patching
• Environments where shielded connections are required for EMI control

Key specifications

• Manufacturer: EQUIP
• Model / MPN: 769324NEUEVERSION
• EAN: 4015867226087
• Ports: 24 shielded keystone ports
• Category support: Cat.6A
• Rack units: 1U (19")
• Product colour: Black
• Dimensions (W × H × D): 482 mm × 44.5 mm × 90 mm
• Weight: 0.85 kg

How to use

Mount the patch panel in a standard 19" rack occupying 1U of space. Terminate shielded keystone jacks or keystone modules into the front ports and perform cable termination at the rear following LSA or 110 wiring standards. Connect patch cords from the front keystone ports to network equipment. Label or document port numbers as needed to match your network layout.

Recommendations

For best performance, use shielded keystone jacks and shielded Cat.6A cables matched to the patch panel and ensure proper grounding of the shield to maintain EMI protection.
