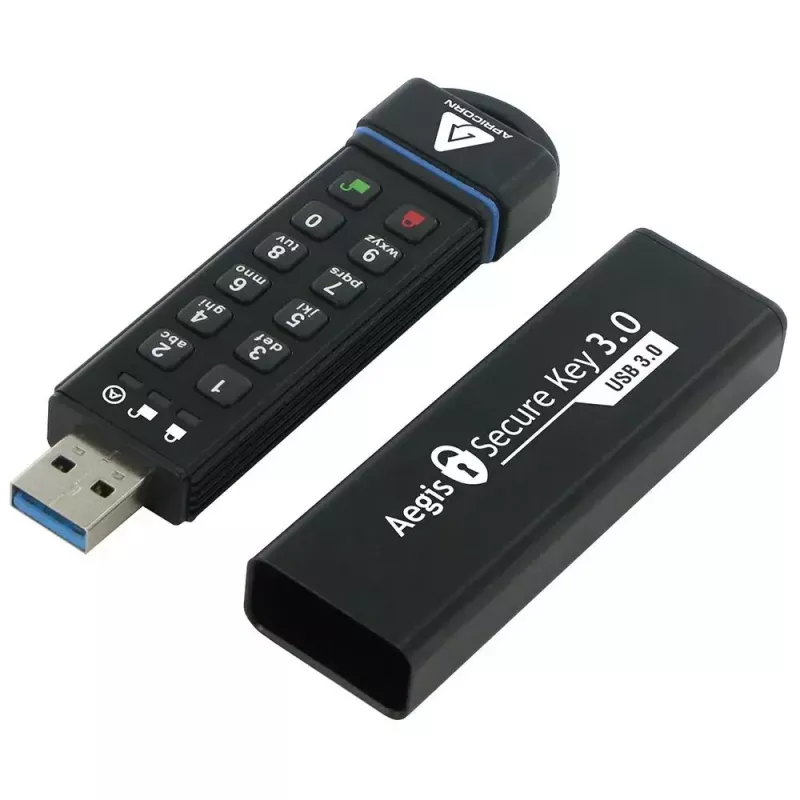

Chiavetta USB Apricorn 120 GB USB Type-A Aegis Secure Key 3.0

The Apricorn Aegis Secure Key 3.0 is a USB Type-A flash drive with 120 GB capacity and hardware-based, on-the-fly AES 256-bit XTS encryption. It features an onboard alphanumeric keypad for PIN-authenticated access (7–16 digits), a rugged aluminum housing, and software-free operation making it compatible with Windows, Mac, Linux and embedded systems. The drive supports USB 3.2 Gen 1 (USB 3.0) speeds and includes security features such as a brute-force self-destruct option, sealed epoxy protection of internal components, and USB controller lockdown.

Advantages

This drive provides military-grade 256-bit AES XTS hardware encryption and PIN-only access via an integrated keypad, preventing software and hardware key-logging. It is designed with tamper-evident, crush-resistant aluminum and epoxy-sealed internals for protection against physical attacks. The device operates without software or admin rights, supports independent User and Admin PINs, includes a drive reset function that destroys data and regenerates encryption keys, and offers unattended auto-locking. IP58 (pending) ingress protection and immunity to BadUSB exploits are additional security benefits.

Suitable for

• Transporting and storing confidential corporate or government files
• Field use where rugged, water- and dust-resistant storage is required
• Cross-platform environments (Windows, macOS, Linux, embedded systems)
• Environments where software installation or admin rights are restricted

Key specifications

• Model: Aegis Secure Key 3.0 (ASK3-120GB)
• Capacity: 120 GB
• Interface: USB Type-A, USB 3.2 Gen 1 (USB 3.0)
• Encryption: AES 256-bit XTS hardware encryption (on-the-fly)
• Authentication: Onboard alphanumeric keypad, 7–16 digit PIN; independent User and Admin PINs
• Durability: Extruded aluminum housing, epoxy-sealed internals; IP58 certification pending
• Security features: FIPS 140-2 Level 3 pending validation, brute-force self-destruct, locked USB controller, BadUSB immunity
• Form factor and weight: Cap form factor, 0.046 kg
• Compatibility: Software-free; compatible with Windows, Mac, Linux and embedded systems

How to use

Set up the Aegis Secure Key 3.0 by creating User and Admin PINs directly on the device using the onboard keypad; no software installation or admin rights are required. Enter the chosen PIN on the keypad to unlock the drive before connecting it to a computer or device. When finished, unplug the drive or allow it to auto-lock after the configured inactivity period. If the User PIN is forgotten, the Admin PIN can clear the User PIN; alternatively use the drive reset to destroy data and generate a new encryption key for reuse.

Recommendations

Store the Admin PIN separately from the drive, use strong unpredictable PINs within the 7–16 digit range, and regularly back up critical data elsewhere since the drive’s reset or brute-force defense permanently destroys stored data.
