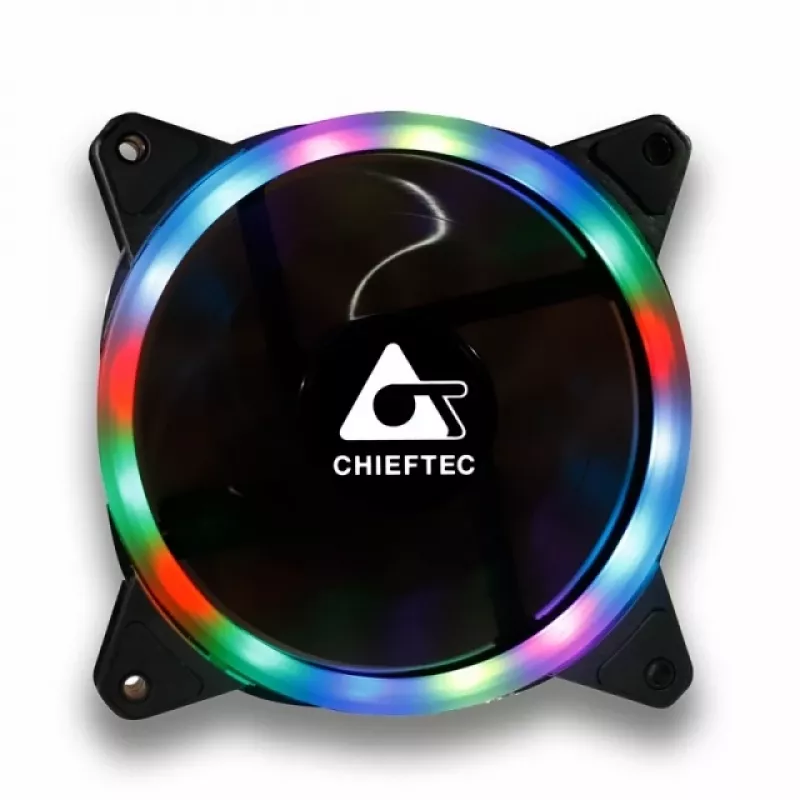

Chieftec AF-12RGB sistema di raffreddamento per computer ventola 12 cm nero 1 pezzo

The Chieftec AF-12RGB is a 120 mm computer cooling fan with 16 addressable LEDs that provide extensive RGB lighting effects. Designed for integration with +5V addressable RGB systems when used with compatible CHIEFTEC control boards, the fan features seven specially shaped blades for low-noise operation and white blades to ensure even illumination. The AF-12RGB supports conventional motherboard RGB ecosystems when paired with the DF-908 control board and is guaranteed-compatible with CHIEFTEC/CHIEFTRONIC control units DF-906 and DF-908.

Advantages

The fan offers addressable RGB lighting with 16 individually controllable LEDs for a wide range of effects, quiet performance due to decoupling and a seven-blade design, and uniform light distribution courtesy of white fan blades. It fits standard 120 mm mounting and matches common +5V addressable RGB control standards when used with the specified CHIEFTEC control units.

Suitable for

• PC cases and chassis that accept 120 mm fans
• Gaming systems and enthusiast builds requiring RGB lighting
• Cooling setups where low-noise fans are preferred

Key specifications

• Fan diameter: 120 mm
• LEDs: 16 addressable RGB LEDs
• Speed: up to 1200 RPM
• Colour: Black with white fan blades for uniform illumination
• Compatibility: +5V addressable RGB when used with CHIEFTEC DF-908; guaranteed-compatible with CHIEFTEC/CHIEFTRONIC DF-906 and DF-908

How to use

Mount the AF-12RGB in a 120 mm fan position in your PC case using standard screws. Connect the fan power and the addressable RGB connector to the CHIEFTEC DF-906 or DF-908 control board, or to a compatible +5V addressable RGB header when using the DF-908 as specified. Configure lighting effects through the compatible motherboard RGB software (ASUS Aura Sync, MSI Mystic Light Sync, ASRock Polychrome Sync, Gigabyte RGB Fusion) when the DF-908 controller is used.

Recommendations

Use the AF-12RGB with the CHIEFTEC DF-908 control board to ensure full addressable RGB function and guaranteed compatibility. For quieter operation, enable any available fan control profiles in your motherboard or controller to keep RPMs near the lower end when full cooling capacity is not required.
