Cimco 187120 Terminale a crimpare parzialmente isolato, 1,5 mm², nero, 100 pezzi

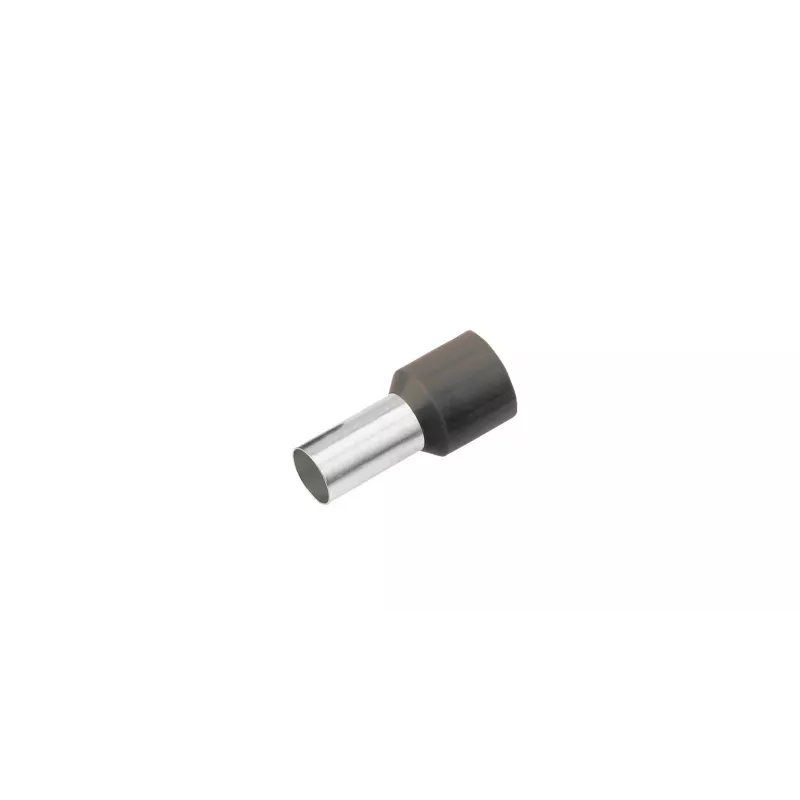

The Cimco 187120 wire ferrule stands out with its funnel-shaped entry, which guides stranded conductors smoothly into the tin-plated copper sleeve. This design reduces the chance of bent strands during insertion and makes the ferrule suitable for automated processing.

Highlights

• Partially insulated with a black polypropylene collar
• Tin-plated electrolytic copper for corrosion resistance
• Funnel-shaped entry for easy wire insertion
• Pack of 100 pieces

In daily use

These ferrules are used to terminate stranded wires before connection in terminal blocks or screw clamps. The partial insulation leaves the metal barrel exposed for a secure crimp, while the collar provides strain relief and protects the wire insulation.

Full specifications

• Wire cross-section: 1.5 mm²
• Insulation type: Partially insulated
• Insulation colour: Black
• Ferrule material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Metal tube length (L1): 8 mm
• Total length (L2): 14.5 mm
• Inner diameter (d1): 1.8 mm
• Outer diameter (d2): 2.1 mm
• Insulation collar diameter (d3): 3.5 mm
• Temperature range: -40°C to +105°C
• Voltage rating: Up to 600 V
• Standard compliance: DIN 46228 Part 4
• Quantity per pack: 100 pieces

Final note

A reliable choice for consistent crimping in control cabinets and industrial wiring.
