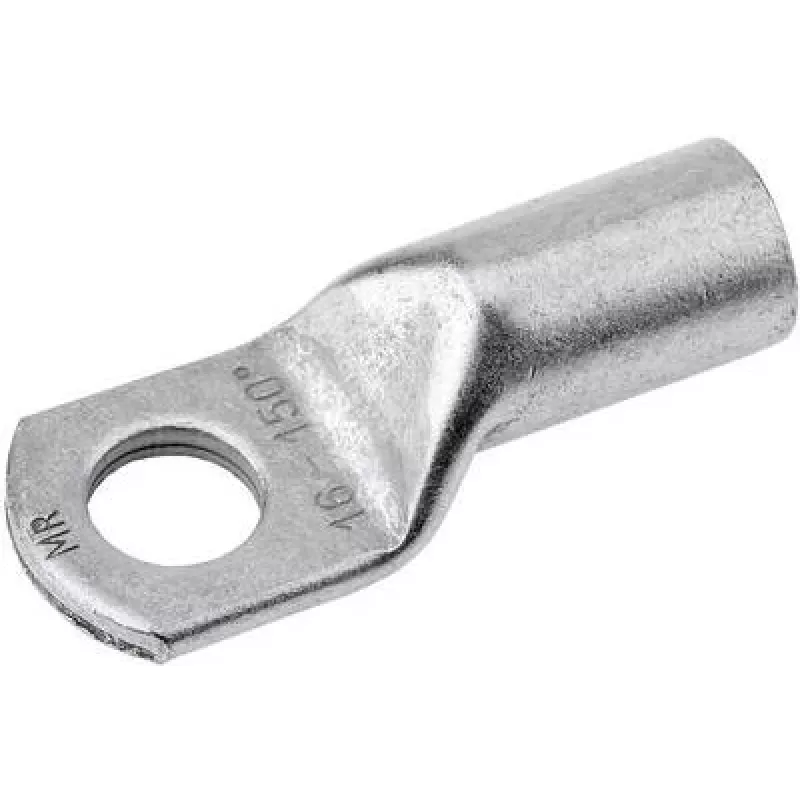

Cimco capocorda tubolare 180° M16 95 mm² foro Ø 16,5 mm 180764

This tubular cable lug provides a permanent, low-resistance connection for copper conductors up to 95 mm². Its 180° straight barrel and M16 stud hole make it ideal for high-current terminations in switchgear, control cabinets, and electrical distribution systems. The tinned electrolytic copper construction resists corrosion and ensures excellent conductivity even under demanding conditions.

Advantages

The lug is manufactured from high-purity electrolytic copper (E-Cu) and galvanically tinned to protect against oxidation and chemical attack. The tinning also simplifies soldering if required. The hexagonal crimping profile guarantees a gas-tight, mechanically robust joint that maintains low contact resistance over the lifetime of the installation. The 180° orientation allows direct, space-saving connection to busbars or terminals without bending the conductor.

Suitable for

• Terminating stranded copper conductors in power distribution panels
• Connecting cables to busbars, circuit breakers, and switchgear
• Industrial machinery and control cabinet wiring
• Earthing and bonding applications requiring a reliable lug
• Installations where corrosion resistance is critical (e.g., humid or aggressive environments)

Key specifications

• Conductor cross-section: 95 mm²
• Bolt size: M16 (hole diameter 16.5 mm)
• Connection angle: 180° (straight)
• Material: Electrolytic copper, tinned
• Standard: DIN 46235
• Operating temperature: -55 °C to +150 °C
• Number of mounting holes: 1
• Insulation: Uninsulated

Recommendations

Use a hexagonal crimping tool matched to the conductor size and follow the manufacturer's instructions for die selection. Ensure the conductor is fully inserted into the barrel before crimping. For outdoor or harsh environments, apply additional insulation or heat-shrink tubing over the crimped area.
