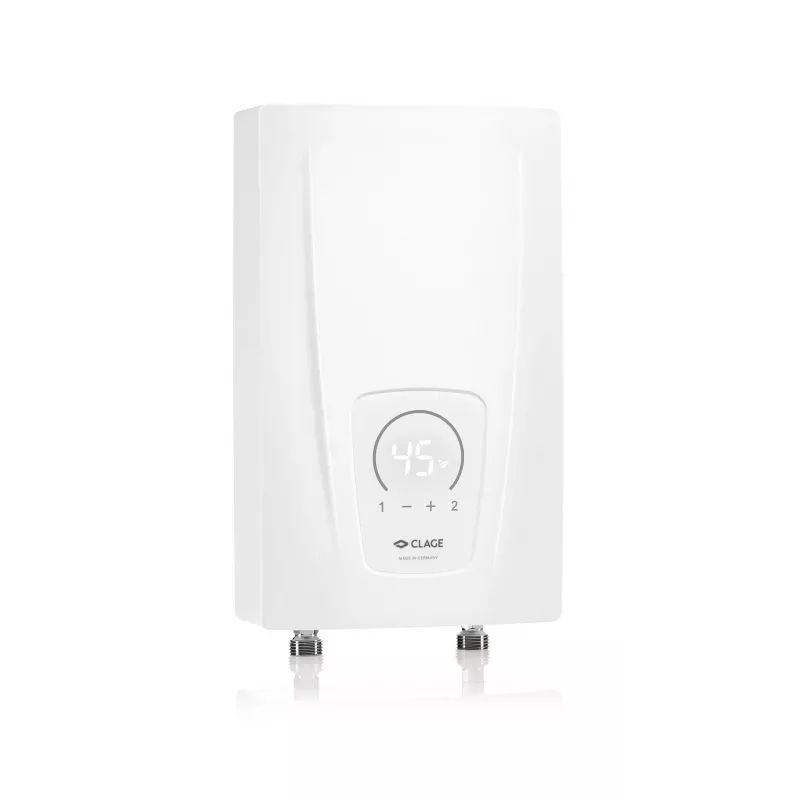

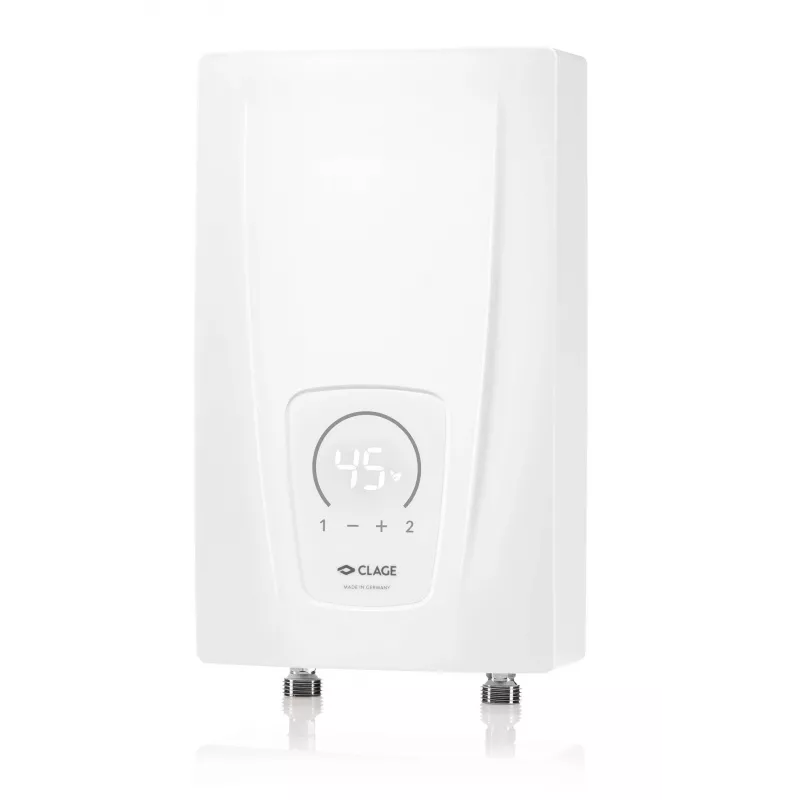

CLAGE CEX ELECTRONIC MPS scaldabagno istantaneo 11-13,5kW 400V

The CLAGE CEX ELECTRONIC MPS is a high-performance instantaneous electric water heater designed for efficient and continuous hot water supply. With selectable power output of 11 kW or 13.5 kW at 400V three-phase, this compact unit is ideal for undersink or wall-mounted installation, serving kitchen sinks, washbasins, and showers.

Advantages

Energy-efficient A-class operation with IES® bare wire heating system ensures rapid heating and minimal standby loss. The intuitive LCD touch display with memory buttons allows precise temperature setting from 20°C to 60°C. Safety features include overheat protection and air bubble detection, while IP25 rating guarantees splash-proof durability.

Suitable for

• Kitchen sink and washbasin
• Shower applications
• Residential and light commercial use

Key specifications

• Power: 11 kW / 13.5 kW selectable
• Voltage: 400V (3-phase)
• Energy efficiency class: A
• Control: Electronic with touch display
• Temperature range: 20°C to 60°C
• Max flow rate: 5 l/min (11kW) / 6.5 l/min (13.5kW) at 38°C
• Protection class: IP25
• Water connection: G 1/2"
• Standby power: <0.5W

Recommendations

For optimal performance, ensure proper electrical supply (400V 3-phase) and water pressure above 0.2 MPa. Professional installation recommended.
