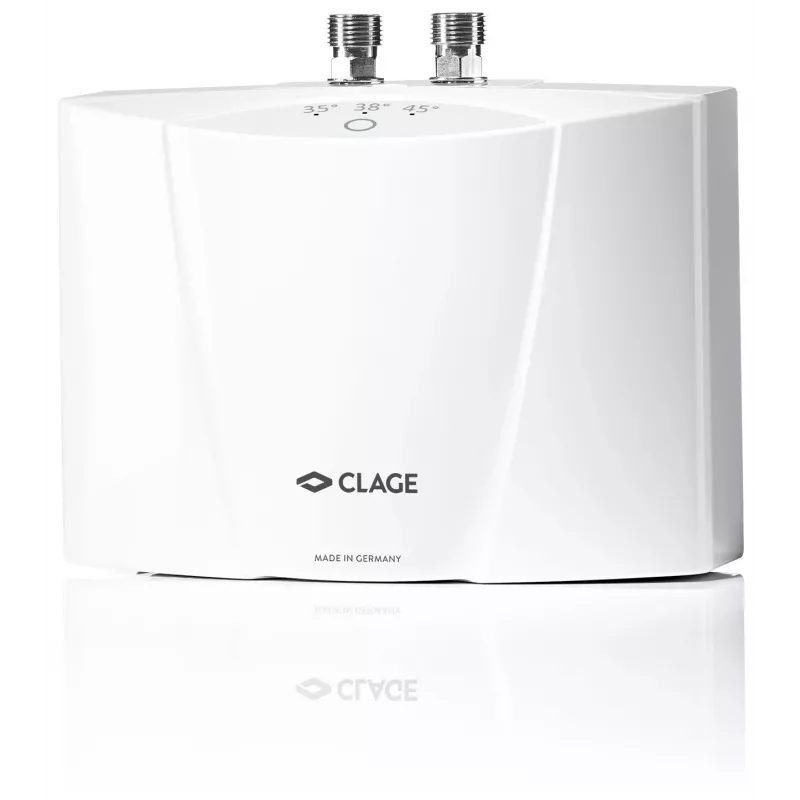

CLAGE MCX 3 scaldabagno istantaneo elettronico mini, 3,5 kW, 230 V, orizzontale, bianco

The CLAGE MCX 3 is a compact electronic mini-instantaneous water heater designed for point-of-use applications such as hand wash basins and guest toilets. With a nominal power of 3.5 kW and a sleek white design, it provides instant hot water on demand without the need for a storage tank. The unit is intended for horizontal under-sink or wall-mounted installation and features an IES® bare wire heating system for efficient performance.

Advantages

Instant hot water without waiting; compact size saves space; energy-efficient operation with selectable temperature settings; easy installation under the sink; reliable IES® heating technology.

Suitable for

• Hand wash basins in bathrooms and guest toilets
• Small kitchens or utility rooms
• Point-of-use hot water supply where tankless heating is preferred

Key specifications

• Nominal Power: 3.5 kW
• Nominal Voltage: 230 V
• Nominal Current: 15.2 A
• Required Cable Cross-Section: 1.5 mm²
• Energy Efficiency Class: A
• Protection Class: IP24
• Temperature Settings: 35°C, 38°C, 45°C (selectable)
• Minimum Flow Rate for Activation: 1.5 l/min
• Maximum Flow Rate: 2.0 l/min (at 38°C)
• Water Connection: G 3/8"
• Max. Operating Pressure: 10 bar
• Heating System: IES® Bare Wire Heating System
• Control Type: Electronic with Sensor Buttons
• Installation Type: Under-sink, Wall-mounted
• Mounting Orientation: Horizontal (recommended)
• Colour: White

Recommendations

For optimal performance, ensure the unit is installed by a qualified professional and that the electrical supply matches the specifications. The MCX 3 is ideal for providing hot water to a single sink or basin; for multiple outlets, consider a larger model.
