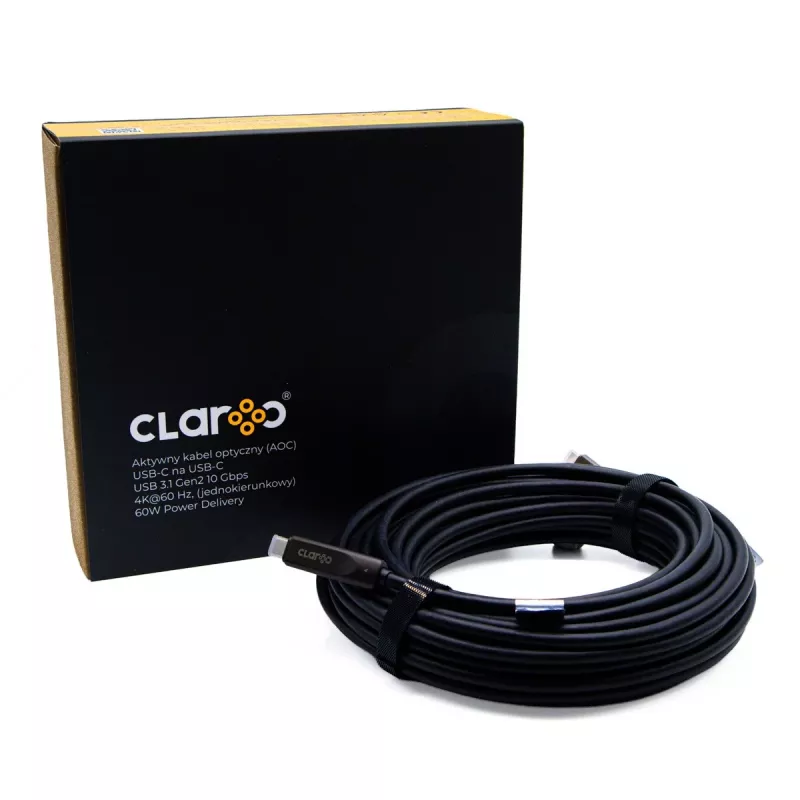

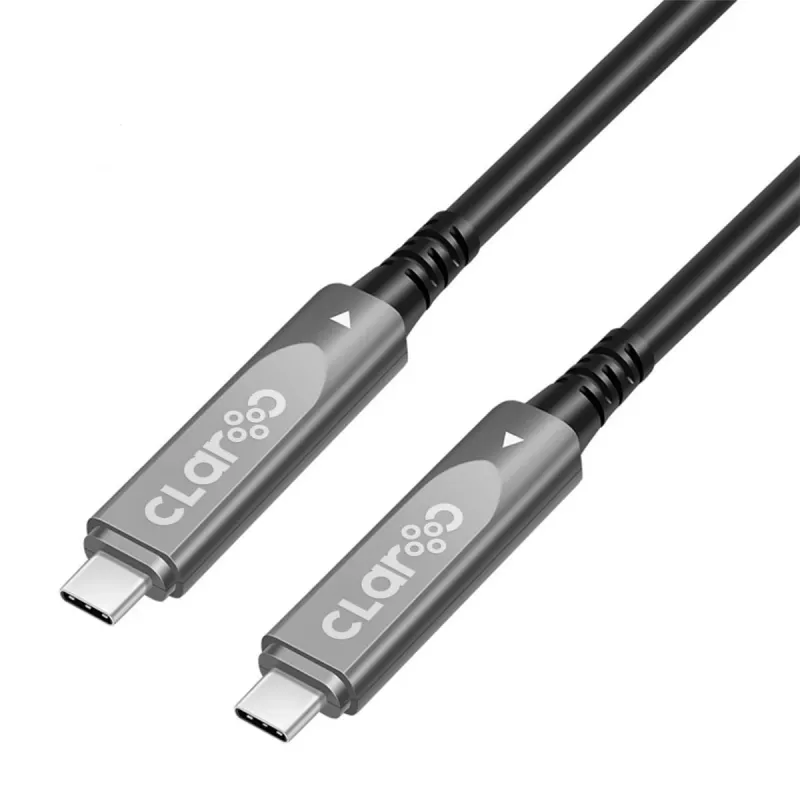

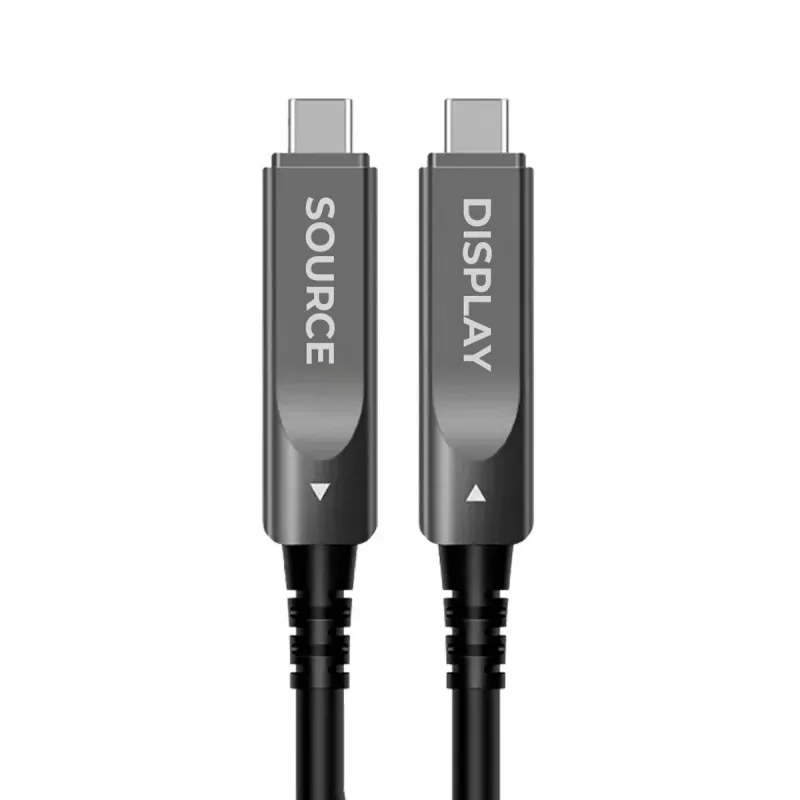

Claroc Cavo ottico attivo USB-C 4K@60Hz 10 m

The Claroc USB-C 4K@60Hz 10 m is a high-performance active optical cable (AOC) designed for extending USB-C connections up to 10 meters without signal degradation. It supports USB 3.2 Gen 2 data transfer rates of 10 Gbps and 4K video at 60 Hz, making it ideal for professional AV setups, digital signage, and high-resolution displays. With Power Delivery up to 100W, it can charge laptops and other devices while transmitting data and video simultaneously.

Advantages

This cable offers reliable, high-speed connectivity over long distances, eliminating the need for signal boosters or repeaters. Its active optical technology ensures immunity to electromagnetic interference, providing stable performance in demanding environments. The slim, flexible design simplifies cable management, and the plug-and-play functionality ensures easy installation without additional drivers.

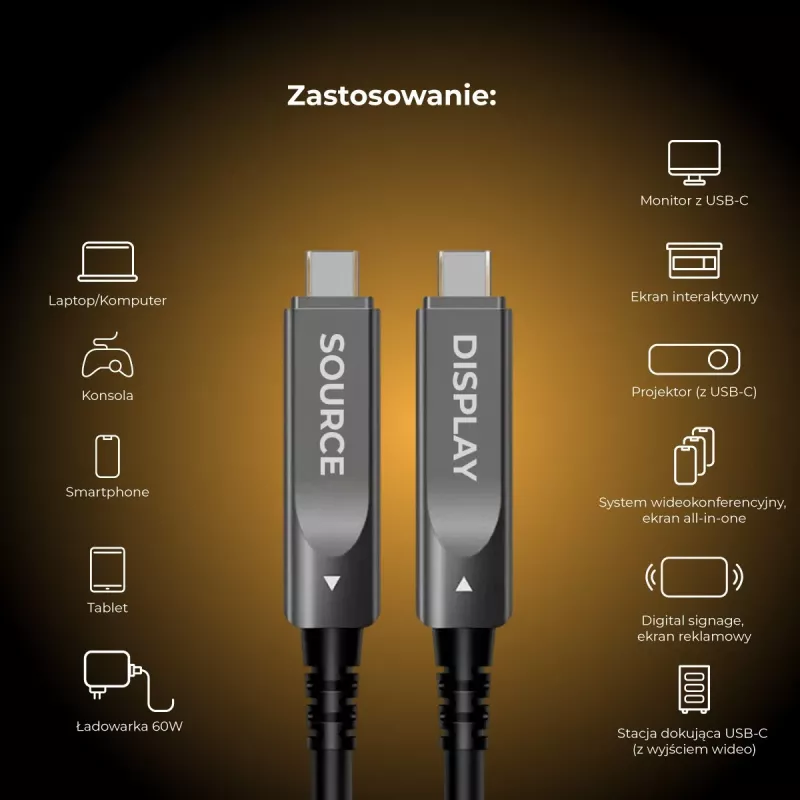

Suitable for

• Connecting USB-C laptops to 4K monitors or projectors up to 10 meters away
• Digital signage and conference room setups requiring long cable runs
• High-resolution video streaming and data transfer in professional AV environments
• Charging laptops and devices via USB Power Delivery while using data and video

Key specifications

• Connector Type (Host): USB-C Male
• Connector Type (Device): USB-C Male
• Cable Type: Active Optical Cable (AOC)
• USB Standard: USB 3.2 Gen 2
• Data Transfer Rate: 10 Gbps
• Video Resolution Support: 4K (3840 x 2160) @ 60 Hz
• Power Delivery: Up to 100W (20V/5A)
• Cable Length: 10 meters (32.8 ft)
• Directional: Yes (Source/Host and Display/Device specific)
• Backward Compatibility: USB 3.0, USB 2.0
• Jacket Material: PVC

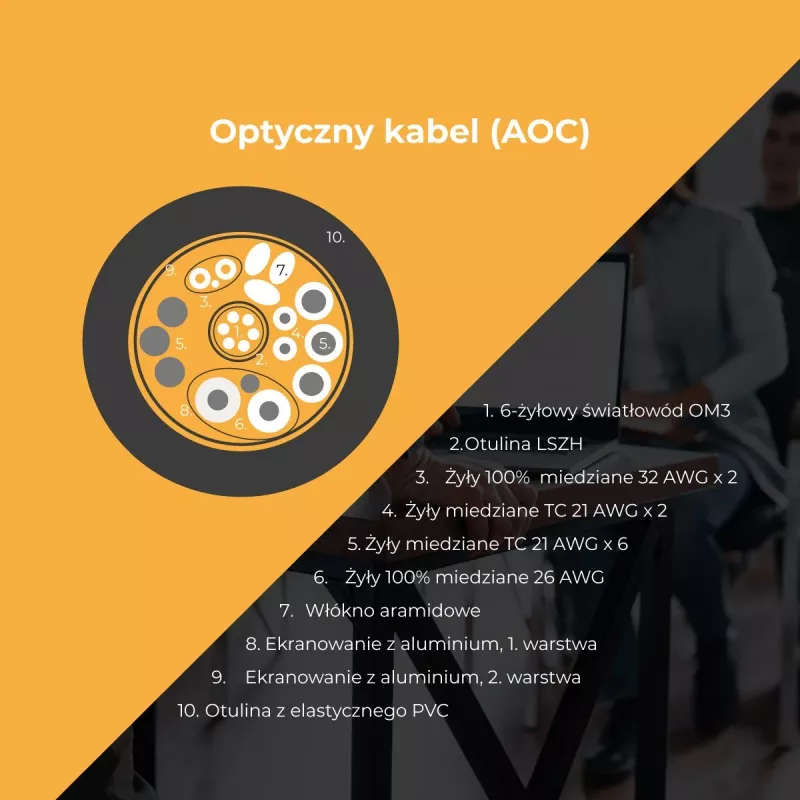

• Core Material: Fiber Optic (Data), Copper (Power)
• Color: Black
• Plug & Play: Yes
• HDCP Support: HDCP 2.2
• Audio Support: Yes (via USB-C Alt Mode)

Recommendations

For optimal performance, ensure that the cable is oriented correctly with the source and device ends as marked. This cable is not recommended for use with USB-C hubs or adapters that may limit power delivery or data throughput. Compatible with devices supporting USB-C Alt Mode for video output.
