DisplayPort Active Repeater CLUB3D CAC-1007 4K120Hz HBR3

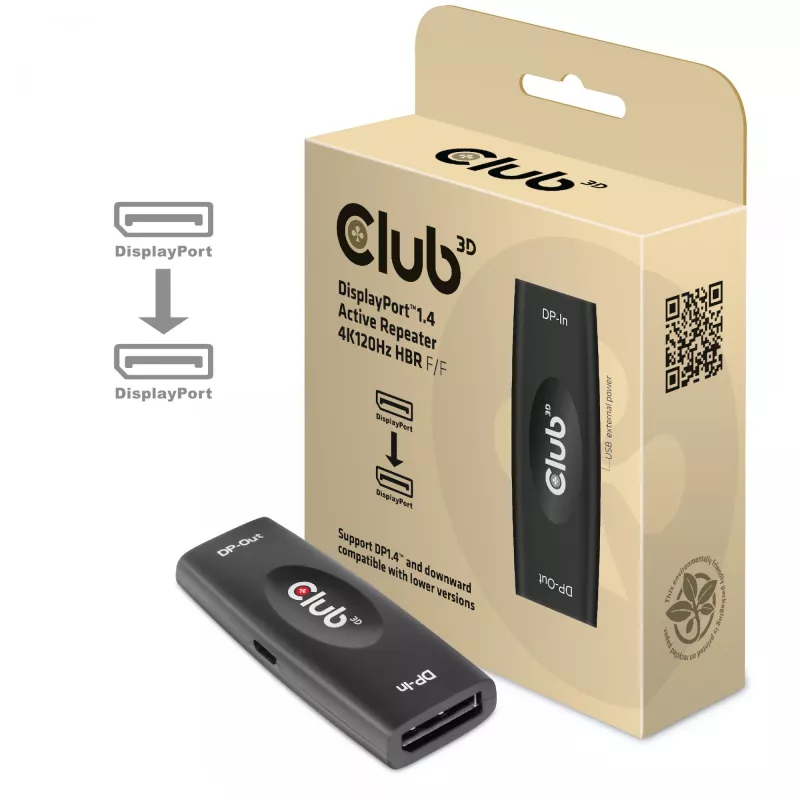

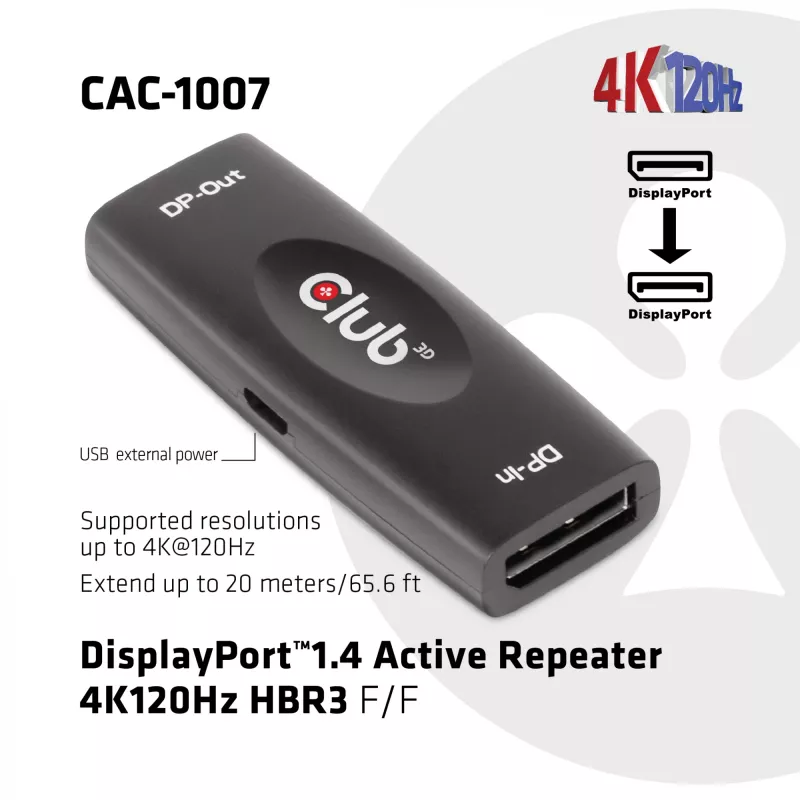

The Club 3D CAC-1007 is a DisplayPort 1.4 active repeater designed to extend a DisplayPort signal from a host PC to a monitor or projector up to a total of 20 metres (10 m input + 10 m output) using 28AWG or thicker cable. It supports HBR3 bandwidth and can deliver up to 4K at 120Hz when used within the specified cable length. The unit is powered via the included Micro‑USB to USB Type‑A cable and features DisplayPort connectors on both ends in a compact black housing.

Advantages

This active repeater enables longer DisplayPort runs without degrading video quality by boosting the DP 1.4 signal and maintaining HBR3 performance. It supports high-resolution, high-refresh-rate displays (up to 4K120Hz) when used with suitable cables, and its plug-and-play design requires only external USB power via the supplied cable. The small form factor and standard DisplayPort connectors make it compatible with most PCs and monitors that use DP interfaces.

Suitable for

• Extending DisplayPort connections between a PC and a monitor or projector
• Multi-room AV setups and short-distance signal distribution (up to 20 m total)
• Professional workstations requiring 4K at 120Hz over compliant cables

Key specifications

• Standard: DisplayPort 1.4 (active repeater)
• Maximum supported resolution: up to 4K@120Hz (within specified cable lengths)
• Bandwidth: HBR3
• Cable compatibility: 28AWG or thicker
• Maximum extension: 20 metres total (10 m in + 10 m out)

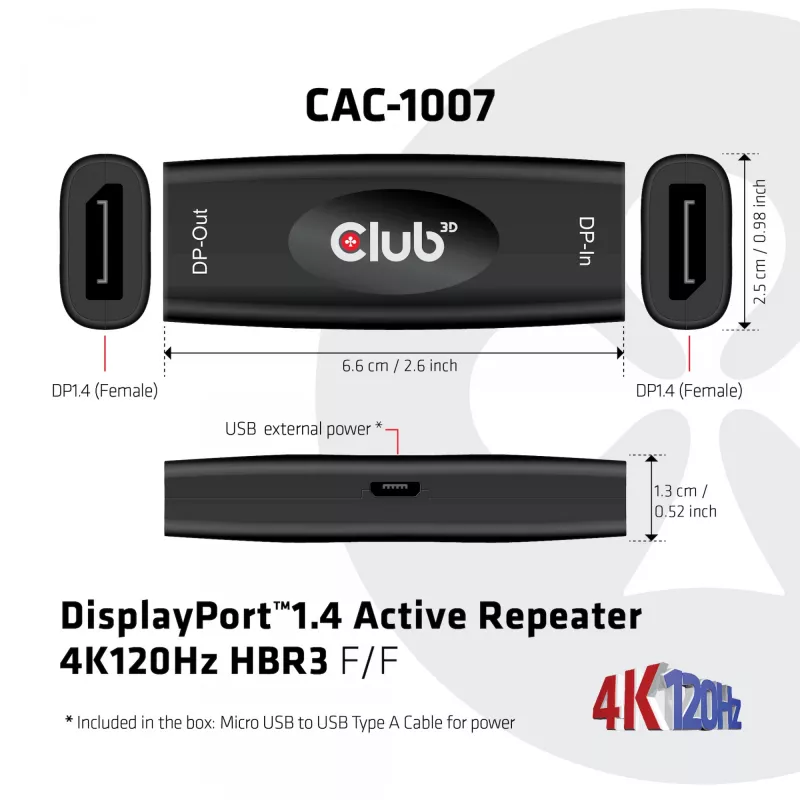

• Connectors: DisplayPort (input) and DisplayPort (output)
• Power: via included Micro‑USB to USB Type‑A cable
• Colour: Black

How to use

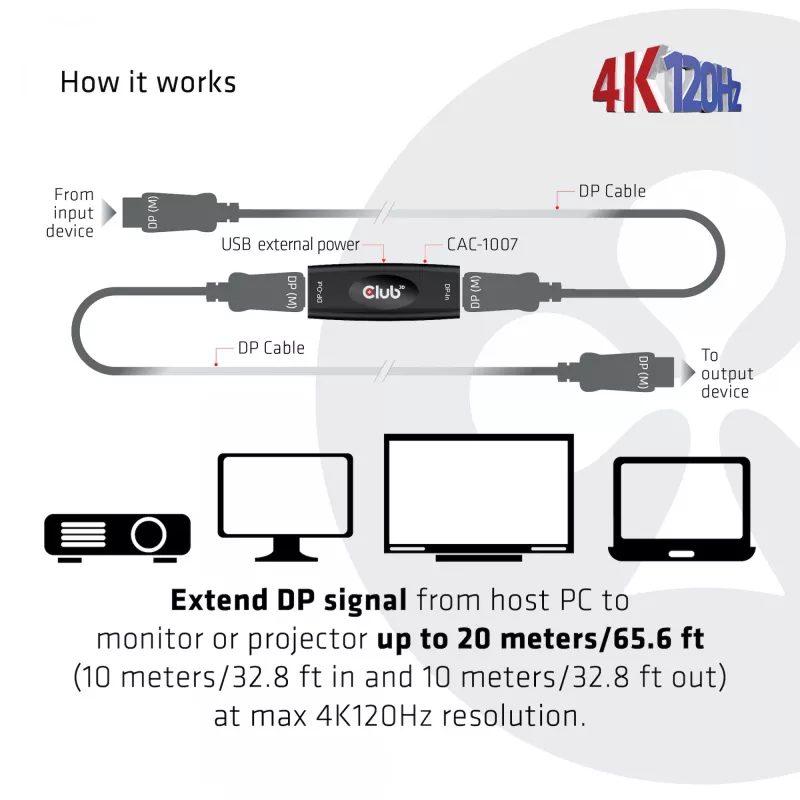

Connect the repeater’s DisplayPort input to the host PC’s DisplayPort output and connect the repeater’s DisplayPort output to the monitor or projector using 28AWG or thicker DisplayPort cables. Plug the supplied Micro‑USB to USB Type‑A cable into the repeater and a USB power source to provide the required external power. Ensure the total cable run does not exceed 20 metres (10 m before and 10 m after the repeater) to maintain up to 4K@120Hz performance.

Recommendations

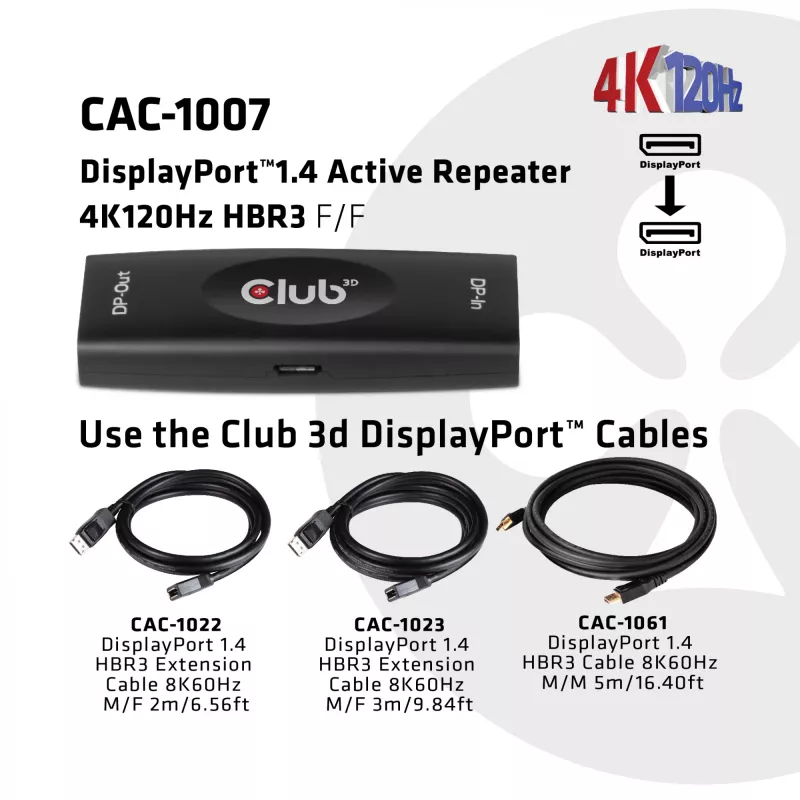

Use high-quality 28AWG or thicker DisplayPort cables and a stable 5V USB power source. For maximum resolution and refresh rate, keep each cable run within 10 metres and verify monitor and GPU support for 4K@120Hz.
