Connettore coassiale DeLOCK 90339

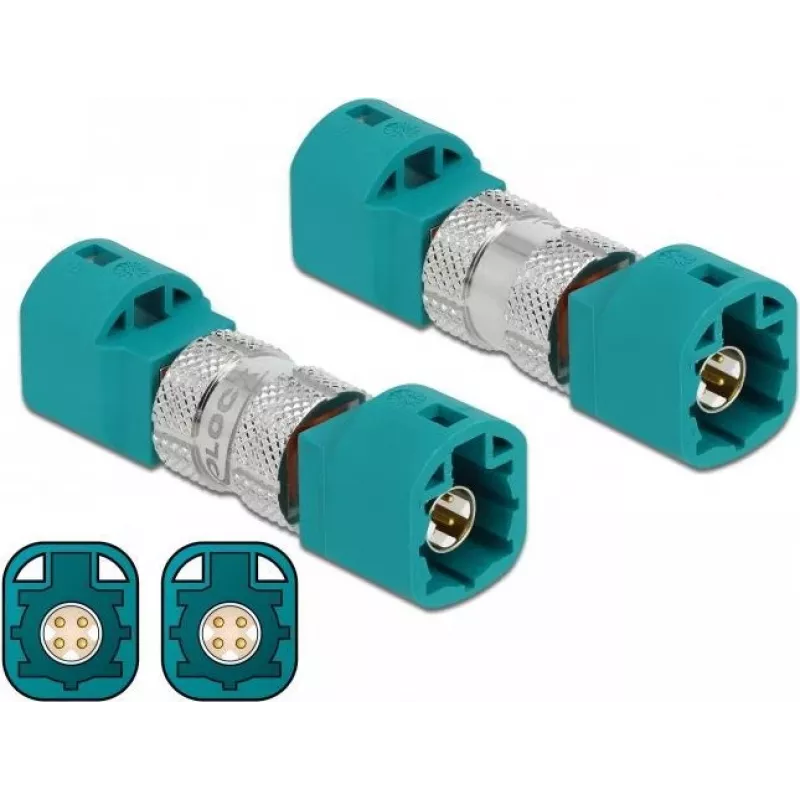

The DeLOCK 90339 coaxial connector is designed for connecting electronic components in vehicles and other electronic systems. It features two HSD Z male connectors for high-speed data transmission and compact dimensions (14.3 mm width × 42.5 mm depth × 12 mm height). Each pack contains two connectors to support installation or replacement needs.

Advantages

The compact housing allows easy integration into tight spaces typical in automotive and embedded electronics. HSD Z male connectors provide reliable high‑speed signal transmission. Supplied as a pair, the product offers convenience for simultaneous installations or spare parts replacement.

Suitable for

• Automotive infotainment and camera systems
• In-vehicle high-speed data links
• Embedded electronic modules requiring compact coaxial connections

Key specifications

• Brand: DELOCK
• Model/MPN: 90339
• EAN: 4043619903399
• Connector type: 2 × HSD Z male
• Dimensions: 14.3 mm (W) × 42.5 mm (D) × 12 mm (H)
• Package quantity: 2 connectors
• Category: Fibre Optic Cables (coaxial connector for electronic systems)

How to use

Install the DeLOCK 90339 by mating each HSD Z male connector with the corresponding female counterpart in the device or vehicle wiring harness. Ensure correct alignment before applying gentle pressure to secure the connection. Verify signal integrity after installation and route cables to avoid sharp bends or stress on the connectors.

Recommendations

For reliable performance, use the connector in appropriate automotive or electronic environments, protect connections from moisture and contaminants, and avoid exceeding the mechanical stress limits of the cable and connector assembly.
