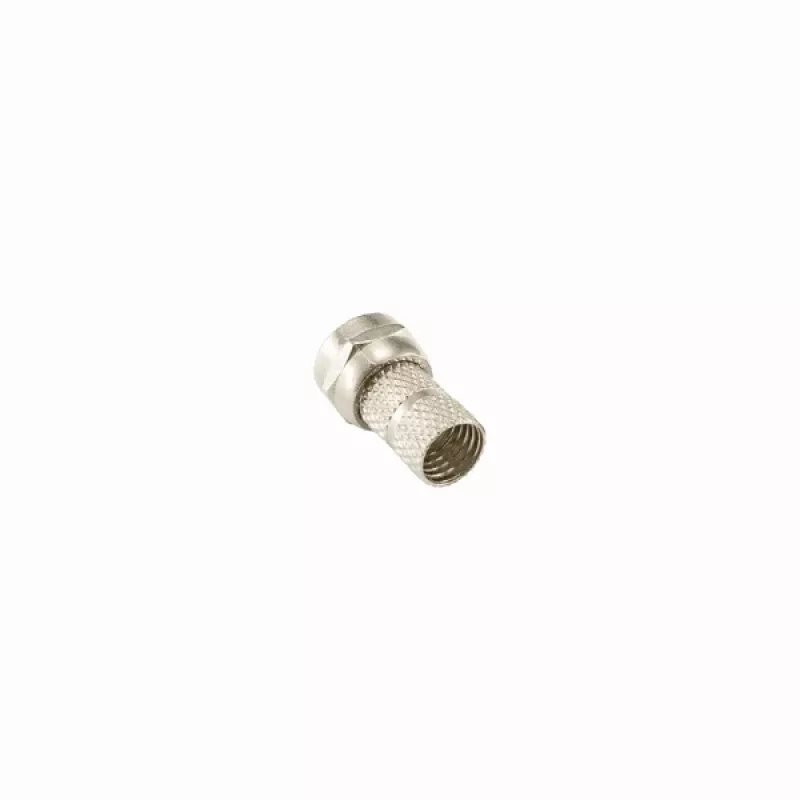

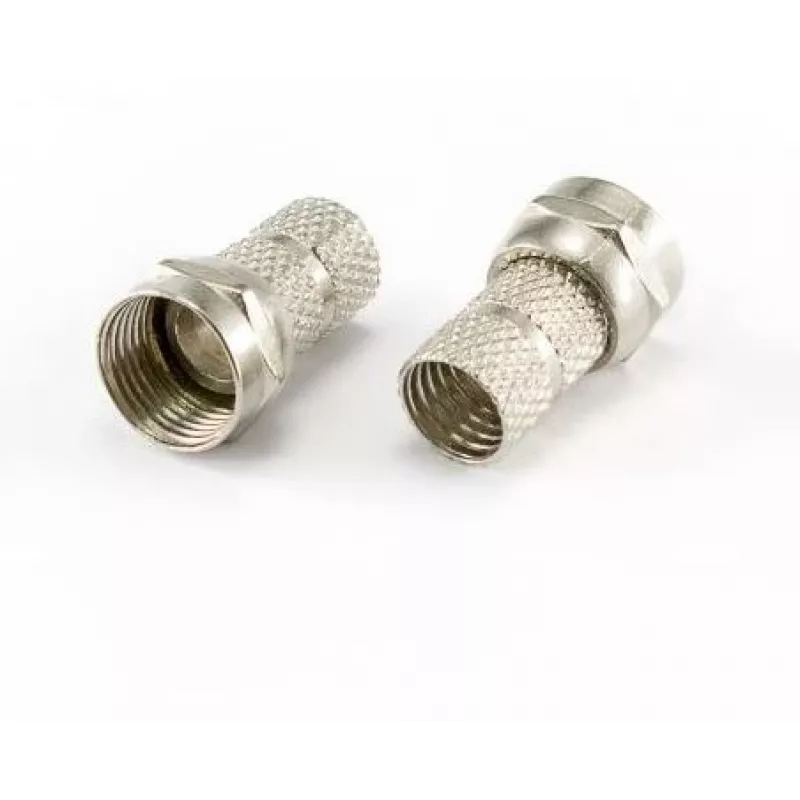

SBOX KON-F adattatore di interfaccia per cavo compatto e leggero KON-F

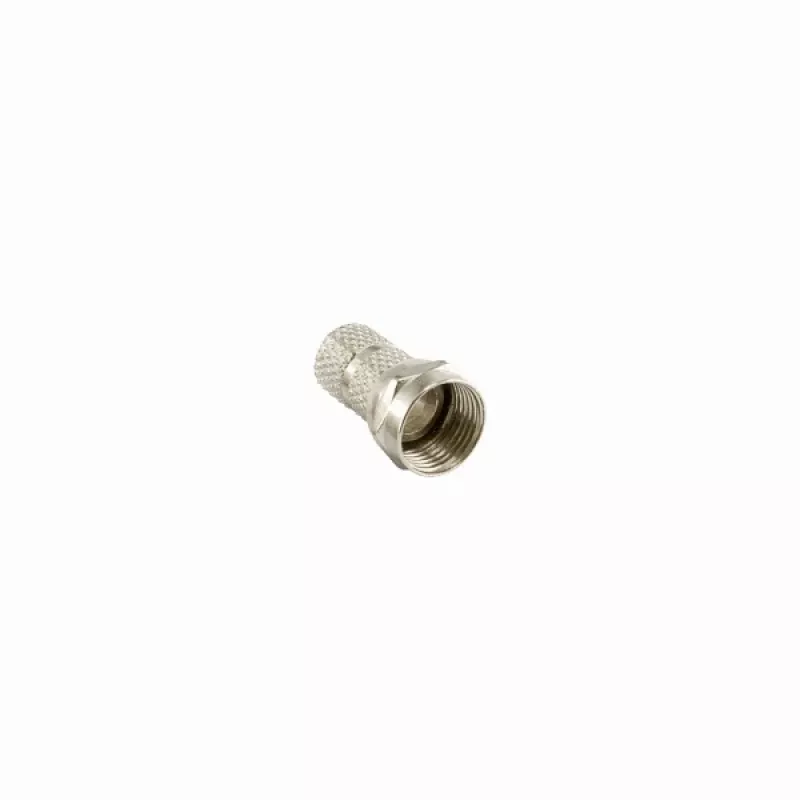

SBOX KON-F compact lightweight cable interface adapter, model KON-F, is an F-type connector for RG-6 coaxial cable designed for space-saving and easy handling in installations where reduced size and weight are important. It provides a reliable mechanical and electrical connection for short runs, transitions between cables, and tight mounting locations. The connector is made of zinc, measures 18 mm in length, and fits coaxial cables with an outer diameter of 7.0 mm.

Advantages

The SBOX KON-F F connector combines a compact 18 mm body and zinc construction to deliver a durable, low-profile connection for RG-6 coaxial cable. Its small size and lightweight design simplify routing in constrained spaces while maintaining the standard F-type interface for compatibility with common consumer and professional devices.

Suitable for

• Connecting RG-6 coaxial cables to F-type female ports
• Space-constrained installations and tight mounting locations
• Short cable runs and simple cable transitions
• Consumer and professional TV, satellite, and antenna connections

Key specifications

• Connector type: F (female)
• Cable compatibility: RG-6 coaxial, 7.0 mm outer diameter
• Connector length: 18 mm
• Material: Zinc
• Brand: SBOX, MPN: KON-F, EAN: 616320536565

How to use

Prepare the RG-6 cable by stripping the outer jacket and dielectric to expose the center conductor and braid according to standard F-connector preparation dimensions. Slide the KON-F connector onto the prepared cable end until it seats fully, ensuring the center conductor extends into the connector and the braid makes good contact with the connector body. Tighten or secure the connector per the installation method appropriate for the specific F-type interface in your system.

Recommendations

Use the SBOX KON-F with properly prepared RG-6 cable (7.0 mm outer diameter) and inspect connections for solid mechanical fit and electrical contact. Avoid excessive torque when tightening and protect the connection from moisture in outdoor applications using appropriate sealing methods.
