Adattatore coassiale DeLOCK 65876

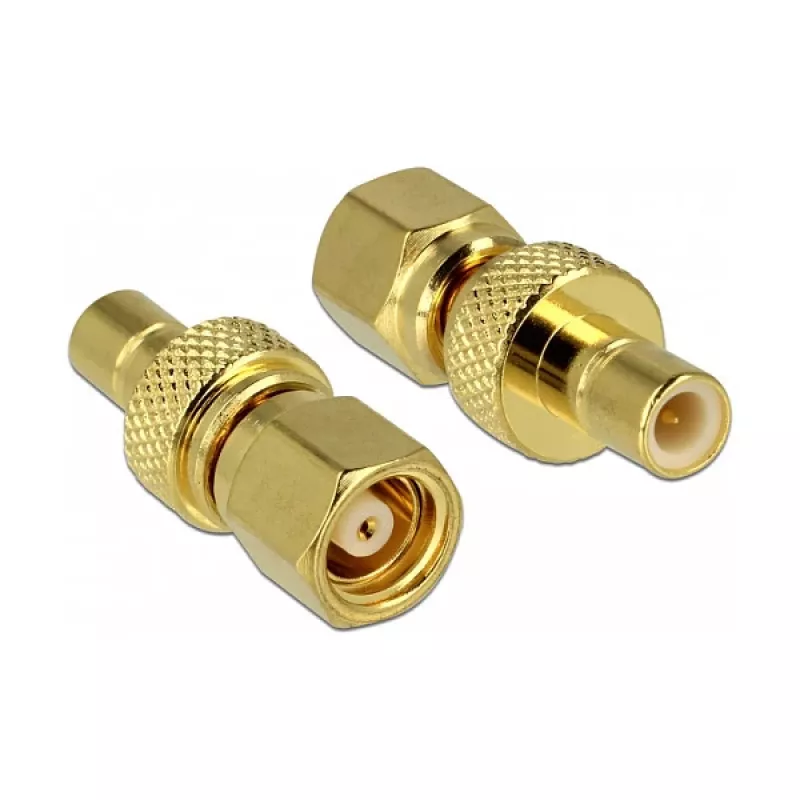

The DeLOCK 65876 coaxial connector is a compact adapter featuring a male SMC connector on one end and an SMB connector on the other, designed for 50 Ω applications. With a depth of 22 mm and a gold-coloured finish, this single-piece adapter provides a straightforward solution for connecting radio frequency components and maintaining reliable signal transmission in electronic setups.

Advantages

The adapter combines SMC (male) and SMB interfaces in a single compact unit, supporting standard 50 Ω impedance. Its 22 mm depth and gold-coloured construction offer a space-saving connection with corrosion-resistant contact surfaces. Supplied as one piece, it is suitable for straightforward integration into existing RF cabling and test setups.

Suitable for

• Connecting SMC (male) to SMB in RF systems
• 50 Ω test and measurement equipment
• Integration in communication devices and modules
• Prototyping and small-scale electronic projects

Key specifications

• Connector 1: SMC (male)
• Connector 2: SMB
• Impedance: 50 Ω
• Depth: 22 mm
• Colour: Gold
• Quantity: 1 piece

How to use

Align the SMC (male) and SMB connectors with the corresponding female sockets on your devices or cables. Gently insert and secure each end to ensure a firm mechanical and electrical connection. Avoid excessive force; the adapter is intended for standard push-on or screw-type mating depending on the mating connector design.

Recommendations

Use the adapter in dry, dust-free environments and avoid bending the connected coaxial cables sharply near the connector. Verify compatibility with 50 Ω equipment to ensure optimal signal integrity.
