Connettore maschio di rete C20 Bachmann 915.175 nero

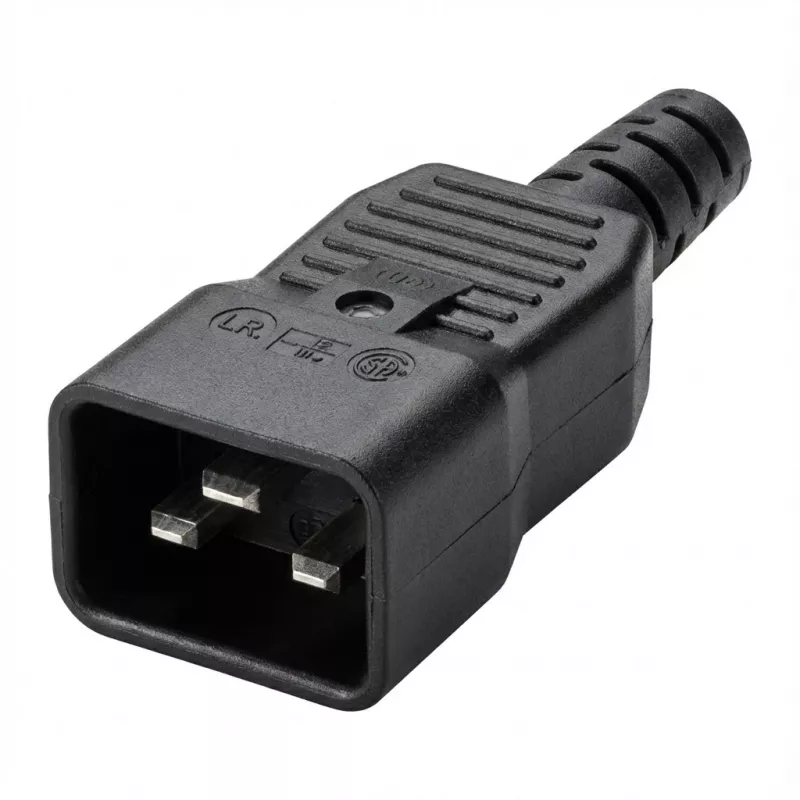

The Bachmann 915.175 Power Plug C20 in black is a thermoplastic mains connector with earthing contact, designed for safe and reliable AC connections. It supports an AC voltage of 250 V and a rated current of 16 A, and is suited for wiring where a compact C20 inlet connection is required. The housing is made of thermoplastic and the plug is equipped with a kink protection nozzle for strain relief during cable assembly.

Advantages

This C20 power plug provides a standardized IEC-type connection with earthing contact for protective grounding. The thermoplastic housing offers electrical insulation and durability while keeping weight low. The integrated kink protection nozzle reduces mechanical stress on the cable at the entry point, helping to prolong cable life and maintain a secure electrical connection.

Suitable for

• Powering equipment that requires a C20 inlet (250 V, 16 A)
• Industrial, server rack, or professional AV installations
• Field wiring and cable assembly where strain relief is needed

Key specifications

• Model: Bachmann 915.175
• Type: Power Plug C20 with earthing contact
• Rated current: 16 A
• Rated voltage: 250 V~
• Material: Thermoplastic housing
• Temperature rating: 70 °C
• Features: Kink protection nozzle for line assembly
• Color: Black
• Brand: Bachmann
• EAN: 4016514016976

How to use

Prepare the supply cable according to the conductor length recommended for the plug, insert conductors into the correct terminals observing polarity and earth connection, and secure them according to the manufacturer’s torque or clamping instructions. Slide the kink protection nozzle into place and assemble the housing to ensure strain relief and secure mechanical fixation. Verify continuity and correct wiring before applying mains voltage.

Recommendations

Use this C20 plug with cables and equipment rated for 250 V and 16 A. Do not exceed the specified temperature rating of 70 °C and ensure connections are tightened to the recommended specifications. If unsure about installation, consult a qualified electrician.
