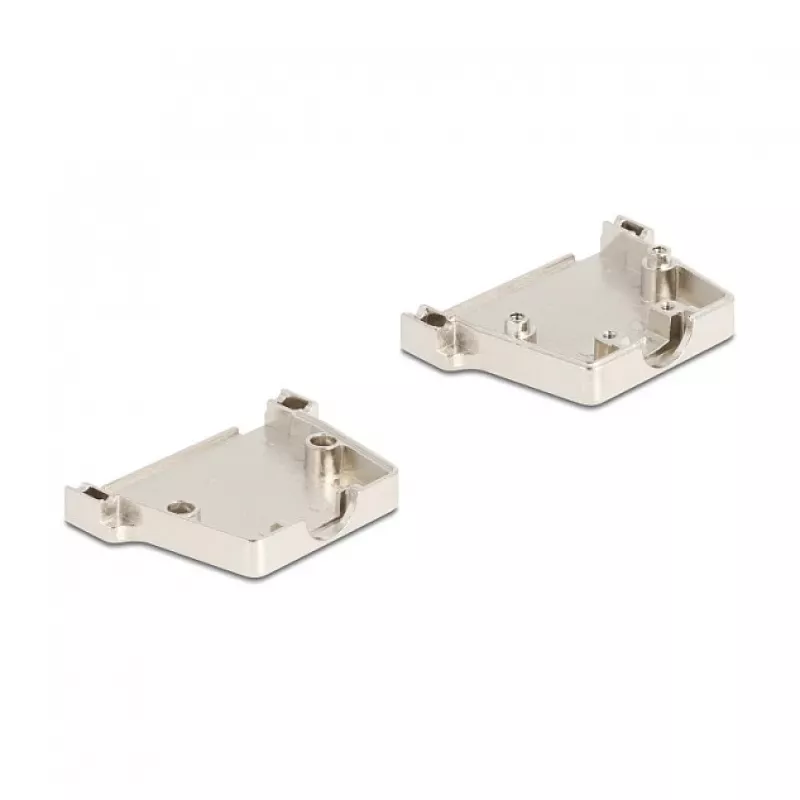

Connettore per filo DeLOCK 67140 D-Sub 50 poli argento connettore maschio

The DeLOCK 67140 wire connector is a 50-pin D-Sub male connector finished in silver. It provides a compact rectangular housing with dimensions of 68 mm (width) × 51 mm (depth) × 18.8 mm (height), designed for soldering or wiring into electronic assemblies where a reliable multi-contact D-Sub interface is required.

Advantages

This 50-pin D-Sub male connector offers a standardized pin count and form factor for compatibility with D-Sub female counterparts, ensuring consistent electrical contact across all pins. The silver-coloured finish supports easy identification and integration into metal or neutral-coloured assemblies. Its compact dimensions make it suitable for space-constrained panels or enclosures while still providing a full 50-pin contact array for signal, control or low-current power connections.

Suitable for

• Connecting multi-signal or multi-conductor cables to PCBs and panels
• Industrial control systems requiring D-Sub interfaces
• Legacy and custom equipment using 50-pin D-Sub male connections
• Prototyping and repair of devices with D-Sub sockets

Key specifications

• Connector type: D-Sub male, 50 pins
• Colour: silver
• Width: 68 mm
• Depth: 51 mm
• Height: 18.8 mm
• Mounting style: wire/solderable connector for cable or assembly integration

How to use

Prepare cable or wiring according to the required pinout, then solder or crimp conductors to the connector contacts following the manufacturer’s recommended wiring sequence. Secure the connector in place on the device or cable assembly and align with the mating female D-Sub socket to ensure correct engagement of all 50 pins. Verify continuity and insulation between adjacent pins after installation to confirm reliable connections.

Recommendations

Handle the connector with care during soldering to avoid overheating contacts. Use appropriate strain relief and shielding as needed to maintain mechanical integrity and reduce electromagnetic interference in the final installation.
