Console KVM Digitus 19 pollici HD LCD 16 porte HDMI tastiera svizzera

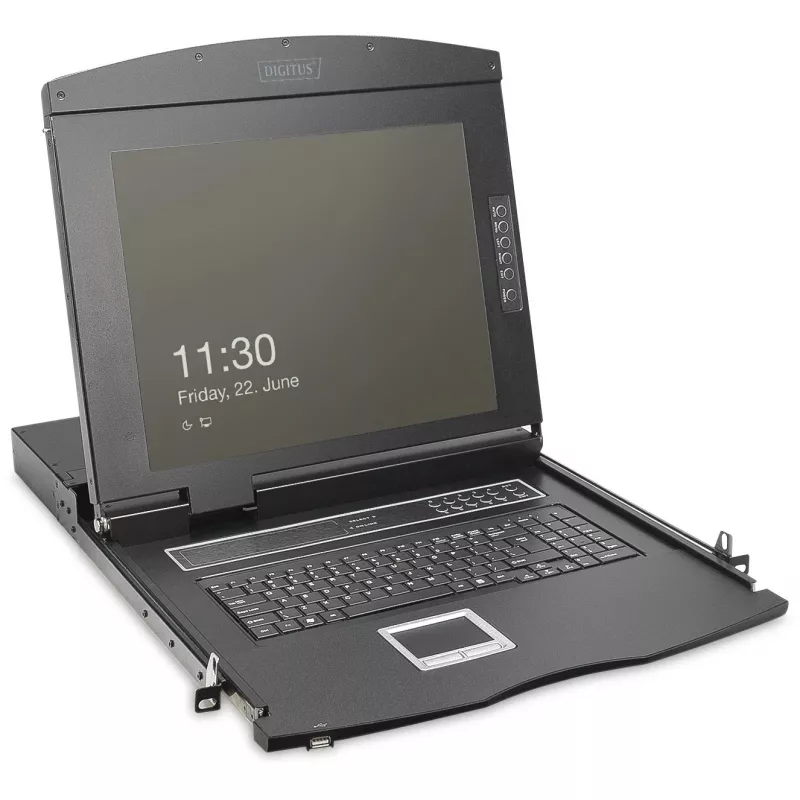

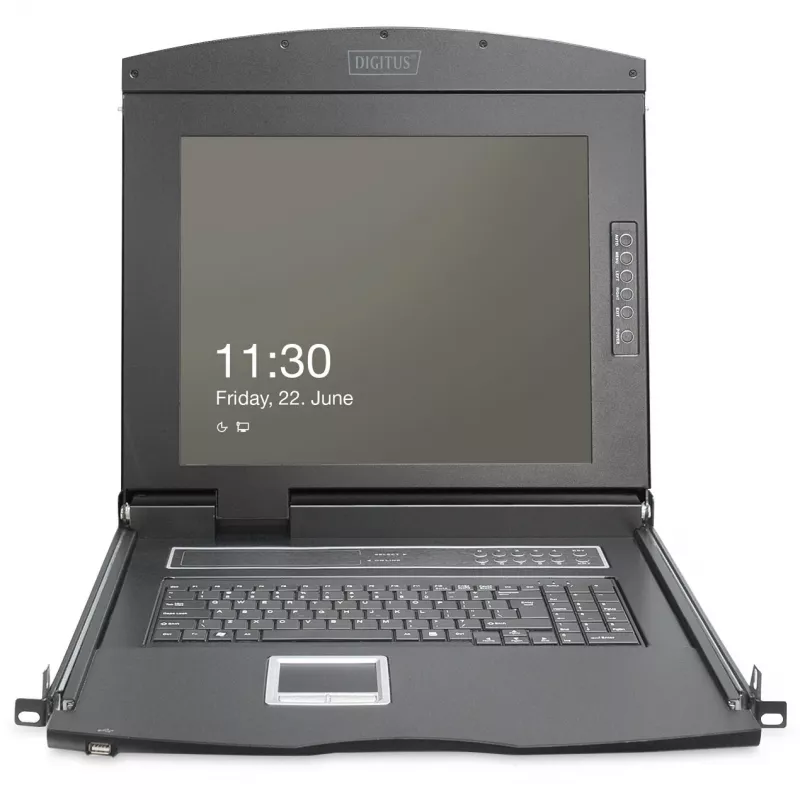

The DIGITUS 19" HD LCD KVM Console is a 1U, space-saving rack console with a 48.3 cm (19") TFT screen, Swiss QWERTZ keyboard layout and an integrated 16-port HDMI KVM switch. The screen offers Full HD resolution (1920 x 1080 at 60 Hz), a 1000:1 contrast ratio and support for 16.7 million colors. The console housing is black (RAL 9005) and the unit includes a mouse touch board with two function buttons. Its modular design allows upgrades or conversion with additional modules for different server-room requirements.

Advantages

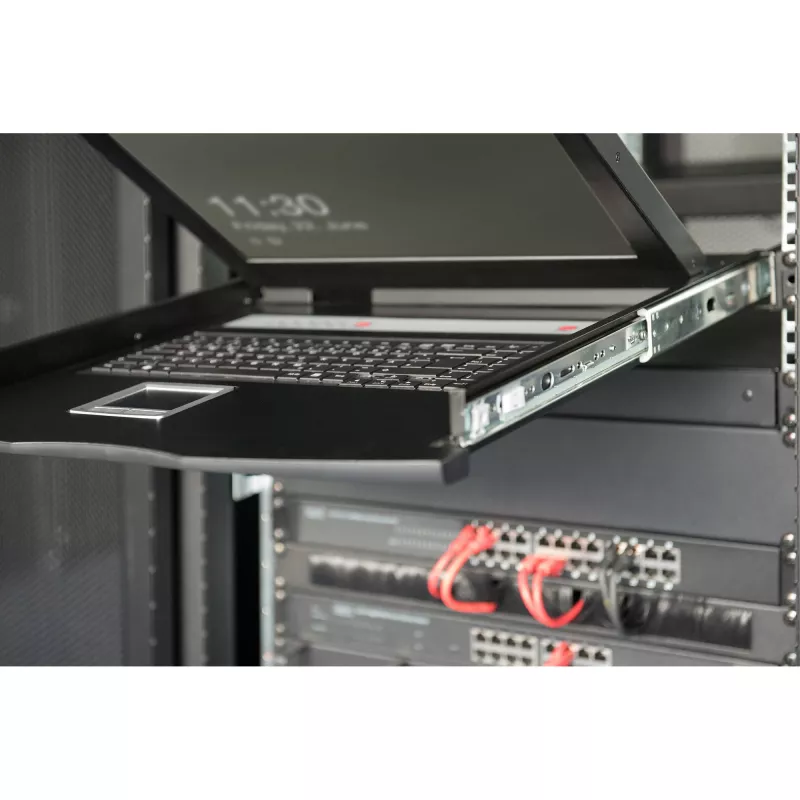

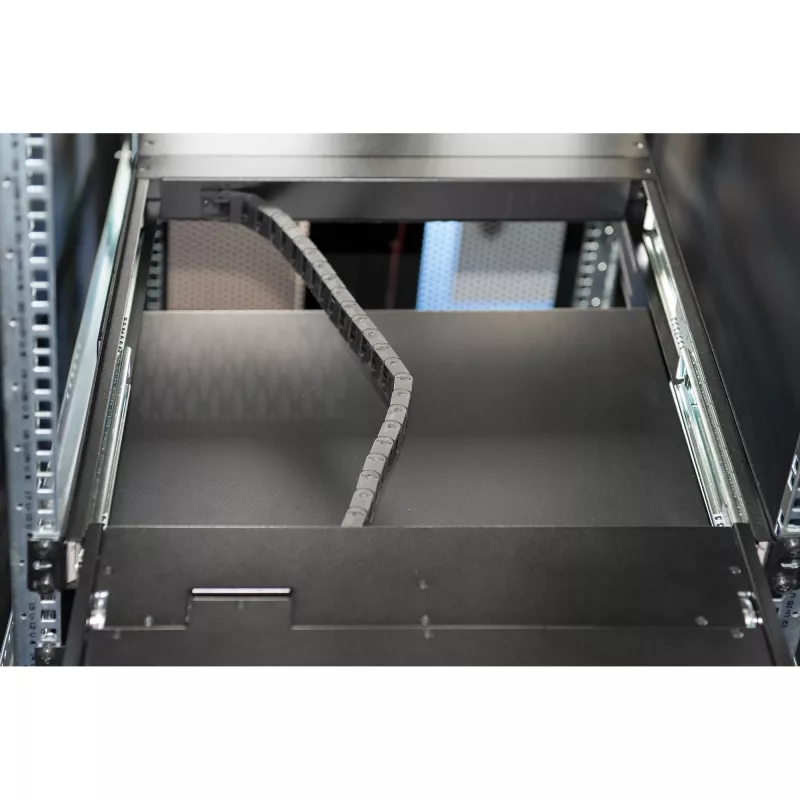

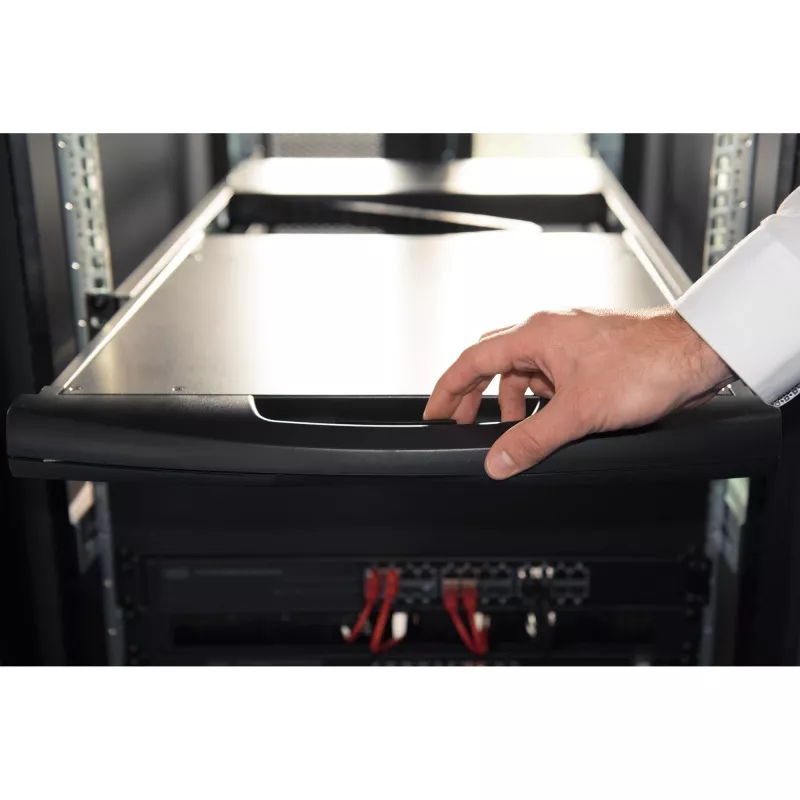

The console can be fully pulled out of the server cabinet and the TFT screen can be tilted by 120 degrees, which simplifies access and viewing. The integrated 16-port HDMI KVM switch centralizes control of multiple HDMI-equipped servers, reducing cable clutter and saving rack space. The modular concept enables flexible configuration and future expansion without replacing the entire unit.

Suitable for (tasks / use cases)

• Server cabinets and data center racks where space is limited
• IT maintenance and administration of multiple HDMI servers
• Environments requiring a Swiss QWERTZ keyboard layout

Key specifications

• Display size: 19" (48.3 cm)
• Resolution: 1920 x 1080 @ 60 Hz
• Contrast ratio: 1000:1
• Colors supported: 16.7 million
• Integrated KVM switch: 16-port HDMI
• Keyboard layout: Swiss QWERTZ
• Housing height: 1U, colour: Black (RAL 9005)
• Interface: HDMI
• Mouse: Touchpad with two function buttons
• Weight: 10.54 kg

How to use

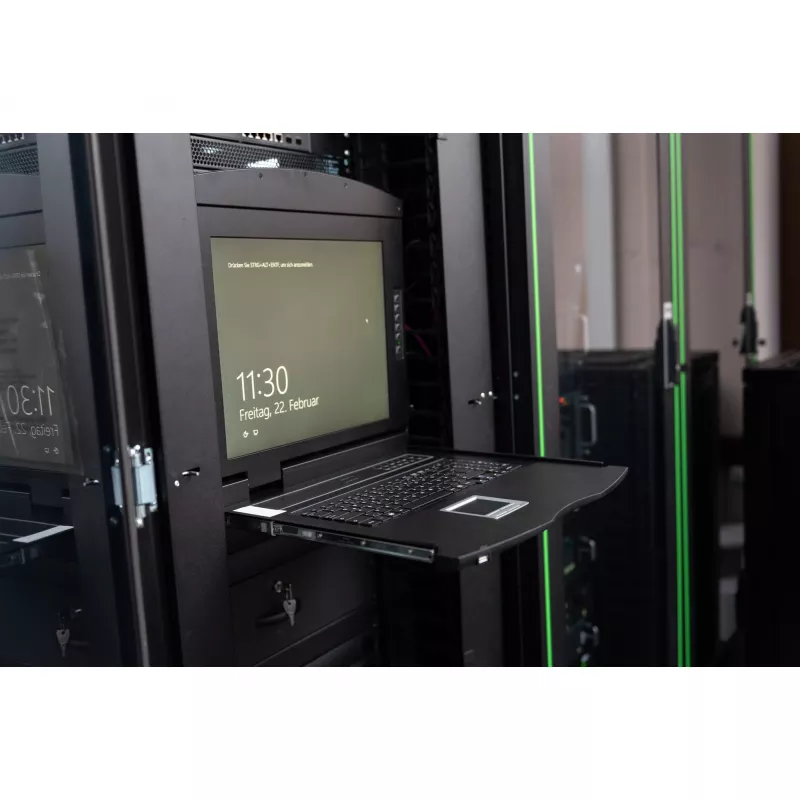

Install the console into a compatible 19" server cabinet occupying a single rack unit (1U). Pull the console out from the cabinet drawer for operation and adjust the TFT screen tilt up to 120 degrees for optimal viewing. Connect servers to the 16 HDMI ports of the integrated KVM switch and use the Swiss keyboard and touchpad to control the selected server. Switch between connected servers using the KVM switch controls according to your rack setup.

Recommendations

For reliable operation, mount the console in a standard 19" rack with sufficient ventilation and connect only HDMI-compatible devices. Keep firmware and KVM switch settings up to date and handle the TFT screen and touchpad with care when tilting or extending the console.
