KVM switch ATEN CL3108NX-ATA-AG USB VGA 1U rack mount nero

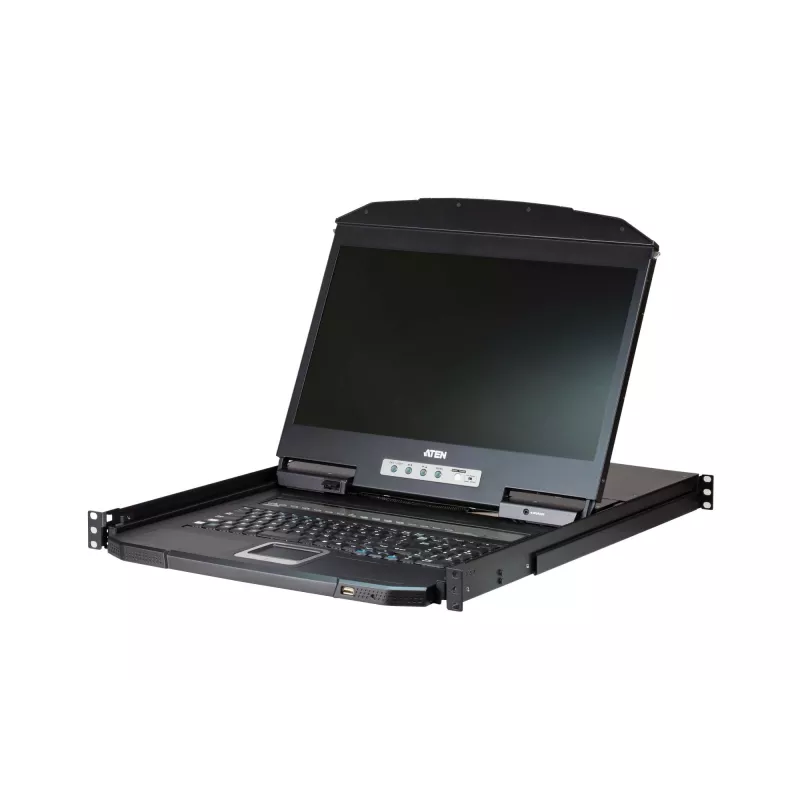

The ATEN CL3108NX-ATA-AG is a 1U rack-mountable KVM switch that integrates an 18.5" LED-backlit LCD monitor, a USB keyboard, and a touchpad in a sliding housing designed for short-depth racks. It provides VGA video output and USB keyboard/mouse connectivity, supports up to 1366 x 768 @ 60 Hz resolution, and operates on AC power with a 100–240 V input range. The compact design and built-in LED illumination light make the unit suitable for installations where space is limited and visibility may be poor.

Advantages

The integrated design saves rack space by combining monitor, keyboard and touchpad into a single 1U unit while the short-depth chassis fits into narrow racks. USB keyboard and mouse ports and VGA video output ensure compatibility with a wide range of servers and devices. The built-in LED illumination improves usability in low-light environments, and the included standard rack-mounting kit and necessary KVM, firmware upgrade and power cables provide a ready-to-install solution.

Suitable for

• Server rooms and data centers with limited rack depth
• Network closets and telecommunication cabinets

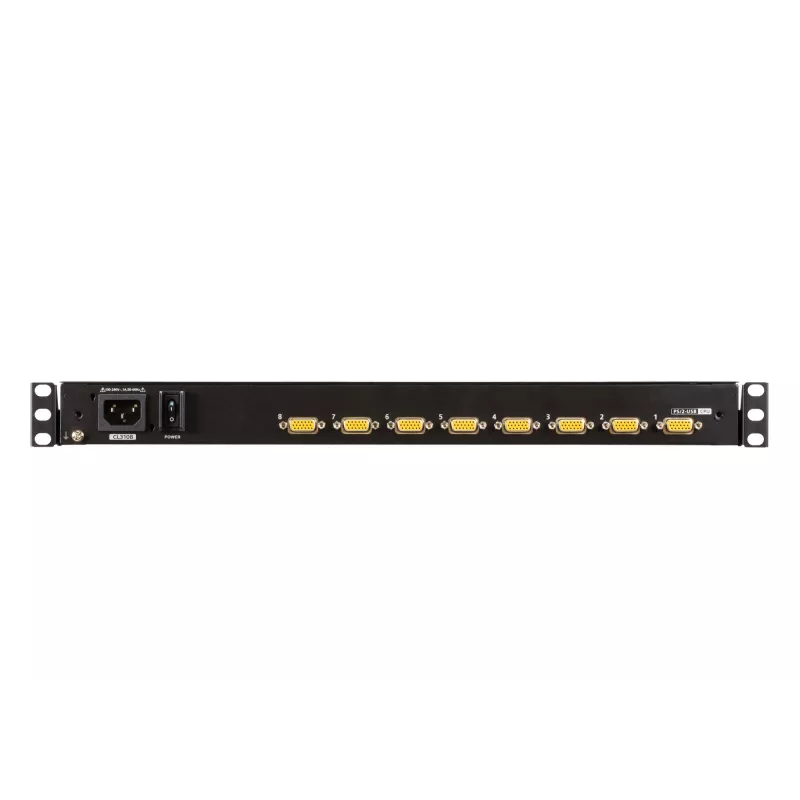

• Control stations requiring compact, rack-mounted console access to up to 8 computers
• Environments with sporadic low-light conditions where integrated illumination is helpful

Key specifications

• Model: CL3108NX-ATA-AG
• Form factor: 1U rack-mountable sliding console
• Display: 18.5" LED-backlit LCD
• Maximum resolution: 1366 x 768 @ 60 Hz
• Video port: VGA
• Keyboard/mouse ports: USB
• Number of controlled computers: 8
• Power input: AC 100–240 V
• Colour: Black
• Weight: 11 kg
• Included accessories: standard rack mounting kit, 2x LIN5-15X3-U12G KVM cables (VGA, USB, 1.8 m), LIN5-04A2-J15G firmware upgrade cable, LIN2-418K-E12G power cord, user instructions

How to use

Install the CL3108NX-ATA-AG into a 1U rack space using the supplied standard rack mounting kit and slide the console into position. Connect each target computer to the switch using the provided VGA and USB KVM cables, and connect the power cord to an appropriate AC source (100–240 V). Power on the unit and use the built-in keyboard and touchpad to select and control connected computers. Use the firmware upgrade cable if an update is required following ATEN instructions.

Recommendations

Place the unit in a rack location with enough clearance for the short-depth chassis to slide fully; ensure the AC supply matches the 100–240 V rating. Use the included KVM cables for proper compatibility and follow ATEN firmware update procedures when applying upgrades.
