Console rack ATEN CL3700NW 47 cm (18,5 pollici)

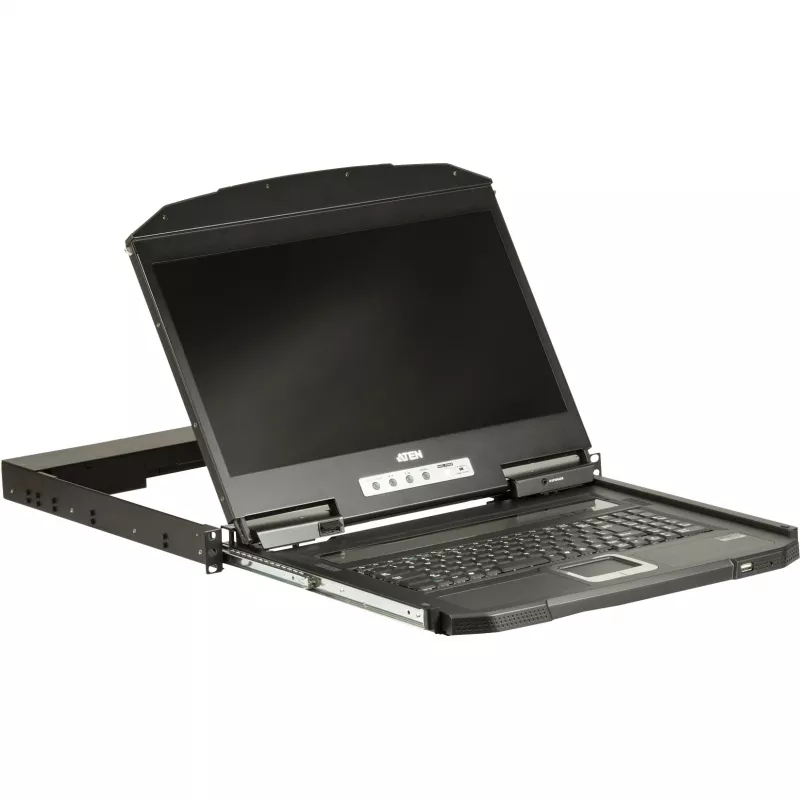

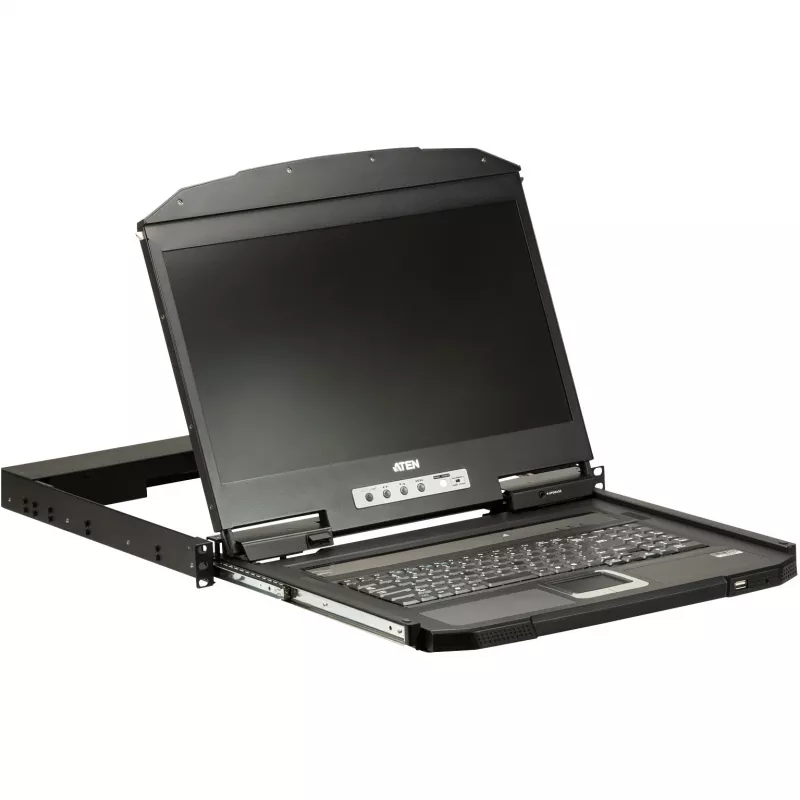

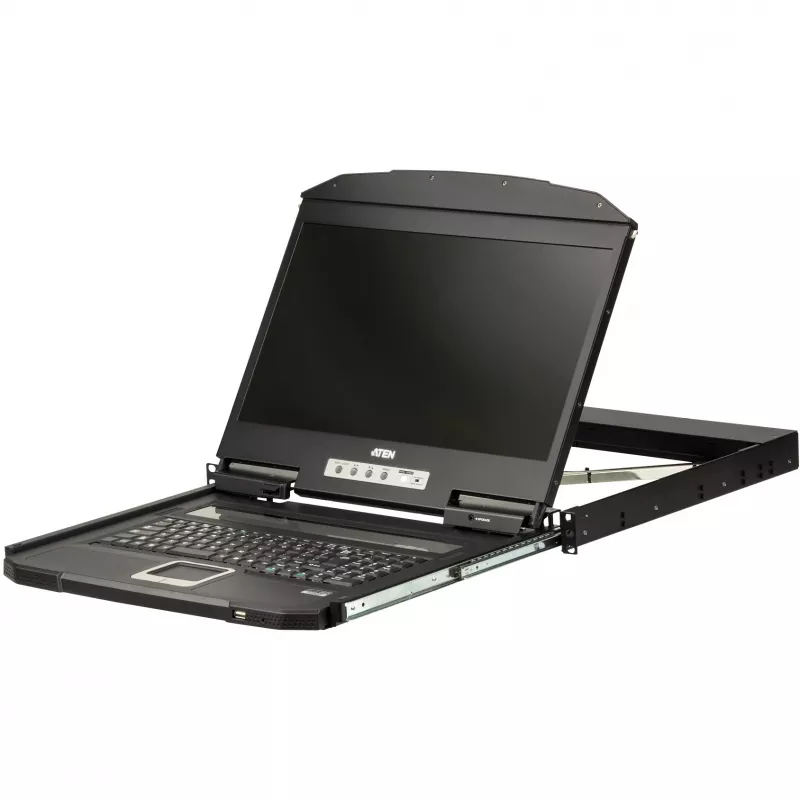

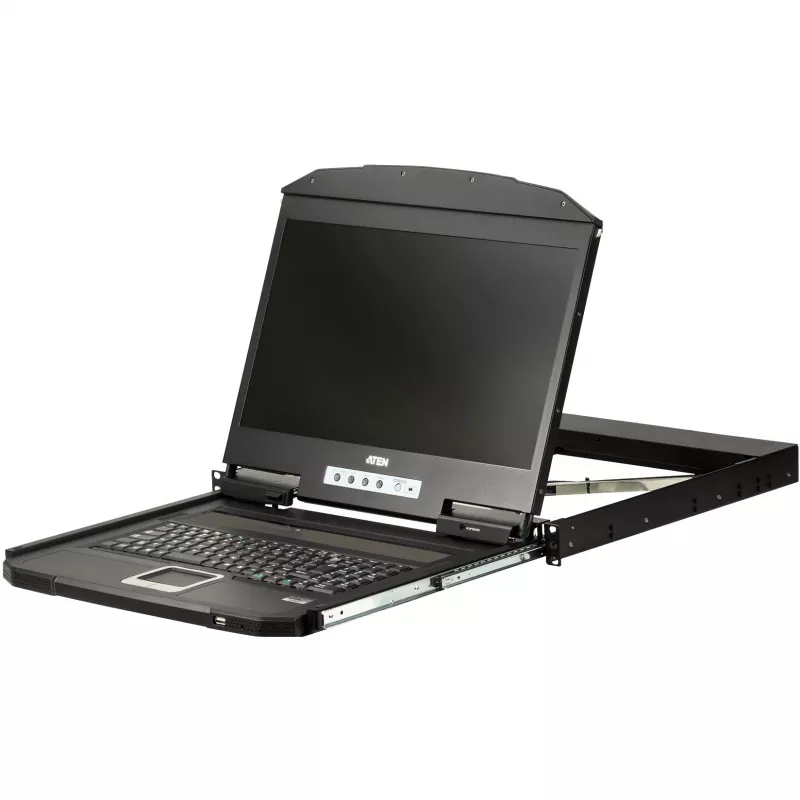

The ATEN CL3700NW USB HDMI LCD Console is a short-depth, single-rail 1U rack console that integrates an 18.5" LED-backlit widescreen LCD monitor with a built-in keyboard and touchpad. Designed to fit all 19" equipment cabinets, its compact depth makes it particularly suitable for shallow racks, outside broadcast vans and compact control rooms where space is limited. The unit provides HDMI video output, USB ports for keyboard and mouse connections, and is intended as a front-end sliding console for compatible HDMI KVM switches.

Advantages

The CL3700NW delivers full HD 1920 x 1080 resolution on an 18.5" widescreen panel with 350 cd/m² brightness, offering clear video quality and a generous viewing area in a 1U form factor. Its short-depth single-rail design enables installation in tight racks, while front- and rear-mounted USB and HDMI ports allow connection of an external console or second KVM console. The console operates on AC power with a wide input range (100–240 V) and comes in a compact, durable black housing optimized for space utility and versatile deployment.

Suitable for

• Shallow 19" rack installations where depth is limited
• Outside broadcast (OB) vans and mobile production units
• Compact control rooms and network/IT cabinets
• Systems requiring a dedicated front-end console for an HDMI KVM switch

Key specifications

• Display: 18.5" LED-backlit widescreen LCD, 1920 x 1080 (Full HD)
• Brightness: 350 cd/m²
• Video port type: HDMI
• Keyboard / Mouse ports: USB
• Number of computers controlled: 1 (front-end console for compatible KVM switch)
• Power: AC 100–240 V
• Dimensions (W×H×D): 477 × 42.8 × 480.6 mm
• Weight: 9.01 kg
• Colour: Black
• Model / MPN: CL3700NW
• EAN: 4719264647284

How to use

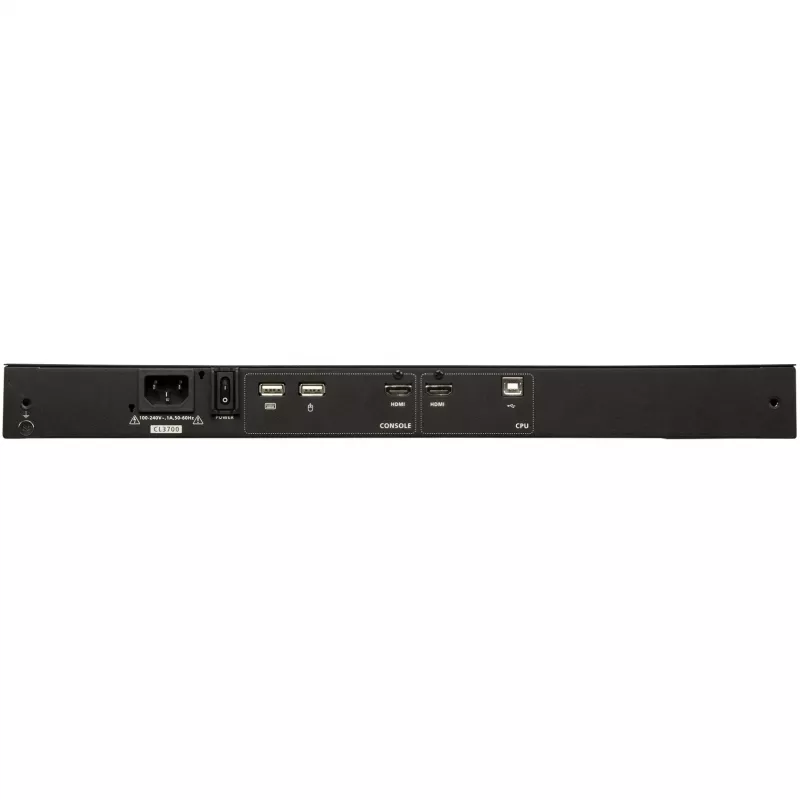

Slide the console into a 1U space in a compatible 19" rack and secure it according to the rack-mount instructions. Connect the console's HDMI output and USB keyboard/mouse connectors to the corresponding ports on the compatible HDMI KVM switch or directly to the host computer. Use the front-panel USB port to attach an external USB mouse if needed; rear-panel ports permit connection of a second KVM console (USB keyboard/mouse and HDMI monitor). Supply AC power within the rated 100–240 V range and power on the device to begin operation.

Recommendations

For stable video and peripheral operation, use high-quality HDMI and USB cables and ensure the connected KVM switch or host supports the CL3700NW's Full HD output. Install the console in a well-ventilated rack space and follow ATEN's mounting and grounding guidelines to maintain reliable performance in mobile or compact environments.
