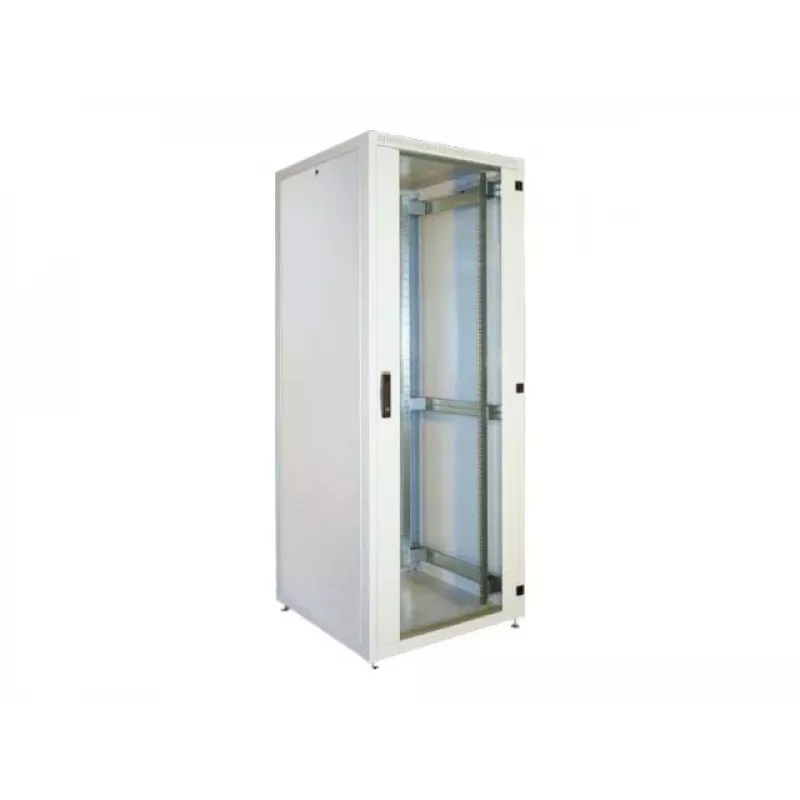

Conteg iSEVEN armadio rack server 21U 19 pollici 600x800 mm grigio chiaro RAL 7035

The Conteg iSEVEN server rack cabinet offers a robust and flexible solution for housing 19-inch IT equipment. With 21U of rack space and a compact footprint of 600 x 800 mm, it is ideal for small to medium-sized installations. The cabinet is constructed from high-quality steel with a light grey RAL 7035 finish, ensuring durability and a professional appearance.

Advantages

This rack cabinet is delivered fully assembled, saving time and effort during installation. The perforated front and rear doors provide 80% perforation for optimal airflow, while the removable side panels allow easy access for cable management and maintenance. The adjustable mounting rails (front and rear) accommodate equipment of varying depths, and the included leveling feet and castors ensure stability and mobility.

Suitable for

• Server and network equipment installation in data centers, server rooms, and office environments
• 19-inch rack-mountable devices such as servers, switches, patch panels, and UPS systems
• Applications requiring efficient cooling and cable management

Key specifications

• Rack capacity: 21U
• Rack width: 19 inch (48.3 cm)
• External dimensions (W x D x H): 600 x 800 x 1100 mm
• Colour: Light Grey (RAL 7035)
• Material: Steel
• Static load capacity: 400 kg
• Front door: Perforated steel (80% perforation)
• Rear door: Perforated steel (80% perforation)
• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• IP protection class: IP20
• Mounting type: Floor standing
• Construction: Welded frame, delivered assembled
• Adjustable mounting rails: Yes, front and rear
• Included accessories: Leveling feet, castors, keys for doors/side panels, cage nuts

Recommendations

For optimal performance, ensure adequate ventilation around the cabinet. Use cable management accessories to maintain airflow and organization. The cabinet is designed for indoor use only.
