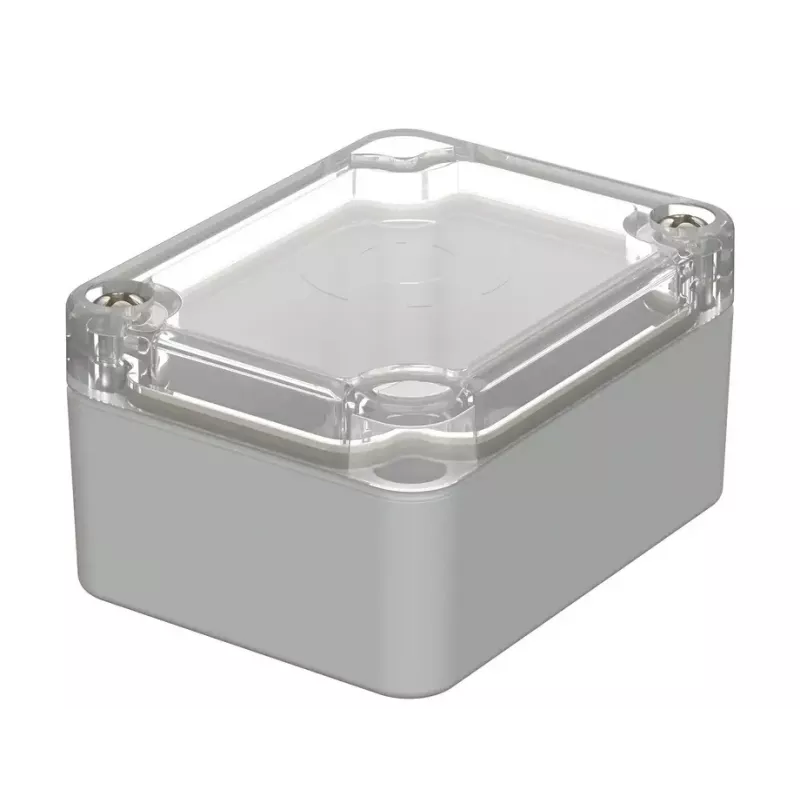

Bopla EUROMAS M 206 G custodia universale 65 x 50 x 35 mm policarbonato grigio chiaro 02206200

With an impact resistance of IK07 and protection class IP65, this Bopla EUROMAS M 206 G enclosure is built to withstand demanding environments. Its compact 65 x 50 x 35 mm housing is made from light grey polycarbonate (RAL 7035), offering excellent UV and chemical resistance. The enclosure features a polyurethane foam gasket and four stainless steel lid screws for a secure seal. Integrated mounting bosses simplify installation of internal components. The material is halogen-free and has a flammability rating of UL 94 V-2. Operating temperature range: -40 °C to +80 °C.

Overview

The Bopla EUROMAS M 206 G is a universal enclosure designed for a wide range of electronic and electrical applications. Its robust polycarbonate construction provides durability and protection against environmental factors. The light grey colour (RAL 7035) is suitable for industrial and commercial settings.

What stands out

• High impact resistance (IK07) and IP65 protection
• UV and chemical resistant polycarbonate material
• Integrated mounting bosses for easy component installation
• Secure lid fastening with four stainless steel screws
• Wide operating temperature range from -40 °C to +80 °C

Technical details

• External dimensions: 65 mm (L) x 50 mm (W) x 35 mm (H)
• Material: Polycarbonate (PC), light grey RAL 7035
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Gasket material: Polyurethane (PU) foam
• Halogen-free: Yes
• Operating temperature: -40 °C to +80 °C

Our verdict

A reliable and versatile enclosure for protecting electronics in harsh conditions, with excellent mechanical and chemical resistance.
