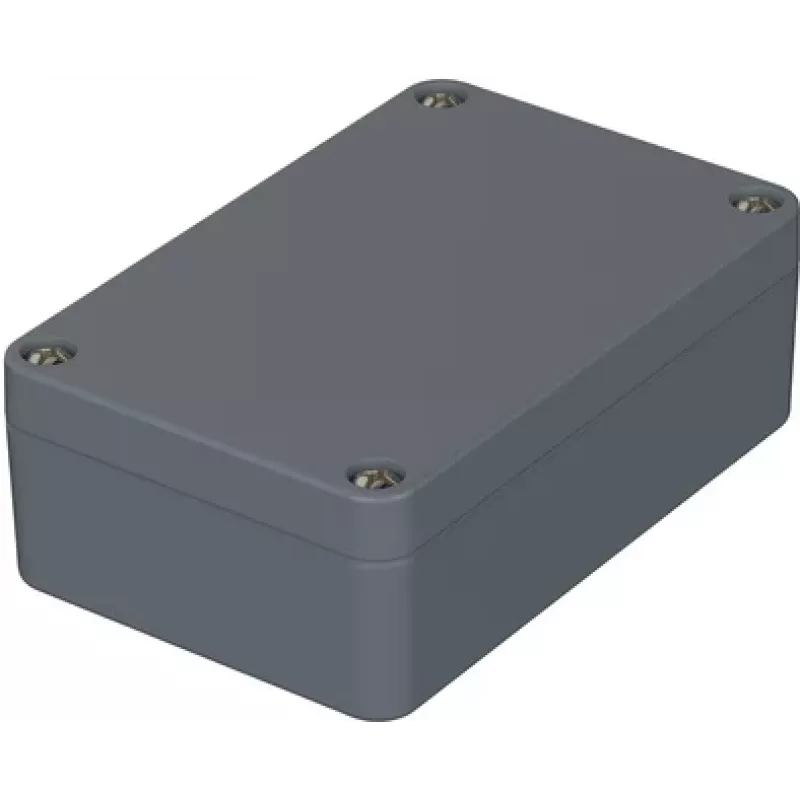

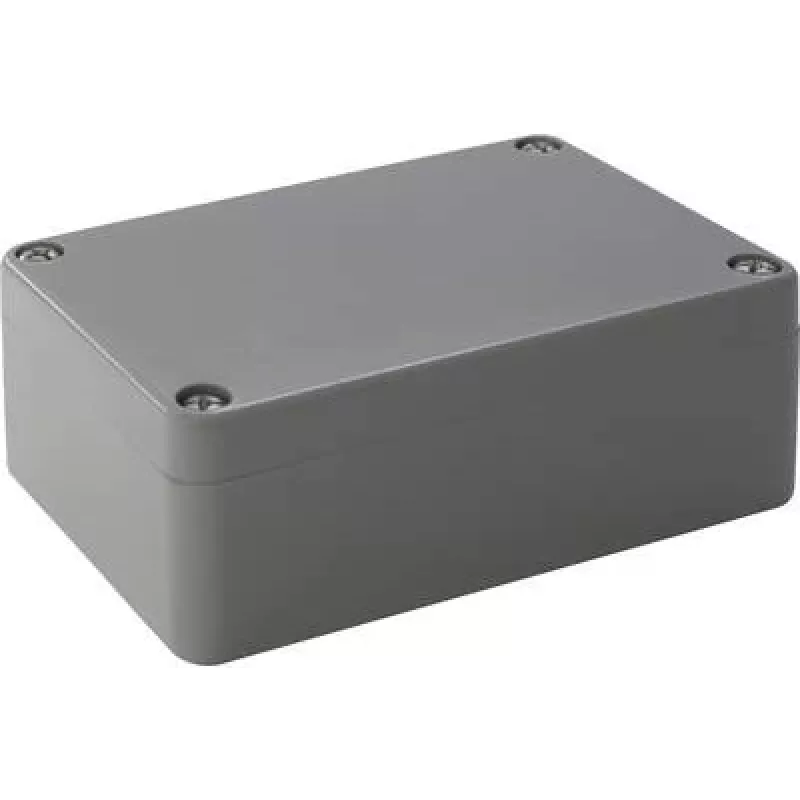

Bopla custodia universale 98 x 64 x 34 mm poliammide grigio argento RAL 7001 PK 102 38102000.MT1

Universal enclosure made of polyamide in silver grey (RAL 7001), suitable for a wide range of industrial and electronics applications. Its compact dimensions of 98 x 64 x 34 mm allow flexible integration into various devices and systems.

Advantages

The enclosure offers high impact resistance (IK07) and a wide operating temperature range from -40°C to +100°C. The material is halogen-free and meets flammability rating UL 94 V-2, ensuring safety in demanding environments.

Suitable for

• Industrial control units
• Electronics housings
• General purpose enclosures

Key specifications

• Material: Polyamide (PA)
• Colour: Silver grey (RAL 7001)
• External dimensions: 98 x 64 x 34 mm
• Protection class: IP 65
• Temperature range: -40°C to +100°C
• Flammability rating: UL 94 V-2
• Gasket material: Polyurethane (PUR)
• Lid fastening: 4x stainless steel screws
• Impact resistance: IK07
• Halogen-free: Yes
• Internal mounting: Integrated mounting bosses

Recommendations

Ideal for applications requiring a robust, weather-resistant enclosure with reliable sealing and easy assembly.
