Contenitore a parete FTTH SYNERGY21 IP55 1 ingresso/24 uscite 2mm o 2 uscite 4-12mm

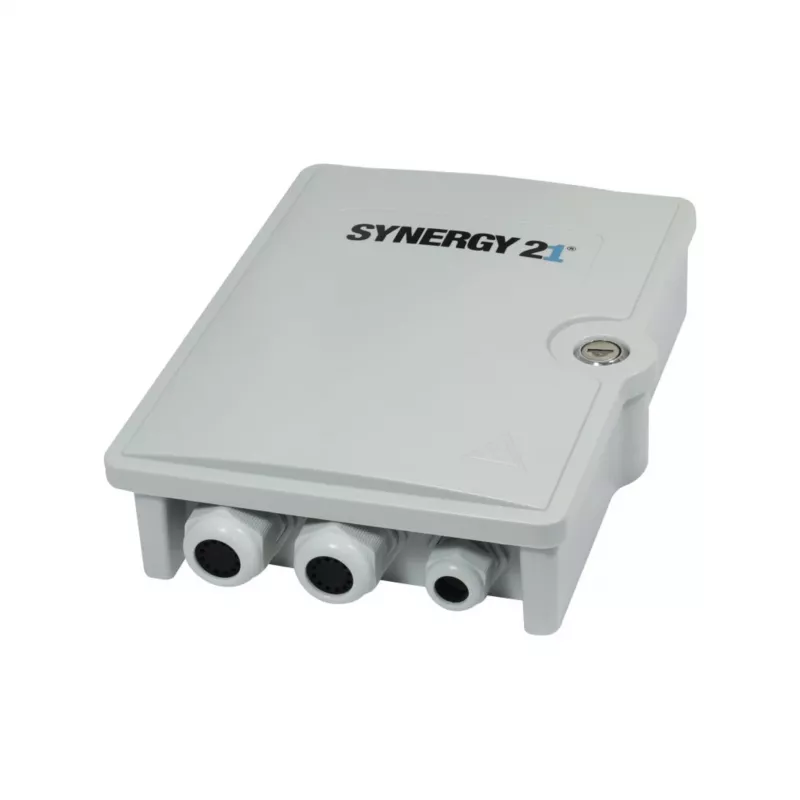

The SYNERGY21 FTTH Wall Enclosure (S215582) is a robust and versatile fiber optic distribution box designed for Fiber To The Home (FTTH), Fiber To The Building (FTTB), and other FTTx networks. With an IP55 rating, it offers reliable protection against dust and water jets, making it suitable for both indoor and outdoor wall-mounted installations. The enclosure features one feeder cable entry port (compatible with M20/M25 glands) and 24 drop cable exit ports for 2mm cables, plus two alternative exit ports for 4-12mm cables, accommodating up to 24 fibers. Its integrated splice tray and fiber routing guides ensure organized cable management, while the screw-secured lid provides security. Made from PC+ABS in light grey (RAL 7035), it is UV-resistant and operates in temperatures from -25°C to +65°C.

Advantages

High-density fiber management in a compact, weatherproof housing. Easy installation and maintenance with tool-accessible lid. Versatile cable entry/exit options for different cable diameters. Durable, UV-stabilized material for long-term outdoor use.

Suitable for

• FTTH and FTTB network termination points
• Wall-mounted fiber distribution in residential or commercial buildings
• Outdoor telecom cabinets and street cabinets
• Fiber optic splice and patch applications

Key specifications

• Product Type: FTTH Fiber Optic Wall Enclosure
• Ingress Protection: IP55
• Material: PC + ABS
• Mounting: Wall-mounted
• Feeder Cable Entry: 1 port (M20/M25 compatible)
• Drop Cable Exit: 24 ports for 2mm cables, 2 ports for 4-12mm cables
• Max Fiber Capacity: 24 fibers
• Max Splice Capacity: 24 (e.g., 24x SC Simplex or 12x LC Duplex)
• Connector Compatibility: SC Simplex, LC Duplex
• Color: Light Grey (RAL 7035)
• Operating Temperature: -25°C to +65°C
• Storage Temperature: -40°C to +70°C
• Humidity: 5% to 95% (non-condensing)
• UV Resistance: Yes
• Locking: Screw-secured lid

Recommendations

For optimal performance, use with compatible SC or LC connectors and ensure proper cable sealing at entry/exit points. Suitable for use with single-mode and multi-mode fibers.
