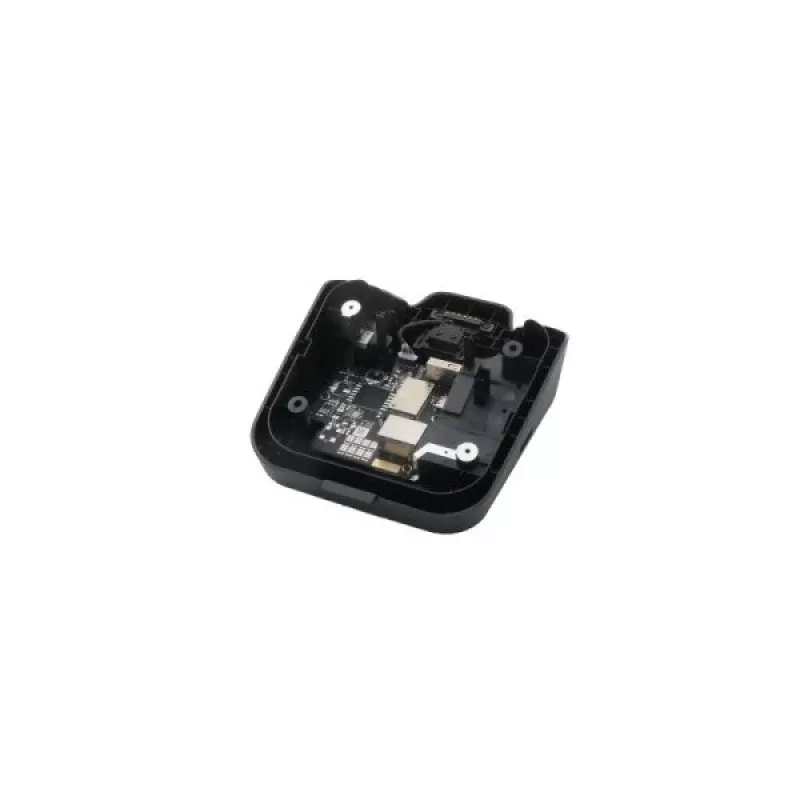

Copertura posteriore VESA per SUNMI V3 MIX (C02020012) con supporto VESA 100x100 e connettori USB Type-A e Type-C

The VESA rear cover for SUNMI V3 MIX provides a replacement rear enclosure featuring an integrated VESA 100x100 mounting interface and both USB Type-A and USB Type-C ports. Designed to fit SUNMI V3 MIX devices, the cover restores or upgrades back-panel connectivity while allowing the terminal to be attached securely to standard VESA arms, brackets or wall mounts. The part supports orderly cable routing and offers accessible USB ports for peripherals, charging or data transfer without modifying the main device housing.

Advantages

This rear cover integrates a standardized VESA 100x100 mounting pattern to simplify attachment to monitor arms and mounts, reducing installation time and ensuring stable positioning. Built-in USB Type-A and Type-C ports provide convenient front-accessible connections for barcode scanners, keyboards, payment peripherals or USB storage devices. The replacement enclosure is manufactured to match the device’s external dimensions and connector alignment for a straightforward swap, helping maintain device aesthetics and functional access to ports.

Suitable for

• Retail point-of-sale terminals requiring VESA mounting and accessible USB ports
• Touchscreen kiosks and self-service stations with limited rear access
• Countertop installations where space-saving vertical mounting is needed
• Environments needing reliable cable routing and secure mount attachment

Key specifications

• VESA mounting pattern: 100 x 100 mm
• Integrated ports: 1 × USB Type-A, 1 × USB Type-C
• Compatibility: designed for the SUNMI V3 MIX device form factor
• Material: durable enclosure material suitable for commercial use
• Mounting orientation: supports vertical and horizontal VESA attachments

How to use

Power off the SUNMI V3 MIX and disconnect all cables before replacing the rear cover. Remove the original rear enclosure according to the device’s service instructions, align the replacement cover so that internal connectors and cable passages match the device ports, and secure it with the original mounting screws. After installation, attach the device to a VESA 100x100 mount or arm using appropriate screws and hardware. Reconnect power and peripherals to the exposed USB Type‑A and Type‑C ports and verify device operation.

Recommendations

Use only VESA-compatible mounting hardware rated for the device weight and follow the SUNMI V3 MIX service guidelines when swapping the rear cover. Avoid forcing connectors or overtightening screws to prevent damage. For environments with heavy cable movement, consider adding strain relief to USB leads to prolong port life.
