Cornice per shutter e placche di copertura Digitus DN-93802-5-SH

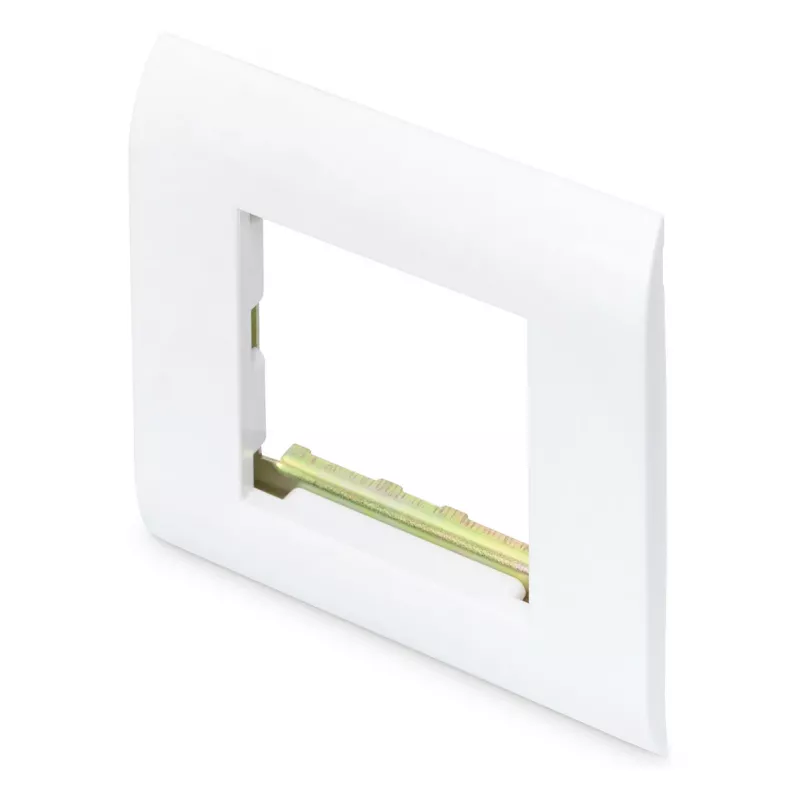

The DIGITUS Frame 80 x 80 mm for Copper and Multimedia Keystone Jacks accepts all french layout shutters and face plates (22.5 x 45 mm and 45 x 45 mm). The frame is intended for RJ-45 sockets, comes in white and measures 80 x 80 mm with a lightweight construction suitable for standard wall boxes.

Advantages

The frame provides a standardised mounting option for keystone modules and shutters in French-layout face plates, ensuring compatibility with 22.5 x 45 mm and 45 x 45 mm inserts. Its compact 80 x 80 mm size and 40 g weight make it easy to handle and install while maintaining a discreet appearance in residential or office environments.

Suitable for

• Mounting RJ-45 keystone jacks
• Using French-layout shutters and face plates (22.5 x 45 mm and 45 x 45 mm)
• Standard 80 x 80 mm wall box installations
• Home and office cable outlet organization

Key specifications

• Dimensions: 80 x 80 mm
• Colour: White
• Compatible face plate sizes: 22.5 x 45 mm and 45 x 45 mm
• Intended module type: RJ-45 / keystone jacks
• Weight: approx. 40 g

How to use

Position the frame into a standard 80 x 80 mm wall box and secure it according to the box manufacturer’s instructions. Insert the appropriate French-layout shutter or face plate (22.5 x 45 mm or 45 x 45 mm) and snap or screw in the keystone RJ-45 jack. Ensure cables are terminated correctly before final assembly and that the module is seated flush with the face plate.

Recommendations

Use the frame with compatible French-layout face plates and properly terminated keystone jacks. Verify wall box depth and mounting screws for a secure fit; avoid forcing oversized modules into the frame.
