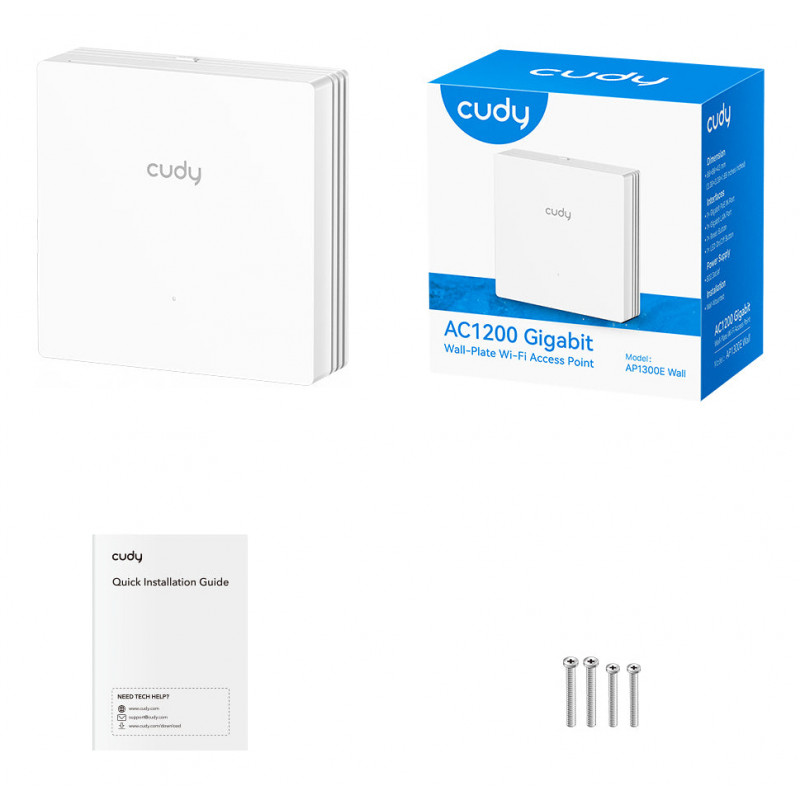

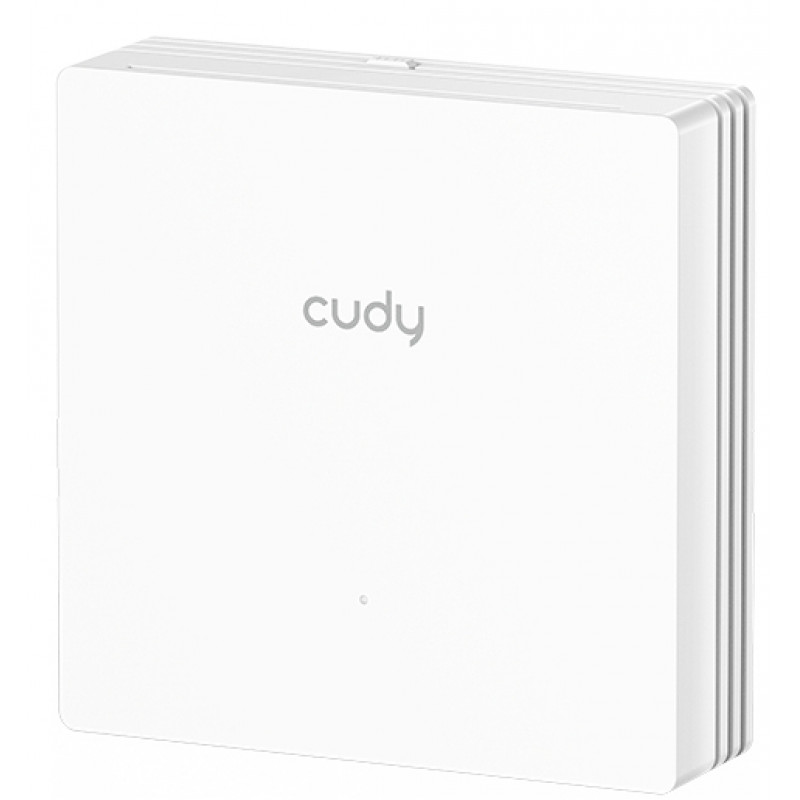

Cudy AC1200 access point dual-band da parete AP1300E WALL

The Cudy AP1300E WALL stands out by combining a Gigabit PoE uplink with three Fast Ethernet downlink ports in a discreet wall-plate form factor, making it ideal for in-room connectivity without extra cabling. Unlike typical ceiling-mounted access points, it blends into standard wall sockets while delivering AC1200 dual-band Wi-Fi and pass-through PoE for a downstream device.

Highlights

• Dual-band AC1200 Wi-Fi: up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz

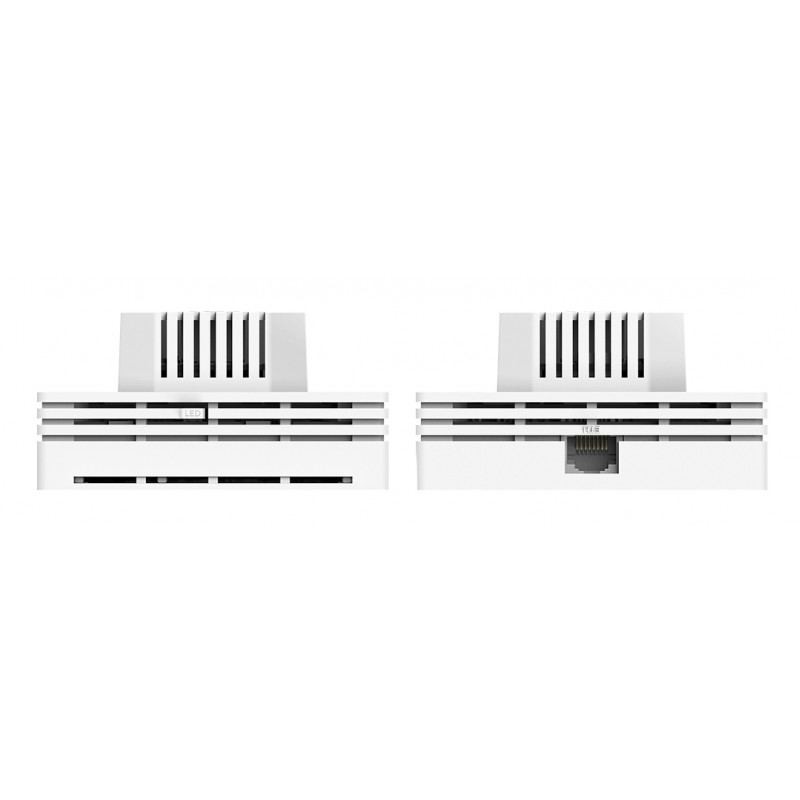

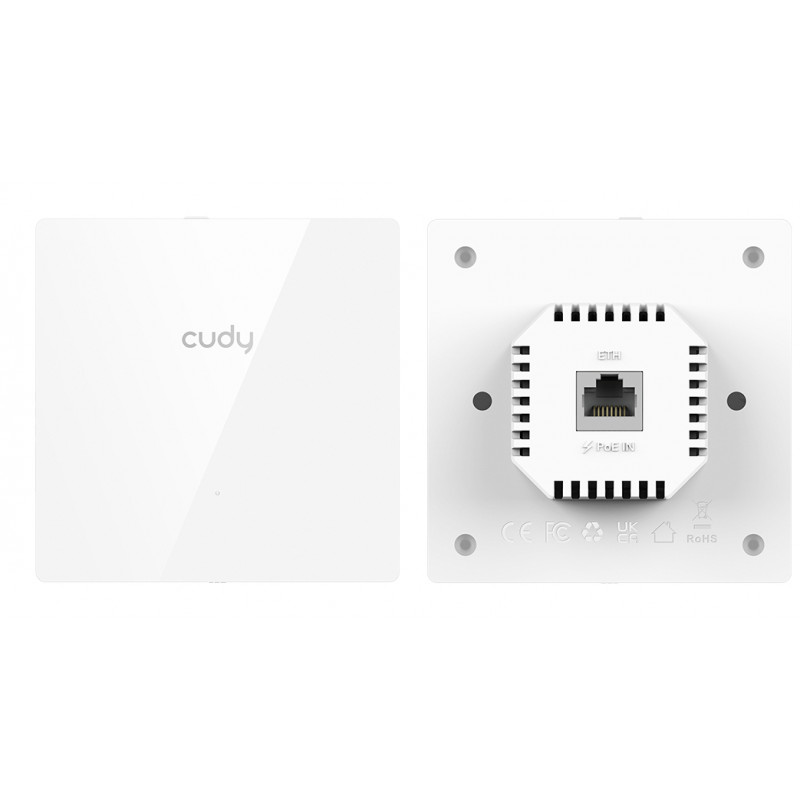

• Wall-plate design with 1x Gigabit PoE-in uplink and 3x Fast Ethernet downlink ports (1x PoE-out)
• 802.3af/at PoE powered, with 802.3af PoE pass-through on one downlink port
• Centralized management via Cudy Controller, plus guest network and up to 8 SSIDs
• Advanced wireless features: band steering, airtime fairness, beamforming, and fast roaming (802.11k/v/r)

In daily use

Mount the AP1300E WALL into a standard wall box and connect a single PoE cable for both power and data. The three downlink ports let you connect wired devices like IP phones or laptops directly at the wall, while the PoE-out port can power a compatible device such as a VoIP phone. With VLAN tagging and multiple SSIDs, you can separate guest and corporate traffic easily.

Full specifications

• Wi-Fi standard: IEEE 802.11ac/n/g/b/a (Wi-Fi 5)
• Frequency bands: 2.4 GHz and 5 GHz (dual-band)
• 2.4 GHz speed: up to 300 Mbps
• 5 GHz speed: up to 867 Mbps
• Total Wi-Fi speed: AC1200 (1167 Mbps)
• Antennas: 2x internal dual-band
• MIMO: 2x2
• Ethernet uplink: 1x Gigabit Ethernet (PoE in)
• Ethernet downlink: 3x Fast Ethernet (1x PoE out)
• PoE input: 802.3af/at
• PoE output: 802.3af on one downlink port
• Wireless security: WPA-PSK/WPA2-PSK, WPA/WPA2
• Management: Web UI, Cudy Controller
• Guest network: Yes
• Multiple SSIDs: up to 8 (4 per band)
• VLAN support: 802.1Q tagging
• Advanced features: band steering, airtime fairness, beamforming, fast roaming (802.11k/v/r)

Final note

The AP1300E WALL is a compact, PoE-powered wall-plate access point that delivers reliable AC1200 Wi-Fi and wired connectivity for hotel rooms, dormitories, and offices.
