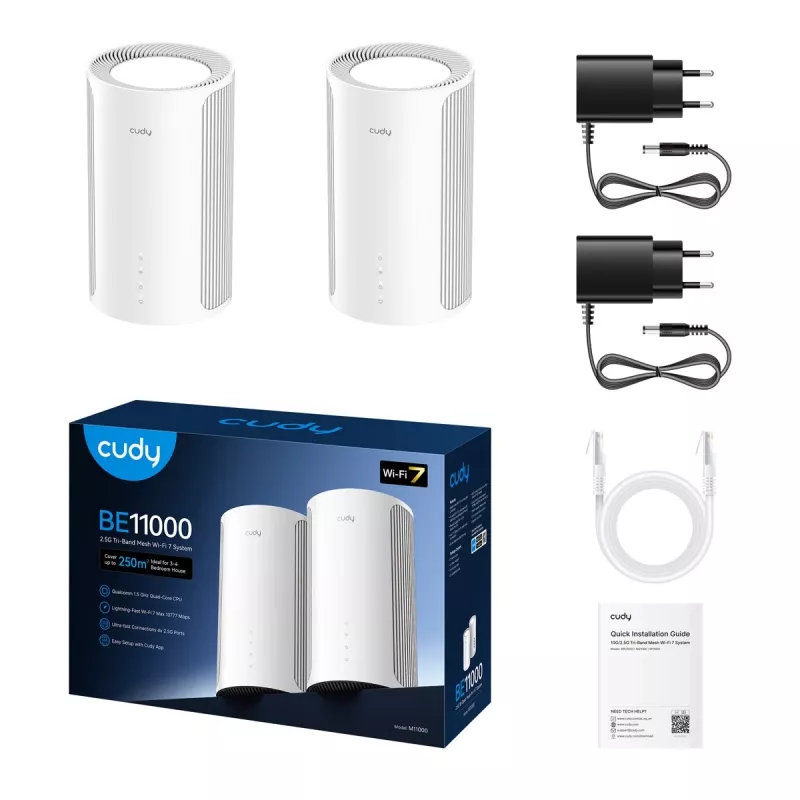

Cudy M11000 tri-band (2,4 GHz / 5 GHz / 6 GHz) Wi-Fi 7 (802.11be) bianco 4 interne

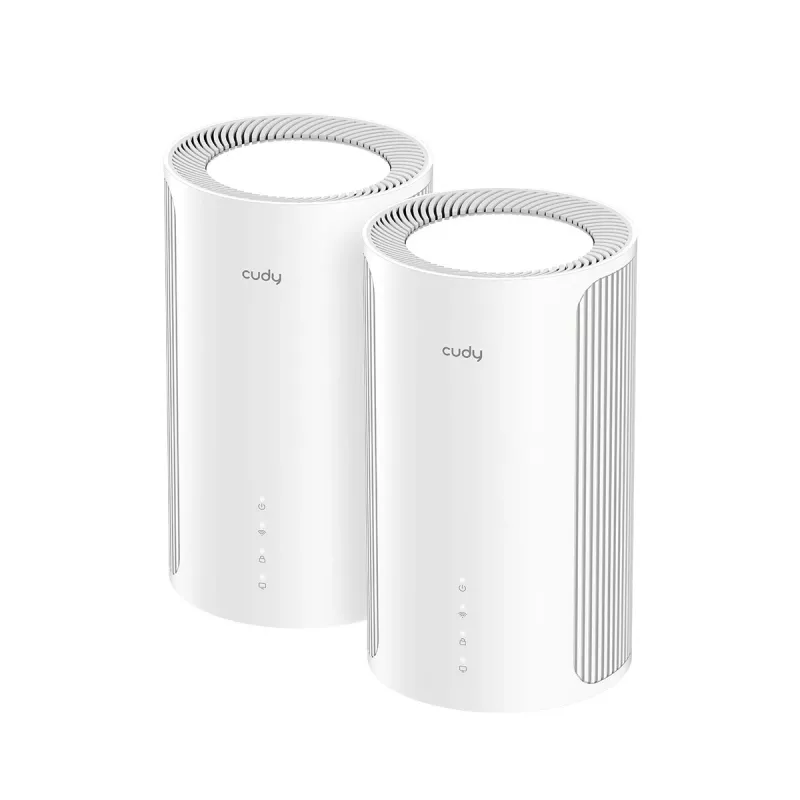

The Cudy M11000 is a tri-band Wi‑Fi 7 mesh router designed for high-throughput and low-latency home or small office networks. The device supports 2.4 GHz, 5 GHz and 6 GHz bands and implements the 802.11be standard to deliver multi-gigabit wireless performance. Internal antennas keep the unit compact and visually unobtrusive while the built-in Qualcomm quad‑core 1.5 GHz processor, combined with 128 MB RAM and 512 MB flash, handles multiple concurrent connections and mesh management. The system supports internet access up to 2.5 Gbps and includes wired connectivity options for stable backhaul or wired clients.

Advantages

The Cudy M11000 provides tri-band Wi‑Fi 7 performance with Multi-Link Operation (MLO) to reduce latency and increase throughput across supported devices. Internal antennas and a compact footprint make placement flexible without visible external masts. A quad‑core CPU and dedicated memory allow the router to manage large numbers of connected devices and advanced features such as VPN server/client and cloud app control. The mesh capability enables seamless coverage extension over up to approximately 260 m² per unit in typical home environments.

Suitable for

• High-speed internet connections up to 2.5 Gbps
• Homes or small offices requiring wide wireless coverage and stable mesh roaming
• Latency-sensitive activities such as cloud gaming, video conferencing, and real-time collaboration
• Multi-device households with streaming, smart home devices and IoT equipment
• Use cases that benefit from wired aggregation and multi-gig Ethernet backhaul

Key specifications

• Wi‑Fi standard: 802.11be (Wi‑Fi 7), tri-band 2.4 / 5 / 6 GHz
• Peak WLAN data rate: up to 4324 Mbit/s (combined across bands as specified)
• CPU: Qualcomm quad‑core, 1.5 GHz
• Memory: 128 MB RAM, 512 MB flash

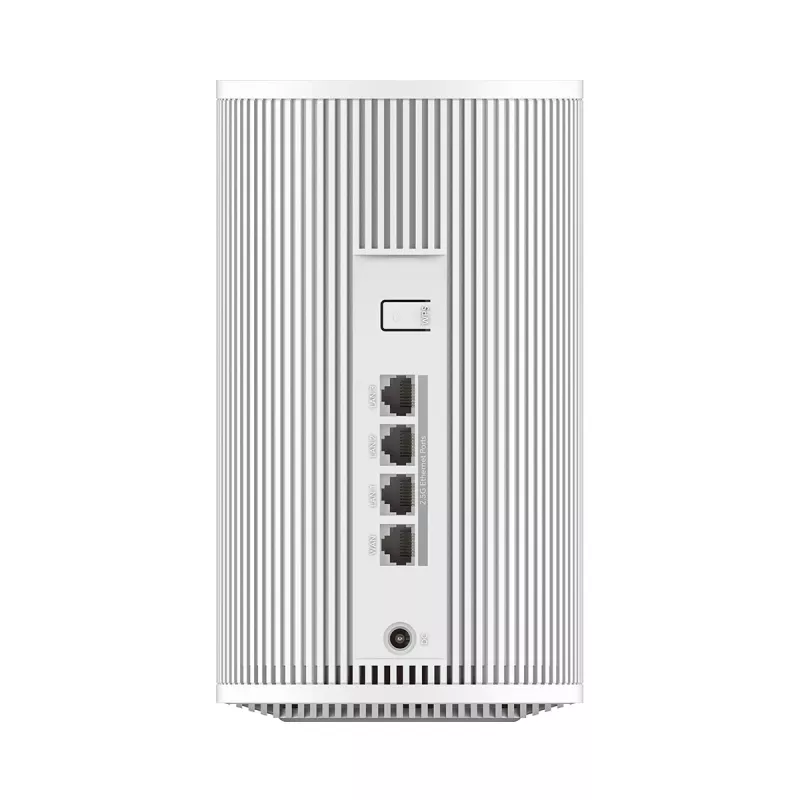

• Ethernet: 4 × 2.5 G Ethernet ports, Ethernet WAN support
• Maximum connected devices: up to 200
• Internal antennas: 6 (integrated design)
• Maximum coverage (typical): up to 260 m² per unit
• Power: AC input 100–240 V, 50/60 Hz; adapter output 12 V
• Physical dimensions: 116 × 116 × 202 mm (W × D × H)

How to use

Place the Cudy M11000 in a central location for best wireless distribution and connect the Ethernet WAN port to your modem or upstream network. Power the unit using the supplied 12 V adapter and complete initial setup with the Cudy App or through the web interface to configure SSIDs, passwords, and mesh pairing. If deploying a mesh system, position additional units to achieve overlapping coverage and follow the app prompts to add nodes. Use the 2.5 G Ethernet ports for wired devices or to establish a multi‑gig backhaul for improved stability.

Recommendations

For optimal results enable Multi‑Link Operation (MLO) on compatible client devices, keep firmware updated via the app or cloud control, and plan node placement to avoid large physical obstructions. Use wired backhaul where possible when linking multiple mesh nodes to preserve wireless capacity for client devices.
