Custodia da parete Axis 02066-001

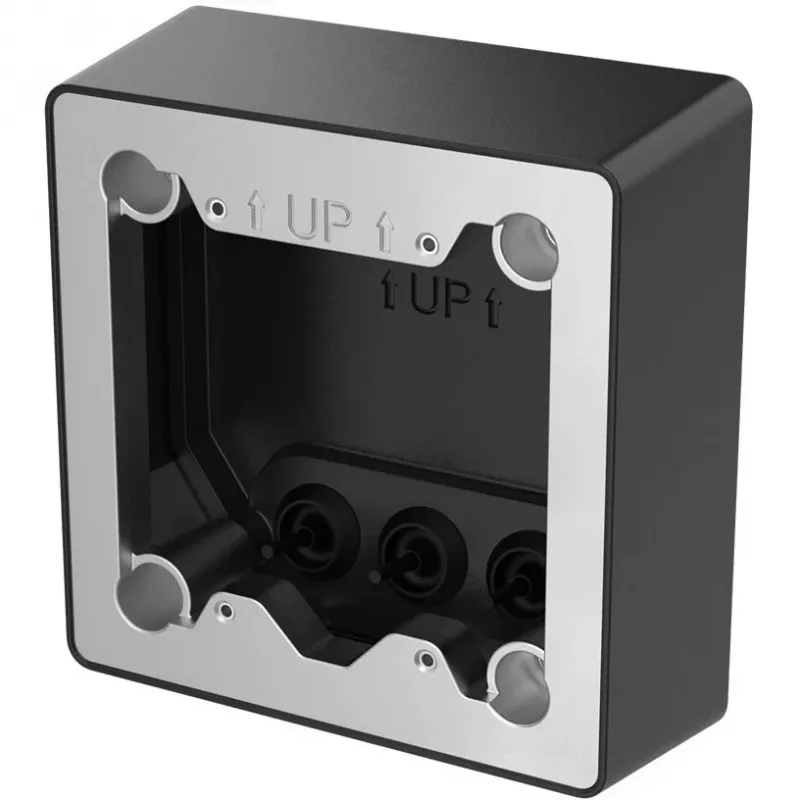

The Axis 02066-001 surface mount box is a stainless steel wall mount accessory designed for use with the AXIS I8016-LVE Network Video Intercom. It provides a sturdy, vandal-resistant enclosure with an IK10 impact rating and IP69 ingress protection, offering a professional and secure mounting solution. The unit has a black finish and external dimensions of approximately 129 mm (width) × 51 mm (depth) × 135 mm (height).

Advantages

Constructed from durable stainless steel with a black finish, the surface mount box resists corrosion and wear while matching the appearance of Axis intercom products. The IK10 rating ensures high impact resistance, and the IP69 classification provides protection against dust and high-pressure, high-temperature water jets, making the box suitable for demanding indoor and outdoor environments. Its form factor simplifies mounting of the AXIS I8016-LVE, enabling a neat and secure installation.

Suitable for

• Mounting the AXIS I8016-LVE Network Video Intercom
• Indoor and outdoor intercom installations requiring vandal resistance
• Environments where high ingress protection from dust and water is needed
• Commercial, industrial, and public-access points

Key specifications

• Brand: AXIS
• Model / MPN: 02066-001
• EAN: 7331021071865
• Material: Stainless steel
• Finish: Black
• Compatibility: For use with AXIS I8016-LVE Network Video Intercom
• Impact rating: IK10
• Ingress protection: IP69
• Dimensions (approx.): 129 mm (W) × 51 mm (D) × 135 mm (H)

How to use

Prepare the mounting surface and route any required cables. Position the Axis 02066-001 surface mount box at the desired location and secure it to the wall using appropriate fasteners for the substrate. Install the AXIS I8016-LVE Network Video Intercom into the box following the intercom manufacturer’s installation instructions, connect the cables, and close the enclosure. Verify the intercom alignment and test device functions after installation.

Recommendations

For reliable long-term performance, use corrosion-resistant fasteners and follow local installation regulations. Verify that cable entries and seals are correctly installed to maintain the IP69 protection level and periodically inspect the mounting box for damage after extreme impacts or environmental exposure.
