Custodia vuota per allarme Pulsar AWO200EMT 17/40/DSPR/L/EMPTY bianco

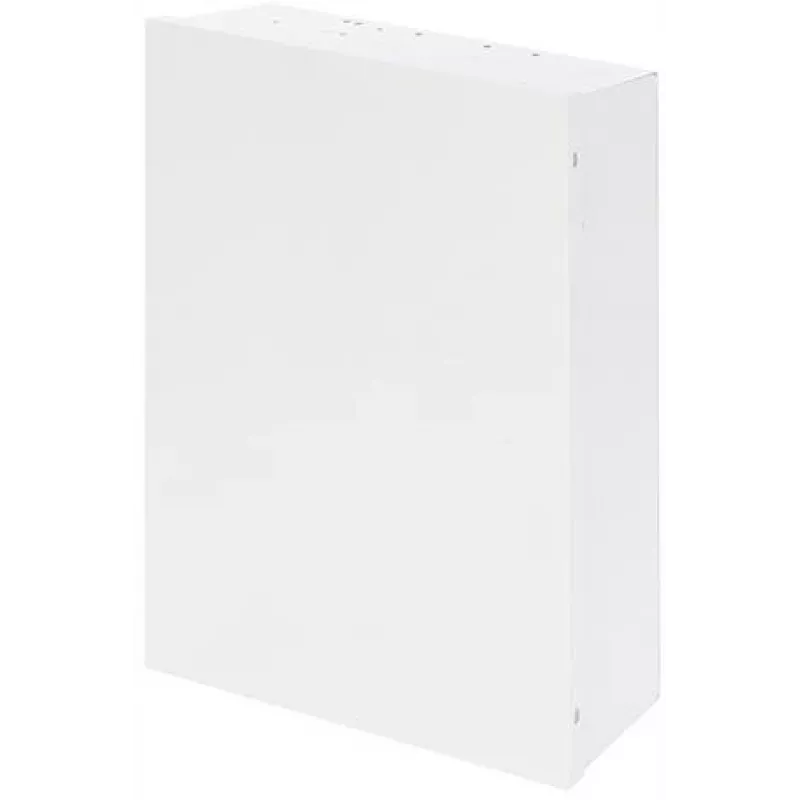

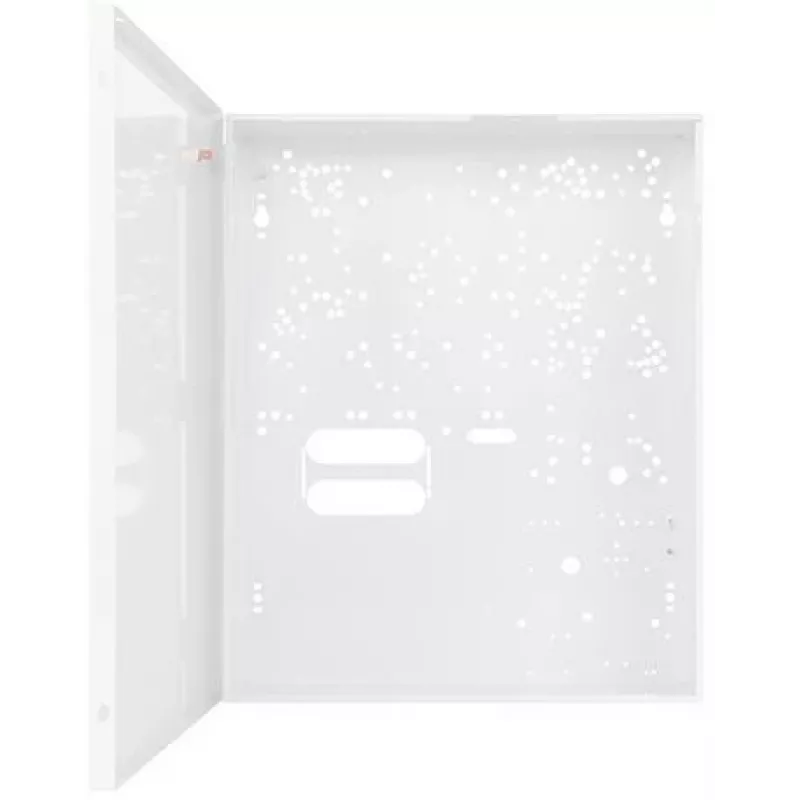

The Pulsar AWO200EMT is a high-quality empty alarm enclosure designed for housing alarm systems, access control, and CCTV equipment. Manufactured from durable steel sheet with a thickness of 0.8 mm, this surface-mounted enclosure offers robust protection for your electronic components. Finished in white (RAL 9003), it blends seamlessly into any environment.

Advantages

This enclosure features a tamper-proof microswitch for door opening detection, ensuring security. The key lock (cylinder lock) provides controlled access. With support for batteries up to 17 Ah (e.g., 12V/17Ah), it is ideal for backup power applications. The 180-degree door opening angle facilitates easy installation and maintenance.

Suitable for

• Alarm systems
• Access control panels
• CCTV equipment
• Universal mounting of various control panels and modules

Key specifications

• Enclosure Type: Metal Enclosure
• Material: Steel Sheet, 0.8 mm thickness
• Colour: White (RAL 9003)
• Mounting: Surface Mounted
• Tamper Protection: Microswitch (door opening detection)
• Lock Type: Key Lock (Cylinder Lock)
• Battery Capacity Support: Up to 17 Ah
• IP Rating: IP20
• Cable Entry: Multiple knock-out holes
• Ventilation: Yes
• Door Opening Angle: 180 degrees
• Operating Temperature: -10°C to +40°C
• Relative Humidity: 10% to 90% non-condensing

Recommendations

This empty enclosure is perfect for custom installations where you need to integrate your own equipment. Ensure proper ventilation and cable management for optimal performance.
