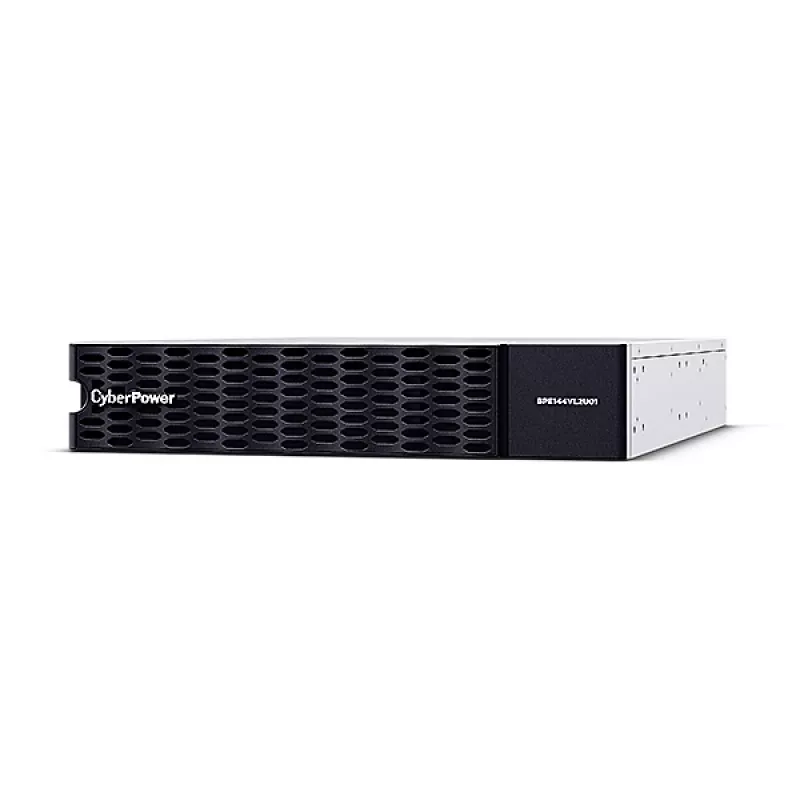

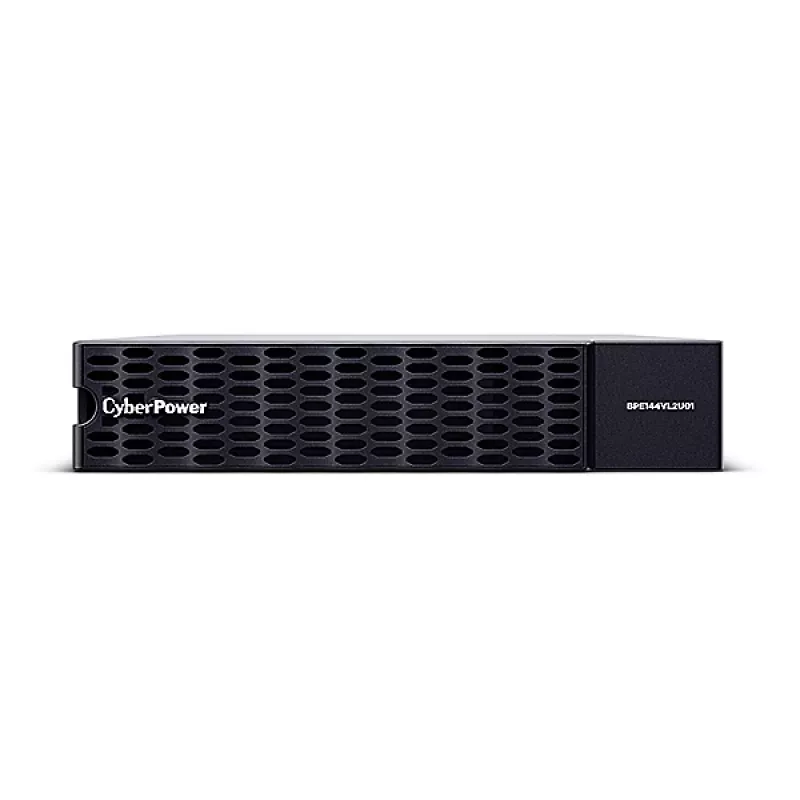

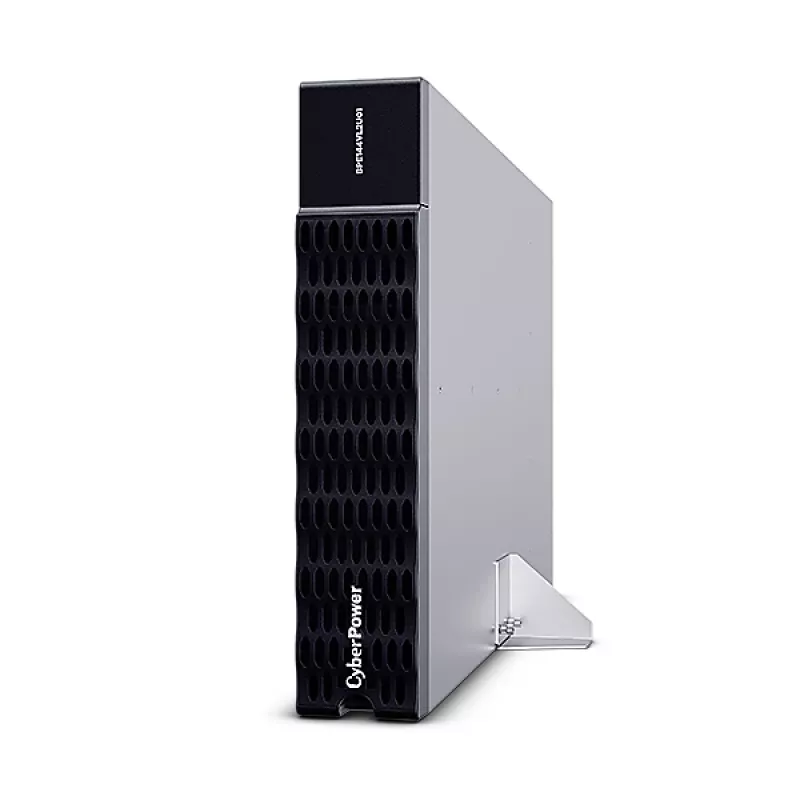

CyberPower BPE144VL2U01 armadio batteria UPS rack/tower

CyberPower BPE144VL2U01 is an Extended Battery Module (EBM) for rackmount or tower use that extends UPS runtime during power interruptions. It houses sealed lead-acid (VRLA) batteries with 12 V / 9 Ah cells in a 2U metal enclosure and supports DC plug-and-play connectors for adding multiple EBMs. The built-in charger allows the cabinet to charge directly from utility power, reducing total charging time when several EBMs are used. The unit is compliant with BSMI, CE, EAC, RCM and RoHS standards and has dimensions of 433 mm (W) × 720 mm (D) × 86.5 mm (H), weight 44 kg.

Advantages

The battery cabinet provides hot-swappable battery packs for safe replacement without shutting down connected loads. Its built-in charger design enables direct charging from mains, shortening charging cycles when multiple cabinets are deployed. The sealed lead-acid batteries (VRLA) and industrial-grade metal enclosure offer stable, safe operation suitable for critical environments, while DC plug-and-play connectors simplify expansion.

Suitable for

• Data centers and server rooms
• Network and telecommunications equipment
• Industrial control systems
• Office UPS systems requiring extended runtime

Key specifications

• Model: CyberPower BPE144VL2U01
• Form factor: 2U rackmount / tower-capable cabinet
• Battery type: Sealed lead-acid (VRLA)
• Cell rating: 12 V, 9 Ah per battery
• Dimensions (W×D×H): 433 × 720 × 86.5 mm
• Weight: 44 kg
• Colour: Silver
• Certifications: BSMI, CE, EAC, RCM, RoHS

How to use

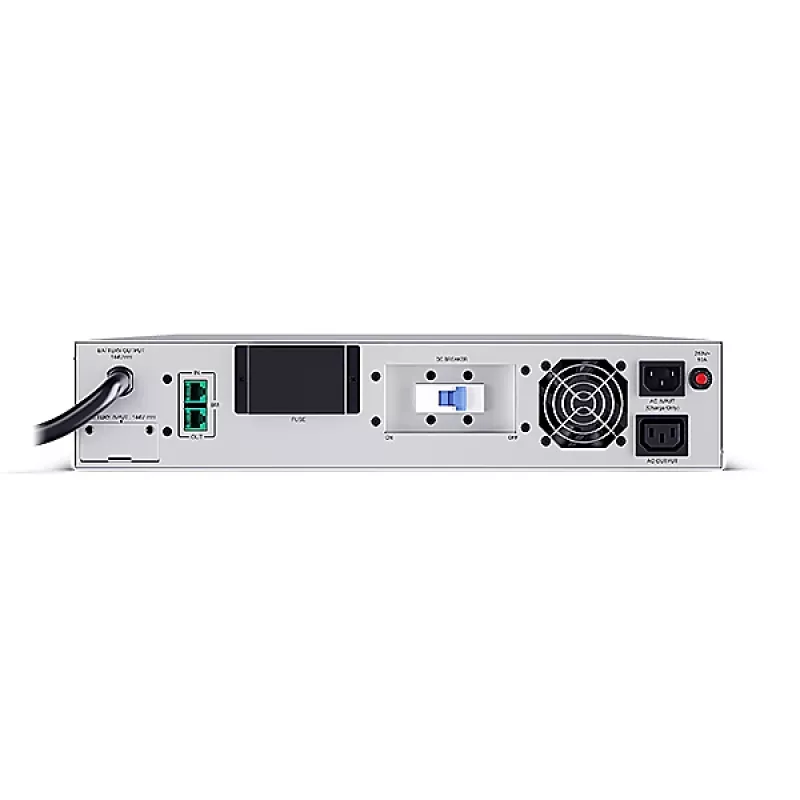

Install the BPE144VL2U01 in a compatible UPS rack or place it as a tower unit following the UPS and cabinet installation guidelines. Connect the DC plug-and-play connector between the UPS and the EBM; multiple EBMs can be linked the same way to increase runtime. For regular operation, the cabinet can be charged directly from the mains using its built-in charger. Replace hot-swappable battery packs while the unit is online by following safety procedures and the manufacturer’s instructions to avoid interrupting connected loads.

Recommendations

Place the cabinet in a well-ventilated, temperature-controlled environment and ensure regular inspection of battery health. Use compatible CyberPower UPS models and recommended connection cables. Follow local regulations for disposal of lead-acid batteries.
