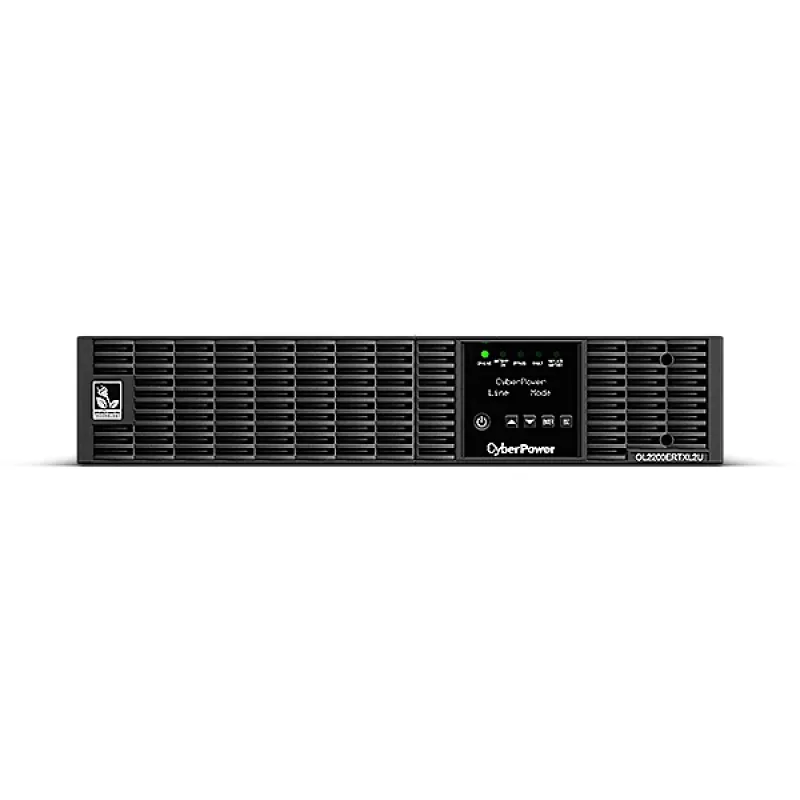

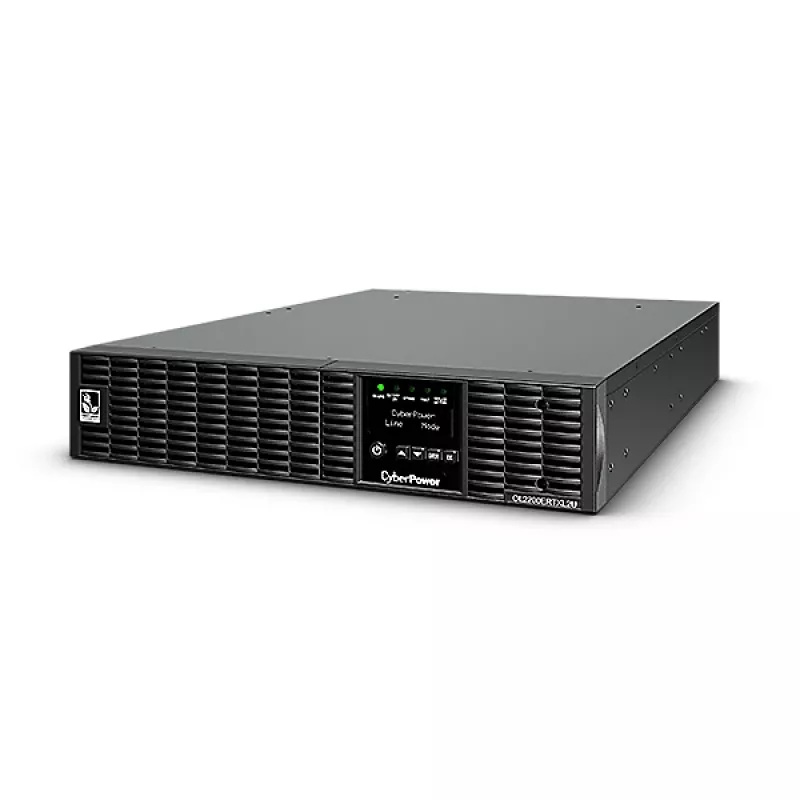

CyberPower OL2200ERTXL2U UPS (gruppo di continuità) doppia conversione (online) 2,2 kVA 2000 W 9 prese AC

The CyberPower OL2200ERTXL2U is a double-conversion online UPS designed for rackmount or tower installation, delivering continuous clean power for critical IT equipment. With a rated output power of 2.2 kVA (2000 W) and a sealed lead acid battery configuration at 72 V, the unit provides short-term backup and voltage regulation to protect servers, network devices and telecommunications hardware from outages and power anomalies. The black metal enclosure is built for data center and equipment-room environments and meets CE and RoHS standards for safety and environmental compliance.

Advantages

This UPS implements double-conversion online topology to provide consistent, regulated AC output independent of input fluctuations, ensuring zero transfer time to battery. The unit includes multiple AC outlets to support both C13 and C19 connections, an integrated communication interface, and a sealed battery design that minimizes maintenance needs. The rugged metal chassis and rack/tower form factor allow flexible mounting options in server racks or on the floor, while compliance with common safety and environmental directives simplifies deployment in professional environments.

Suitable for

• Small to medium data centers and server racks
• Network and telecommunication equipment rooms
• Workstations and storage systems requiring clean, uninterrupted power
• Edge computing sites and remote IT closets

Key specifications

• Output power capacity: 2.2 kVA
• Output power: 2000 W
• Topology: Double-conversion online (continuous AC inverter)
• Battery type: Sealed lead acid, nominal system voltage 72 V
• Typical backup time: approximately 6.5 minutes at full load (actual runtime depends on load level)

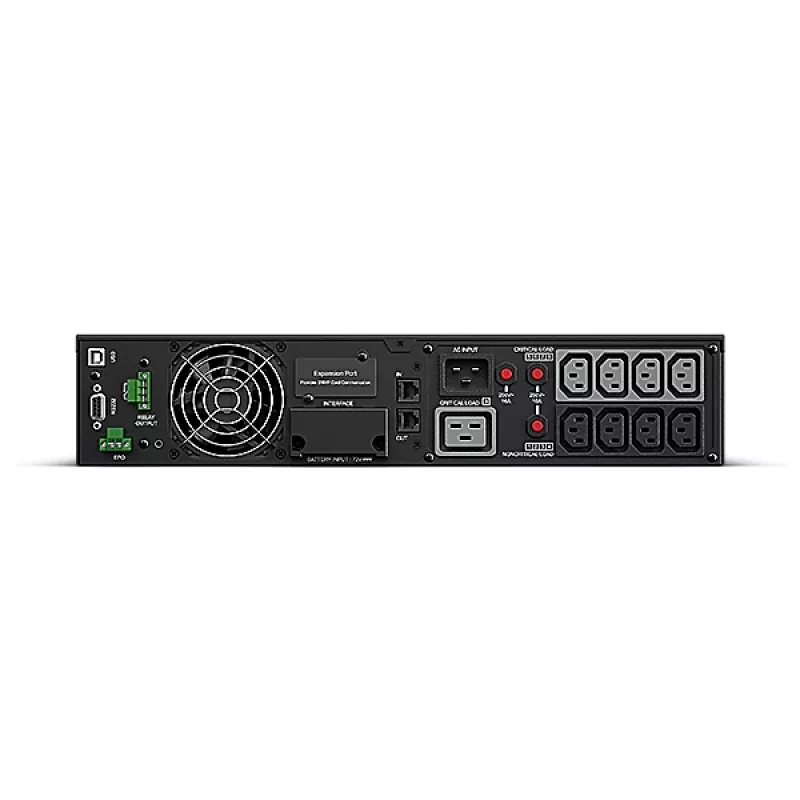

• Number and type of outlets: 9 AC outlets (combination of C13 and C19)

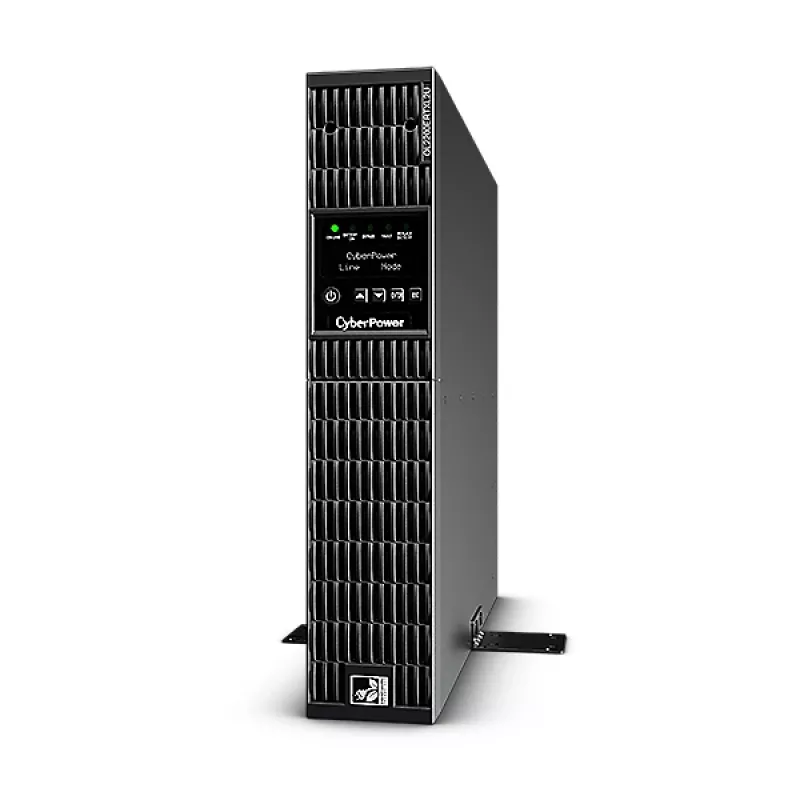

• Enclosure: Rackmount / tower convertible metal chassis, black finish
• Interfaces: onboard communication ports for management and monitoring (including USB 2.0)
• Weight: 31 kg
• Standards: CE and RoHS compliance

How to use

Install the UPS in a suitable rack bay or place it on a stable surface in tower orientation according to the included mechanical instructions. Connect critical equipment to the provided AC outlets using appropriate C13 or C19 power cords. Before connecting loads, verify that the UPS is powered and the battery is charged; follow the manufacturer’s startup sequence for configuring output and communication settings. Use the integrated communication interface and management software or network management card (if fitted) to monitor load, battery status and event logs. Perform periodic self-tests and visual inspections of connections and ventilation areas to ensure continued operation.

Recommendations

For reliable operation, place the UPS in a temperature-controlled and well-ventilated environment, avoid blocking air vents, and ensure adequate clearance for rack airflow. Match total connected load to the unit’s 2000 W capacity and plan additional runtime with external battery modules if extended backup is required. Schedule regular battery replacement according to usage and environmental conditions and configure monitoring alerts to detect power events promptly.
