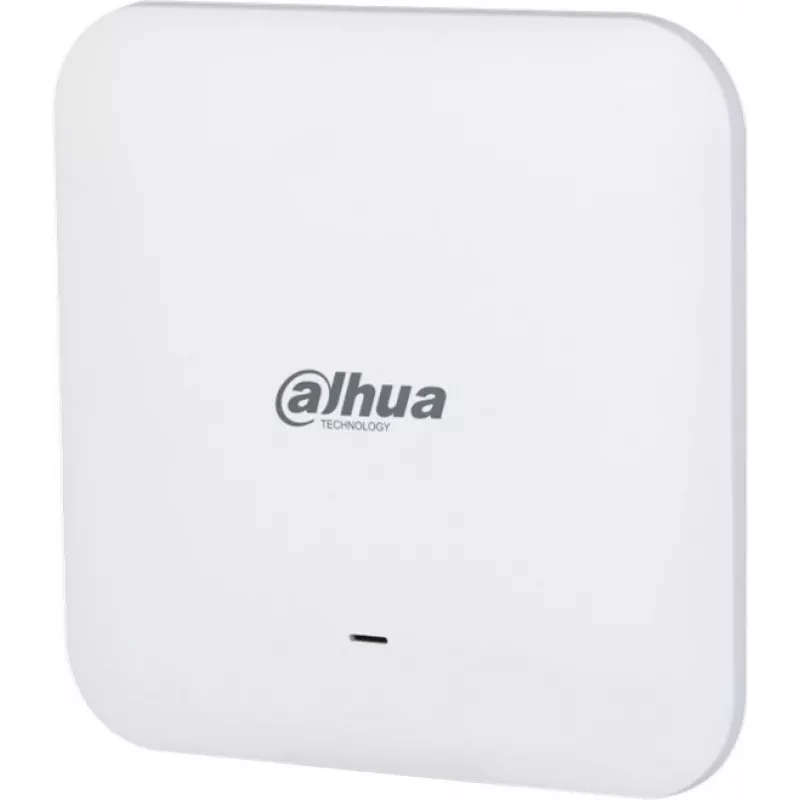

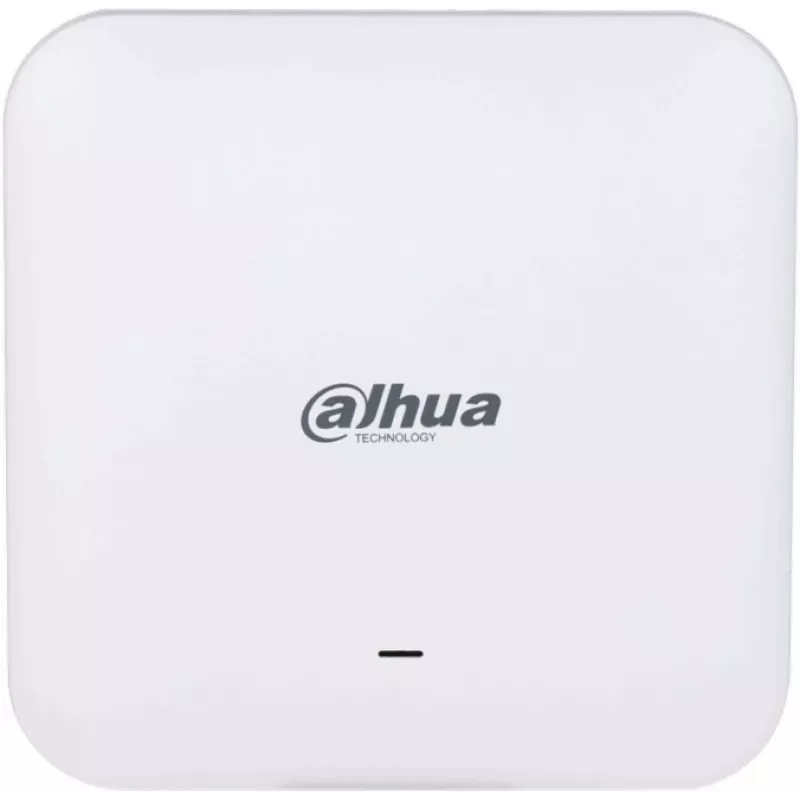

Dahua EAP5212-C Wi-Fi 6 AX1800 access point dual-band da soffitto/parete, 1775 Mbit/s, PoE, Gigabit Ethernet

Experience the next generation of wireless connectivity with the Dahua EAP5212-C, a high-performance Wi-Fi 6 (802.11ax) access point delivering combined speeds of up to 1775 Mbps. This dual-band device operates on both 2.4 GHz and 5 GHz frequencies, ensuring seamless connectivity for bandwidth-intensive applications. With support for up to 128 concurrent users, it is ideal for offices, retail spaces, and hospitality environments.

Overview

The EAP5212-C is engineered for reliable, high-density wireless coverage. It features 2x2 MU-MIMO technology and OFDMA, which significantly improve efficiency and reduce latency. The integrated omni-directional antennas provide consistent signal distribution, while the Gigabit Ethernet port with PoE support simplifies installation. Manage the access point locally via web GUI, remotely through Dahua Cloud, or centrally with an AC controller. Advanced security protocols including WPA3 and MAC filtering protect your network from unauthorized access.

What stands out

• Wi-Fi 6 technology with combined speeds up to 1775 Mbps (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)
• Dual-band operation for flexible deployment and reduced interference
• Supports up to 128 concurrent users, perfect for high-density environments
• Power over Ethernet (802.3af/at) for easy installation without separate power cables
• Advanced features: OFDMA, MU-MIMO, beamforming, seamless roaming, and VLAN support
• Robust security with WPA3, WPA/WPA2-Enterprise, and MAC filtering
• Ceiling or wall mountable with included mounting kit

Technical details

• Wi-Fi Standard: IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6)
• Frequency Bands: 2.4 GHz and 5 GHz (dual-band)
• Max Data Rates: 574 Mbps (2.4 GHz), 1201 Mbps (5 GHz), total 1775 Mbps
• Ethernet Port: 1 x Gigabit RJ-45
• PoE Support: 802.3af/at (PoE/PoE+)
• Antenna: Internal omni-directional, 4 dBi (2.4 GHz), 5 dBi (5 GHz)
• MIMO: 2x2
• Concurrent Users: Up to 128
• Power Supply: 12V DC / 1.5A or PoE
• Security: WPA/WPA2-PSK, WPA/WPA2-Enterprise, WPA3, MAC filtering, hidden SSID
• Management: Web GUI, Dahua Cloud, AC Controller
• Mounting: Ceiling or wall (mounting kit included)
• Operating Temperature: -10°C to +55°C
• Advanced Features: OFDMA, MU-MIMO, beamforming, seamless roaming, VLAN, QoS

Our verdict

The Dahua EAP5212-C is a future-proof access point that combines Wi-Fi 6 performance, robust security, and flexible management options. Its high user capacity and PoE support make it an excellent choice for businesses seeking reliable, scalable wireless coverage.
