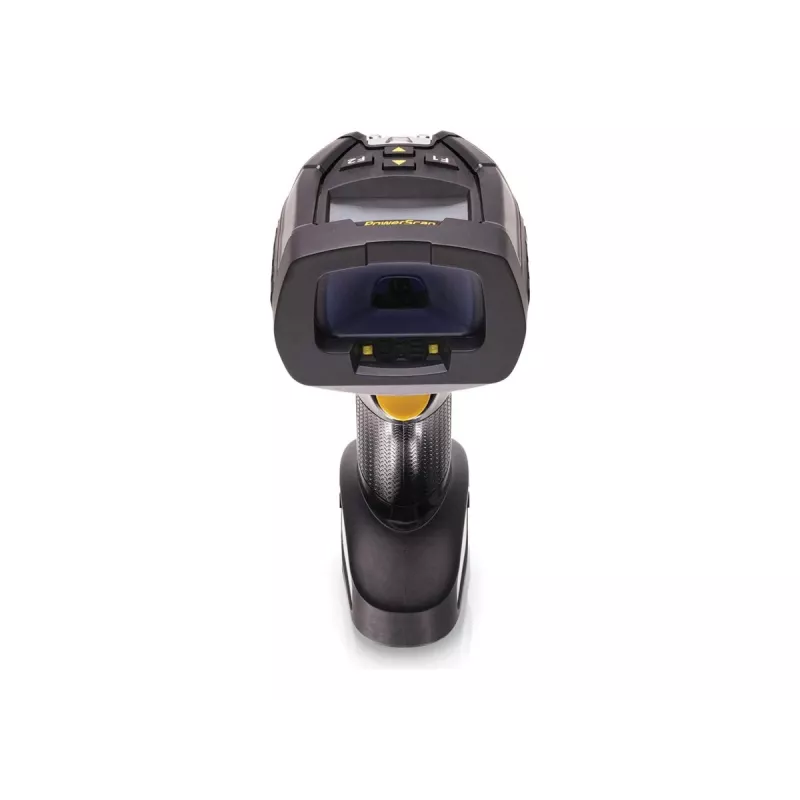

Datalogic PowerScan PM9600-DPX Direct Part Marking 433 MHz display/tastiera a 4 tasti rimovibile - scanner di codici a barre

With an IP65-rated housing and 2.5 m drop resistance onto concrete, the Datalogic PowerScan PM9600-DPX is built to survive the toughest industrial environments while delivering uncompromising Direct Part Marking (DPM) performance.

Overview

The PowerScan PM9600-DPX is a cordless industrial handheld barcode scanner engineered for manufacturing, automotive, aerospace, logistics, and warehousing applications. It combines a high-performance 2D area imager with dedicated DPM decoding algorithms, allowing it to read dot peen, laser etch, inkjet, chemical etch, and mold marks with exceptional reliability. The scanner operates on a 433 MHz radio frequency, providing a typical open-air range of up to 50 m, and features a removable 3350 mAh lithium-ion battery for extended shifts.

What stands out

• Direct Part Marking (DPM) capability for reading low-contrast and damaged codes
• Rugged IP65 enclosure with 2.5 m drop resistance onto concrete
• Intuitive 4-key keypad and display for easy configuration and data entry
• Datalogic 'Green Spot' technology for visual good-read confirmation
• Removable battery design for hot-swapping and reduced downtime

Technical details

• Scanner type: 2D area imager, industrial handheld
• Connectivity: Cordless RF wireless at 433 MHz
• User interface: Display and 4-key keypad
• Supported symbologies: 1D, 2D, Postal, Stacked, DPM codes
• Battery: Removable lithium-ion, 3350 mAh
• Operating temperature: -20°C to 50°C (-4°F to 122°F)
• Host interface (via cradle): USB, RS-232, Keyboard Wedge, Ethernet
• Aiming system: 4-dot aimer with central cross
• Illumination: White LED
• Read indicators: Beeper, Green Spot, Good Read LED
• Colour: Black/Yellow

Our verdict

The Datalogic PowerScan PM9600-DPX is a top-tier choice for operations that demand reliable DPM scanning in harsh conditions. Its long-range wireless connectivity and rugged build make it a workhorse for any industrial floor.
