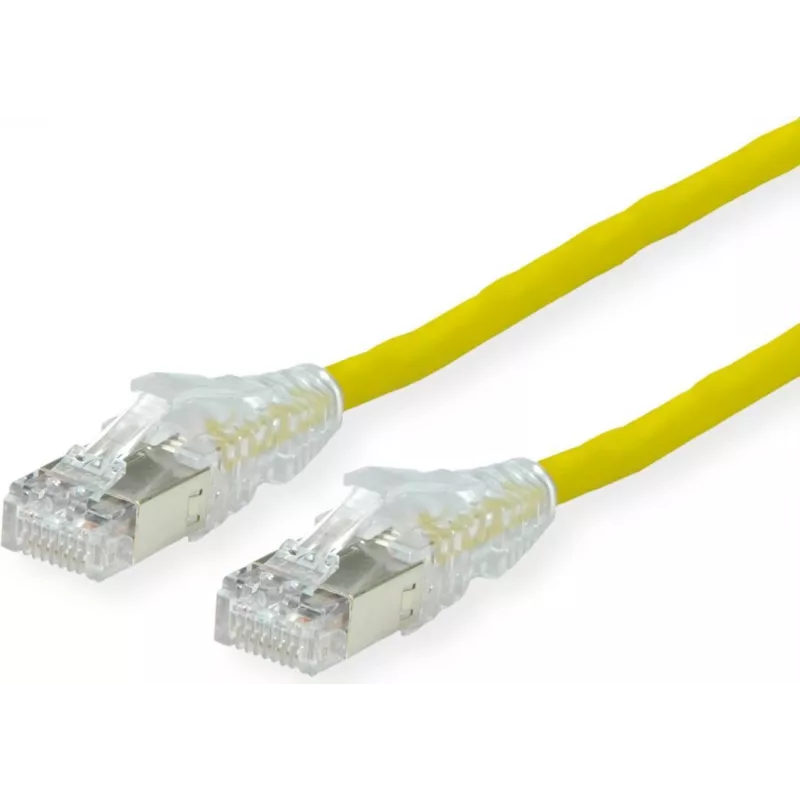

Dätwyler Cat.6A H AMP v2 cavo patch, giallo, 20 m, SFTP, LS0H, CU 7702 flex

The Dätwyler Cat.6A H AMP v2 patch cable is a high-performance network cable designed for demanding data center and enterprise environments. With a length of 20 meters and a vibrant yellow color, this SFTP (Shielded Foiled Twisted Pair) cable ensures reliable, high-speed data transmission while minimizing electromagnetic interference. The cable features a flexible copper conductor (CU 7702 flex) and a low smoke zero halogen (LS0H) jacket, making it ideal for installations where safety and flexibility are paramount.

Advantages

This cable offers exceptional performance for Gigabit Ethernet and 10GBASE-T applications (up to 55m). The AMP v2 connectors from TE Connectivity provide a secure and durable connection. The LS0H jacket reduces toxic smoke in case of fire, enhancing safety in occupied spaces. The stranded copper conductor ensures flexibility for easy routing in tight spaces.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• High-speed data transmission (up to 10 Gbps)
• Installations requiring low smoke and halogen-free materials

Key specifications

• Cable Category: Cat.6A (Class EA)
• Cable Type: SFTP (Shielded Foiled Twisted Pair)
• Length: 20 m
• Color: Yellow
• Jacket Material: LS0H (Low Smoke Zero Halogen)
• Conductor Material: Copper (CU), stranded
• Connector Type: RJ45 (both ends)
• Connector Series: AMP v2 (TE Connectivity)
• Wiring Standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Frequency Range: Up to 250 MHz
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flammability Rating: IEC 60332-1-2
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, pair this cable with compatible Cat.6A or higher networking equipment. Ensure proper cable management to maintain signal integrity.
