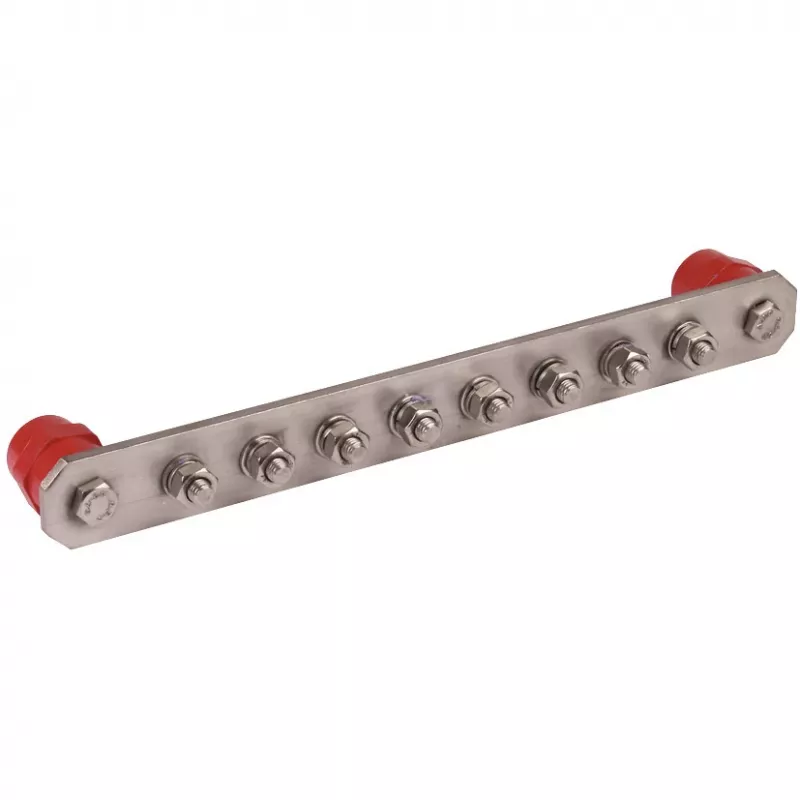

DEHN PAS I 8AP barra di equipotenziale, acciaio inox, 8 connessioni, senza coperchio 472229

Equipotential bonding bar with 8 connection terminals, built on a stainless steel base plate without cover. The PAS I 8AP provides a central point for main equipotential bonding and lightning protection equipotential bonding in electrical installations, ensuring reliable and corrosion-resistant connections.

Advantages

High corrosion resistance due to stainless steel base plate. Brass clamp bodies and galvanized steel screws ensure durable, low-resistance connections. Compact design for surface mounting in distribution boards or on walls.

Suitable for

• Main equipotential bonding according to DIN VDE 0100-410/-540
• Lightning protection equipotential bonding according to DIN VDE 0185-305-3
• Connecting round conductors from 2.5 mm² to 50 mm² and flat conductors up to 30x4 mm

Key specifications

• Base plate material: Stainless steel (Niro)
• Clamp body material: Brass
• Screw material: Steel, galvanized
• Total connection points: 8
• 7 terminals for round conductors 2.5-25 mm² (solid/stranded) or 1.5-16 mm² (fine-stranded)
• 1 terminal for round conductor 2.5-50 mm² (solid/stranded) or 1.5-35 mm² (fine-stranded)
• 1 terminal for flat conductor 30x4 mm or 2 x 30x3.5 mm
• Mounting method: Surface mounting

Recommendations

Ideal for electricians and panel builders who need a robust, maintenance-free bonding bar for equipotential bonding in residential, commercial, and industrial installations.
