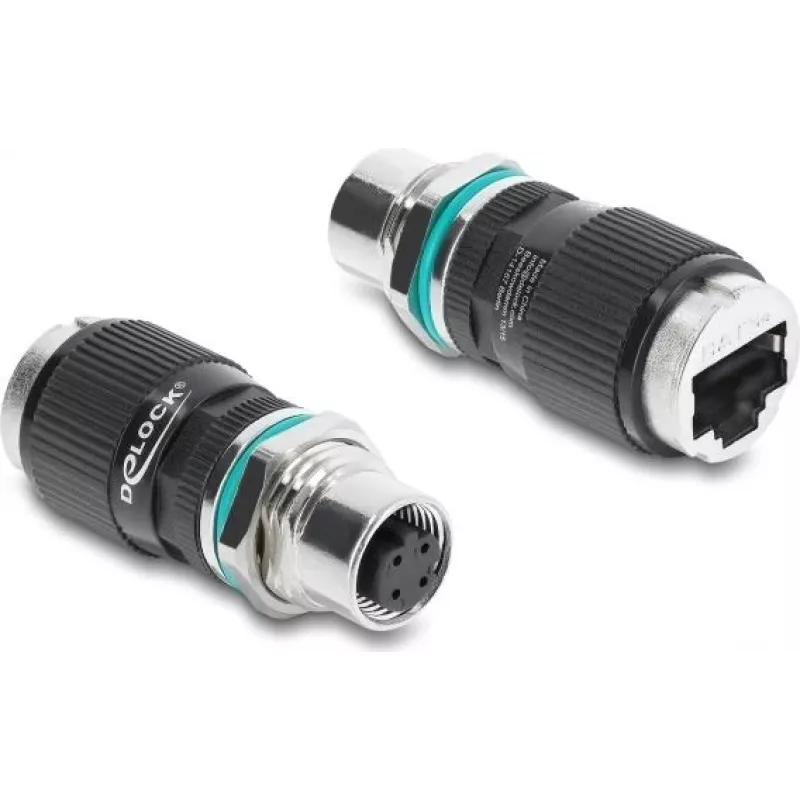

Delock Adattatore M12 codifica D 4 pin femmina a RJ45 femmina da pannello rotondo dritto

The Delock M12 Adapter D-coded 4 Pin Female to RJ45 Female is a robust industrial adapter designed for reliable Ethernet connections in harsh environments. This adapter allows you to connect an M12 D-coded cable to a standard RJ45 patch cable, making it ideal for use in automation, machinery, and outdoor installations. With IP67 protection when properly connected, it ensures dust and water resistance for demanding applications.

Advantages

This adapter provides a secure and durable connection between M12 and RJ45 interfaces. Its panel mount design with M16 x 1.5 thread allows for easy installation in control cabinets or junction boxes. The nickel-plated brass housing and gold-plated contacts offer excellent corrosion resistance and reliable signal transmission. Supporting Cat.5e, it is suitable for Fast Ethernet and PoE applications.

Suitable for

• Industrial Ethernet networks
• Automation and control systems
• Outdoor and harsh environment installations
• Connecting M12 sensors or actuators to RJ45 switches

Key specifications

• Connector 1: M12 D-coded female, 4-pin
• Connector 2: RJ45 female
• Mounting: Panel mount, round, straight
• Mounting thread: M16 x 1.5
• Mounting hole diameter: 16 mm
• IP rating: IP67 (when mated)
• Shielding: Yes
• Category: Cat.5e
• Housing material: Nickel-plated brass
• Contact material: Gold-plated brass
• Operating temperature: -20 °C to 85 °C
• Max. voltage: 250 V
• Max. current: 4 A
• Insulation resistance: > 100 MΩ
• Contact resistance: < 10 mΩ

Recommendations

For optimal performance, use with Delock M12 D-coded cables and ensure proper mating to achieve IP67 protection. Suitable for use with Cat.5e or lower category cables.
