Delock canalina portacavi 40 x 25 mm - lunghezza 1 m grigio

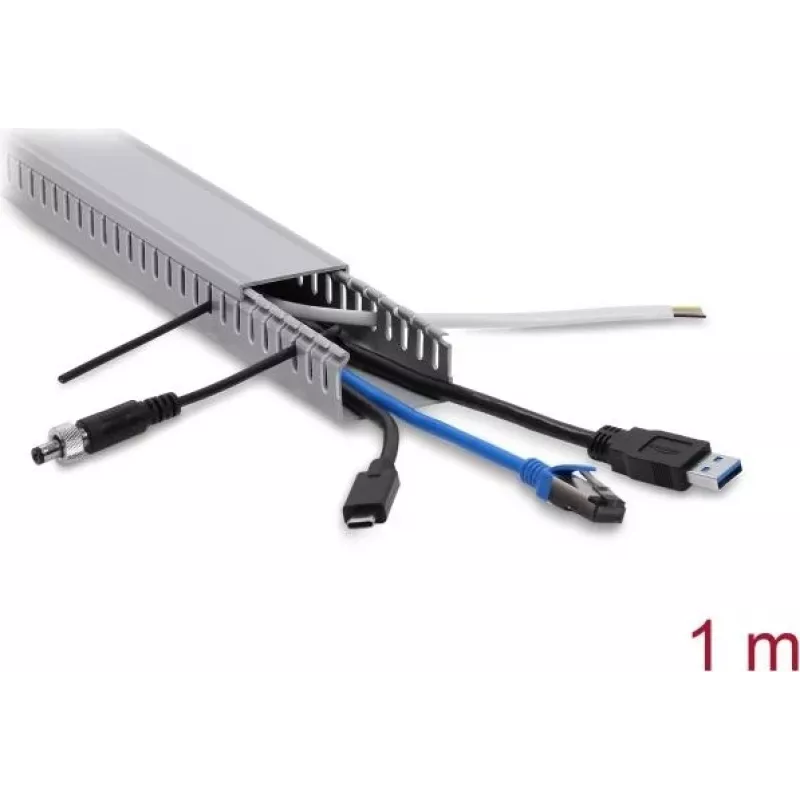

This wiring duct offers a clean, professional solution for routing and protecting cables in control cabinets and electrical installations. Its slotted side walls with break-out fingers allow cables to be branched off at any point without the need for special tools, while the included cover keeps everything neatly concealed.

Advantages

The duct is made from impact-resistant PVC and features a self-extinguishing UL94 V-0 rating, ensuring safety in demanding environments. The perforated base enables quick screw mounting, and the grey RAL 7030 colour blends seamlessly into industrial settings.

Suitable for

• Control cabinet wiring and cable management
• Electrical installations in industrial and commercial buildings
• Structured cabling in IT and telecommunications
• Protecting cables from mechanical damage and dust

Key specifications

• Dimensions: 40 mm width x 25 mm height x 1000 mm length
• Slot width: 6 mm, slot spacing: 8 mm
• Material: PVC, grey RAL 7030
• Cover included, halogen-free: No
• Temperature range: -5 °C to +60 °C
• Flammability rating: UL94 V-0
• RoHS compliant, standard: EN 50085-2-3

Recommendations

For a tidy and safe cable routing system, combine this duct with matching Delock cable ties and connectors. Ensure the mounting surface is clean and flat for secure screw fixing.
