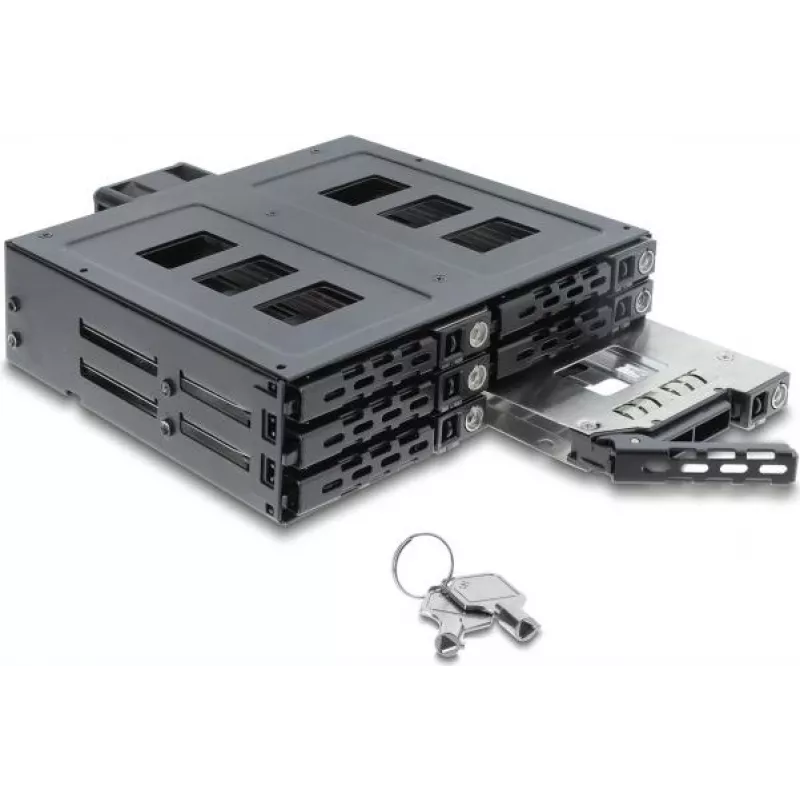

Delock cassetto estraibile 5,25" per 6 x 2,5" HDD/SSD SATA o SAS con serratura

The Delock 5.25" Wechselrahmen (mobile rack) allows you to install up to six 2.5" SATA or SAS hard drives or SSDs into a single 5.25" drive bay. With a key lock for security and a built-in fan for cooling, this rack is ideal for expanding storage capacity in a desktop PC or server.

Advantages

Hot-swap support enables drive replacement without shutting down the system. The key lock prevents unauthorized removal of drives. The integrated 40 mm fan ensures adequate cooling for multiple drives.

Suitable for

• Desktop computers with a free 5.25" bay
• Servers requiring additional 2.5" storage
• Users needing hot-swap capability for SATA or SAS drives

Key specifications

• Host bay: 1 x 5.25"
• Supported drives: 6 x 2.5" SATA I/II/III or SAS I/II/III HDD/SSD
• Maximum drive height: 9.5 mm
• Internal connectors: 6 x SATA 7 pin (data)
• Host data connectors: 6 x SATA 7 pin
• Host power connectors: 2 x SATA 15 pin
• Data transfer rate: up to 6 Gb/s (SATA III / SAS III)
• Hot-swap: Yes
• Security: Key lock
• Material: Metal
• Cooling: 1 x 40 mm fan
• LED indicators: Power and access per drive
• Color: Black
• OS independent

Recommendations

For optimal performance, use with a host controller that supports SATA III or SAS III. Ensure the host bay provides sufficient power via the two SATA power connectors.
