Cavo coassiale USB4 Gen 3x2 USB-C a USB-C 40 Gbit/s PD 3.1 240 W angolare sinistra/destra 1 m

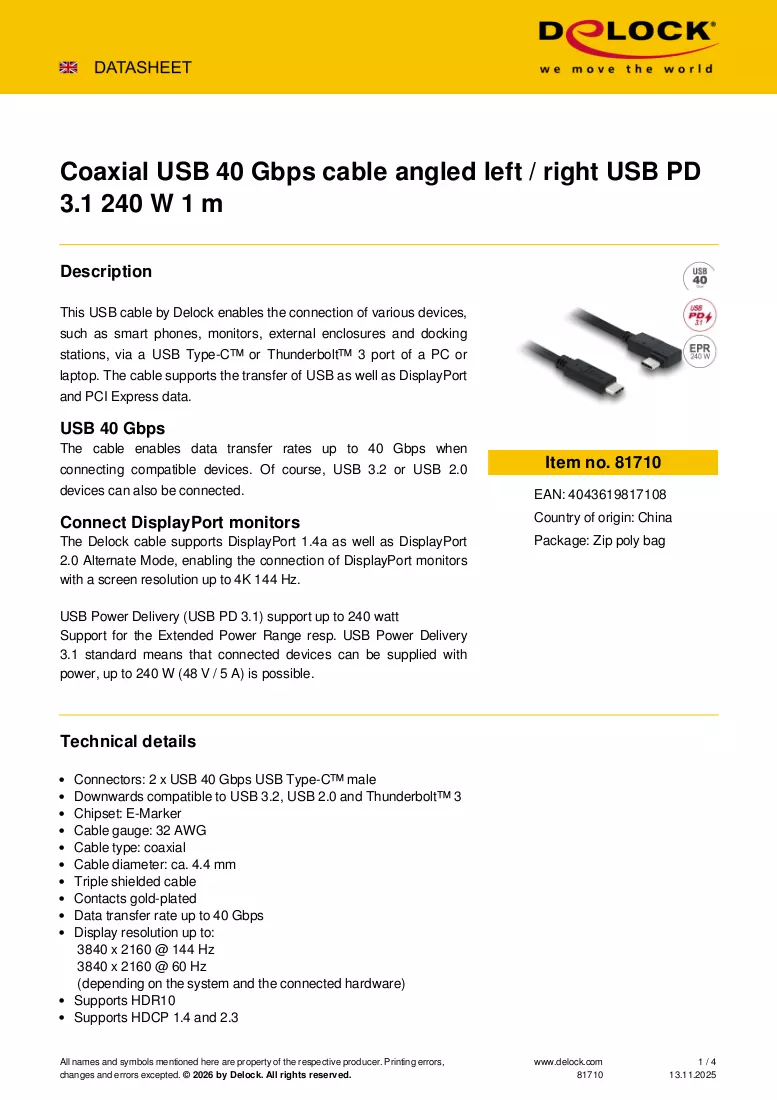

The DELOCK Coaxial USB4 Gen 3x2 cable (USB‑C to USB‑C) provides a single-cable solution for connecting devices such as smartphones, external storage, monitors, docking stations and enclosures to a PC or laptop with a USB‑C or Thunderbolt 3/4 port. The cable supports USB data, DisplayPort Alternate Mode and PCI Express tunnelling and is designed for high data throughput and power delivery in compact setups.

Advantages

This coaxial USB4 Gen 3x2 cable supports data transfer rates up to 40 Gbps and is backward compatible with USB 3.2 and USB 2.0 devices. It supports DisplayPort 1.4a and DisplayPort 2.0 Alternate Mode for driving external monitors up to 4K at 144 Hz and carries USB Power Delivery 3.1 (Extended Power Range) for device charging and powering up to 240 W (48 V / 5 A). The cable features angled left and right USB‑C connectors and a 1 m black jacket for convenient routing in tight spaces.

Suitable for

• Connecting external NVMe enclosures and fast storage to a laptop or PC
• Connecting docking stations and multiport hubs via a single USB‑C cable
• Driving DisplayPort monitors using USB‑C Alternate Mode (up to 4K 144 Hz, depending on host and display)
• High‑power charging and powering laptops or devices that support USB PD up to 240 W

When it may not be suitable

This cable requires hosts and peripherals that support USB4 Gen 3x2, DisplayPort Alternate Mode and USB PD 3.1 to achieve the maximum data rates, video resolutions and power levels. If either the host or the connected device only supports older USB standards or lacks Alternate Mode/PD 3.1, the connection will fall back to the lower capabilities of the least capable device.

Key specifications

• Connector type: USB‑C to USB‑C (angled left and angled right options)
• USB standard: USB4 Gen 3x2 (supports USB 3.2 and USB 2.0 compatibility)
• Maximum data transfer rate: up to 40 Gbps
• Display support: DisplayPort 1.4a and DisplayPort 2.0 Alternate Mode (up to 4K @ 144 Hz depending on devices)
• Power delivery: USB Power Delivery 3.1 (Extended Power Range) up to 240 W (48 V / 5 A)
• Cable length: 1 m
• Colour: Black

How to use

Connect one USB‑C angled end to the host device and the other USB‑C angled end to the peripheral such as an external SSD enclosure, monitor or docking station. Ensure both host and peripheral support the required standards (USB4 Gen 3x2, DisplayPort Alternate Mode and USB PD 3.1) if you need the highest data throughput, video output or power delivery. Devices and operating systems will typically recognise the connection automatically; follow any device‑specific prompts to configure display settings or power options.

What to consider before purchase

• Verify that host and connected devices support USB4 Gen 3x2 and/or the desired Alternate Mode features
• Check that both devices support USB PD 3.1 if you require up to 240 W power delivery
• Confirm required cable length (1 m) and angled connector orientation fit your setup

Recommendations

Use this DELOCK USB4 Gen 3x2 cable for high‑speed external storage, single‑cable docking setups and high‑power charging where devices explicitly support USB4, DisplayPort Alternate Mode and USB PD 3.1 to ensure full performance.
