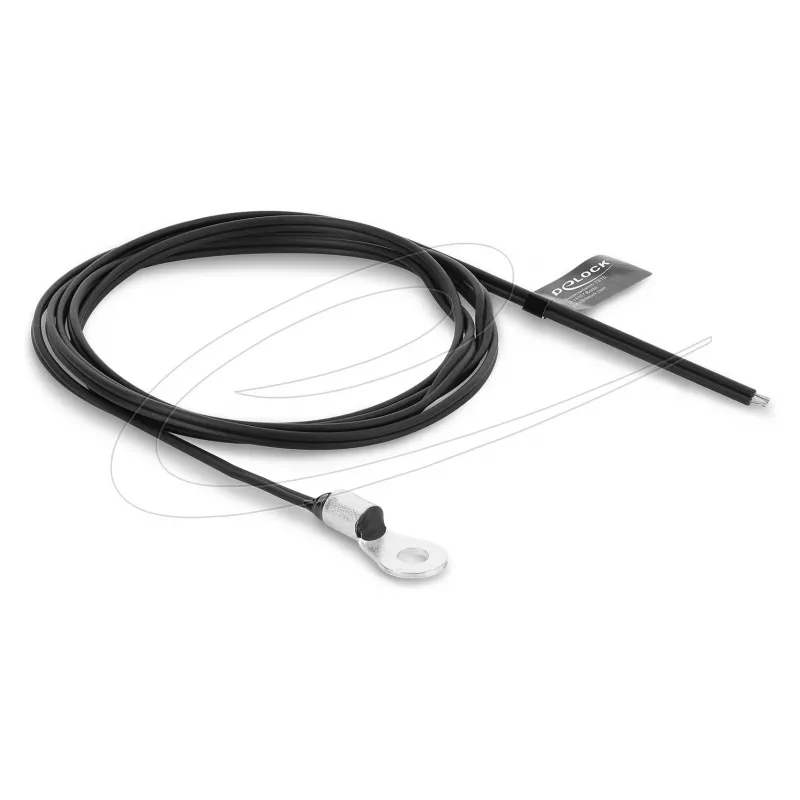

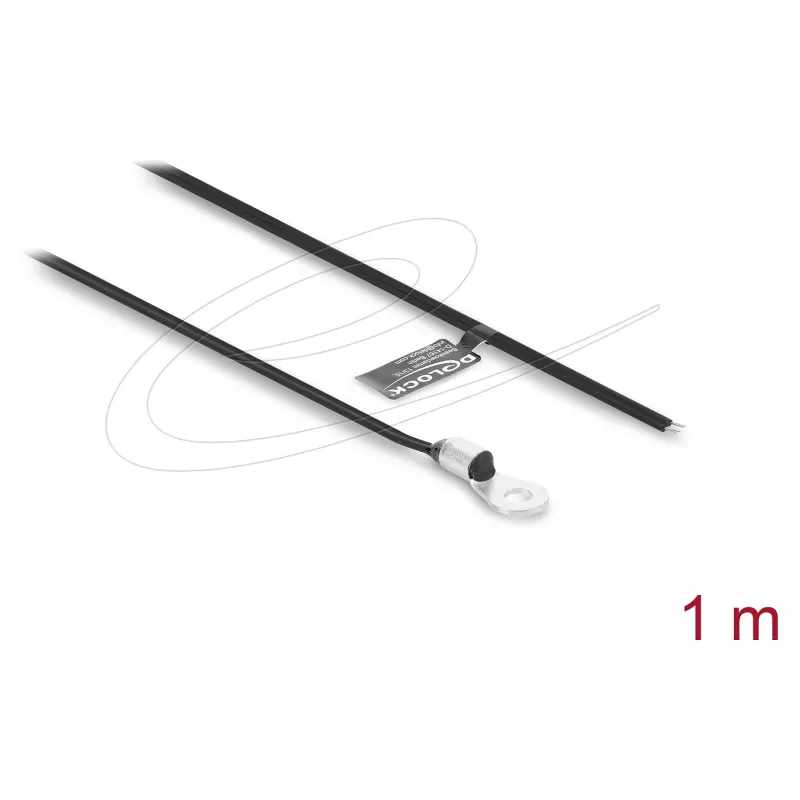

Delock cavo sensore di temperatura M4 con 2 estremità aperte PVC flat B25/50 3950K 1 m

For precise temperature monitoring in tight spaces, this Delock sensor cable pairs an NTC thermistor with a flat, flexible PVC cable and an M4 ring lug for secure screw mounting. Unlike rigid probes, the flat cable routes cleanly around obstacles, while the 10 kOhm resistance at 25°C and 3950K B-value ensure compatibility with standard temperature controllers and data loggers.

Highlights

• NTC thermistor with 10 kOhm at 25°C and B25/50 3950K for accurate readings
• M4 ring lug for easy attachment to screws or bolts
• Flat PVC cable (3 x 1.5 mm) for low-profile installation
• Wide operating range from -25 °C to 105 °C
• Two open cable ends for flexible wiring to your system
• 1 m length covers most short to medium runs

In daily use

Install the M4 lug under a screw on a heat sink, pipe, or enclosure wall, then route the flat cable along surfaces or through narrow gaps. The nickel-plated copper housing protects the thermistor from corrosion and mechanical stress, while the 28 AWG conductors remain easy to solder or crimp. With ±1 % accuracy, this sensor delivers repeatable measurements for HVAC, 3D printers, battery packs, and industrial controls.

Full specifications

• Sensor type: NTC thermistor
• Resistance at 25°C: 10 kOhm
• B-value (25/50°C): 3950K
• Accuracy: ±1 %
• Operating temperature: -25 °C to 105 °C
• Sensor housing: nickel-plated copper
• Sensor dimensions (L x W): 15 x 6 mm
• Mounting: M4 ring lug
• Cable type: flat
• Cable dimensions (W x H): 3 x 1.5 mm
• Conductor gauge: 28 AWG
• Cable material: PVC
• Cable length: 1 m
• Connector 1: M4 ring lug
• Connector 2: 2 x open cable ends
• Number of conductors: 2

Final note

This sensor cable is a dependable choice when you need a compact, screw-mount temperature probe with a flexible flat cable and standard NTC characteristics.
