DeLOCK Modulo Keystone DC 5,5 x 2,5 mm femmina su DC 5,5 x 2,1 mm maschio bianco

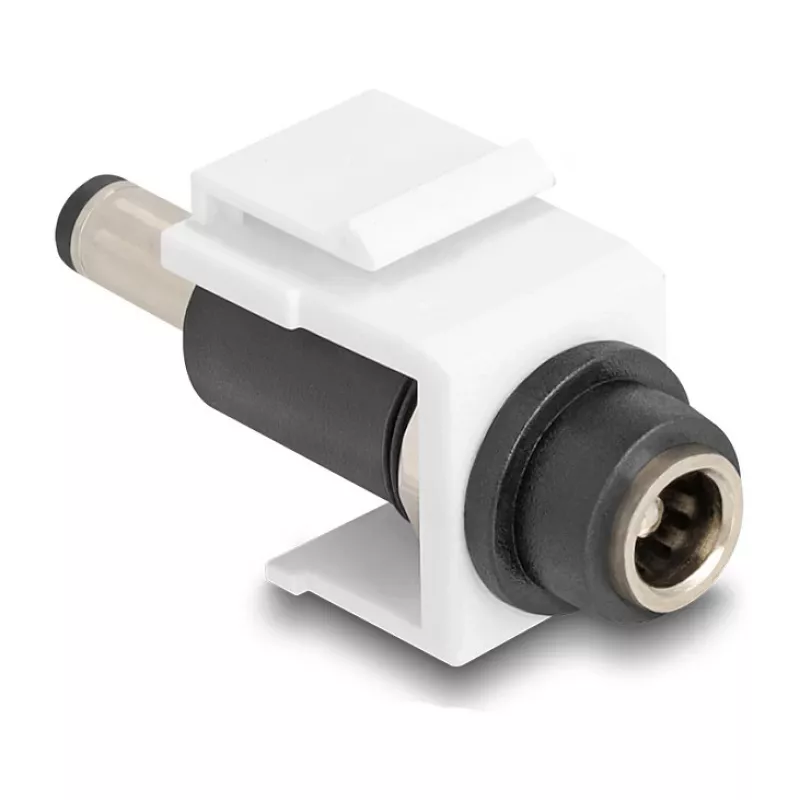

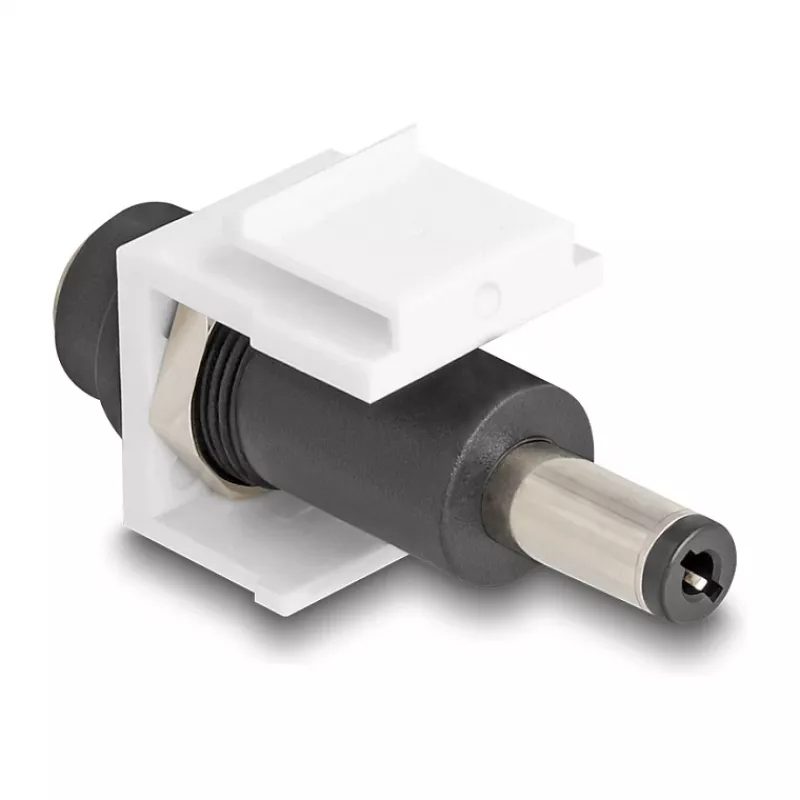

This DC female bulkhead by DeLOCK provides an easy way to route power through a housing or device. It features a female DC 5.5 x 2.5 mm inlet and a male DC 5.5 x 2.1 mm outlet in a flat, snap-in keystone form factor, finished in white. With compact dimensions (16.2 mm × 42.3 mm × 21.8 mm) the DeLOCK Keystone Module is suitable for installation in keystone panels, face plates or surface-mount boxes to supply connected equipment.

Advantages

The module offers standardized keystone dimensions for simple snap-in mounting, a compact flat construction for space-saving installation and integrated DC connectors that adapt between 5.5 x 2.5 mm (female) and 5.5 x 2.1 mm (male). The white colour provides a neutral appearance for typical face plate and panel installations. It is compatible with devices that require the specified connector types when voltage, current and polarity match the power supply.

Suitable for

• Keystone patch panels and face plates
• Surface-mount boxes and housings
• Powering small electronic devices that accept DC 5.5 x 2.1 mm male plugs
• Adapters or cable routing where a 5.5 x 2.5 mm female feed must convert to 5.5 x 2.1 mm

Key specifications

• Connector 1: DC 5.5 x 2.5 mm (female)
• Connector 2: DC 5.5 x 2.1 mm (male)
• Product colour: White
• Dimensions (W × D × H): 16.2 × 42.3 × 21.8 mm
• Form factor: Keystone snap-in module
• Brand: DELOCK, MPN: 84176, EAN: 4043619841769

How to use

Insert the DeLOCK keystone module into a compatible keystone opening or surface-mount box until it snaps into place. Connect the power source to the female DC 5.5 x 2.5 mm inlet and plug the device to be powered into the male DC 5.5 x 2.1 mm outlet. Ensure mechanical stability of the mounting and secure any internal wiring as required by the enclosure.

Recommendations

Verify that the voltage, current rating and polarity of the power supply match the requirements of the connected device before use to ensure correct function and to avoid damage.
