Modulo Keystone LogiLink NK4030

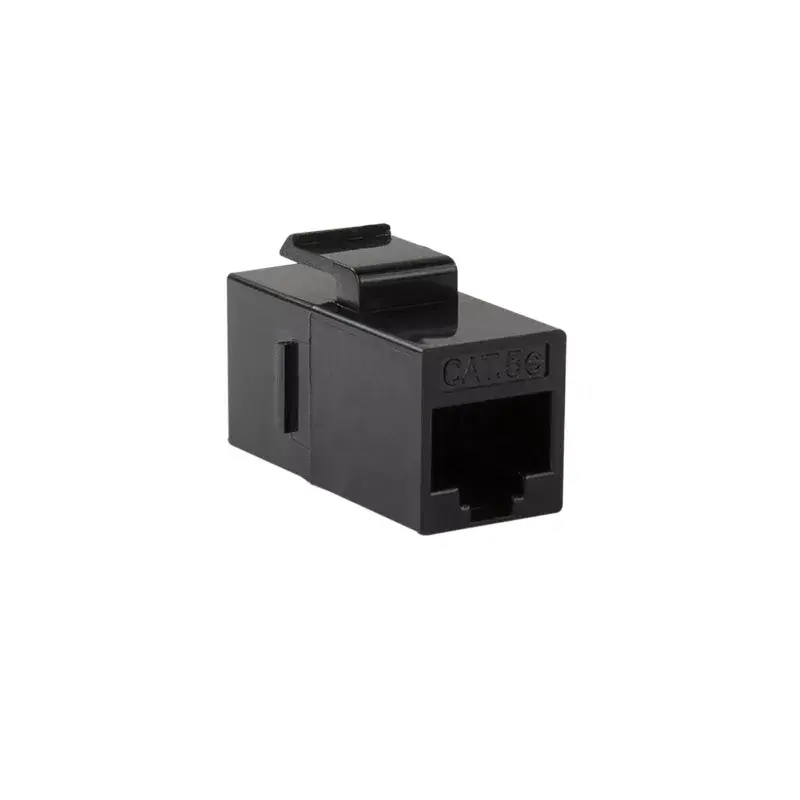

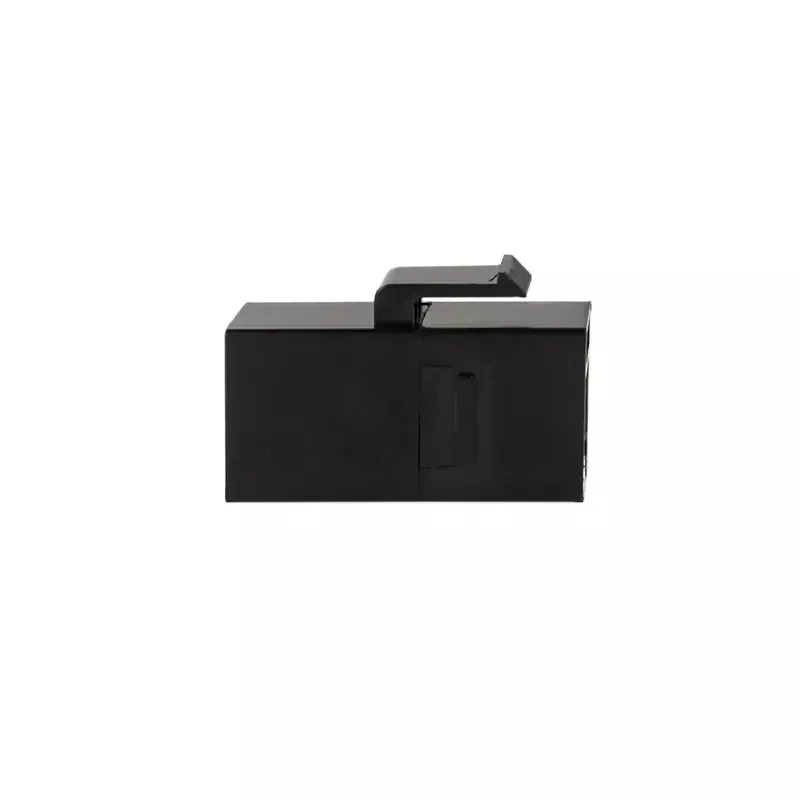

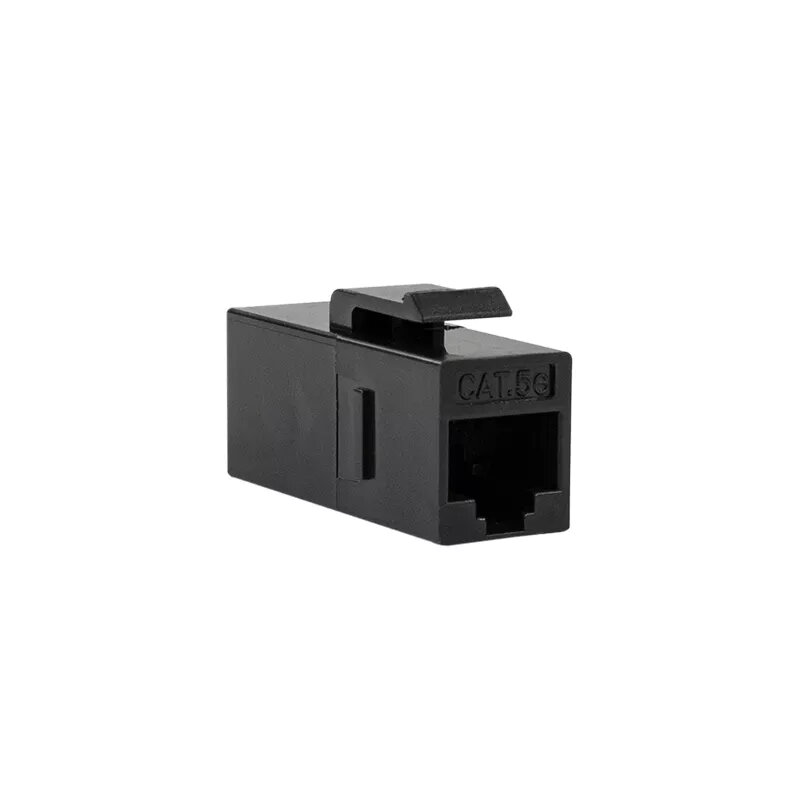

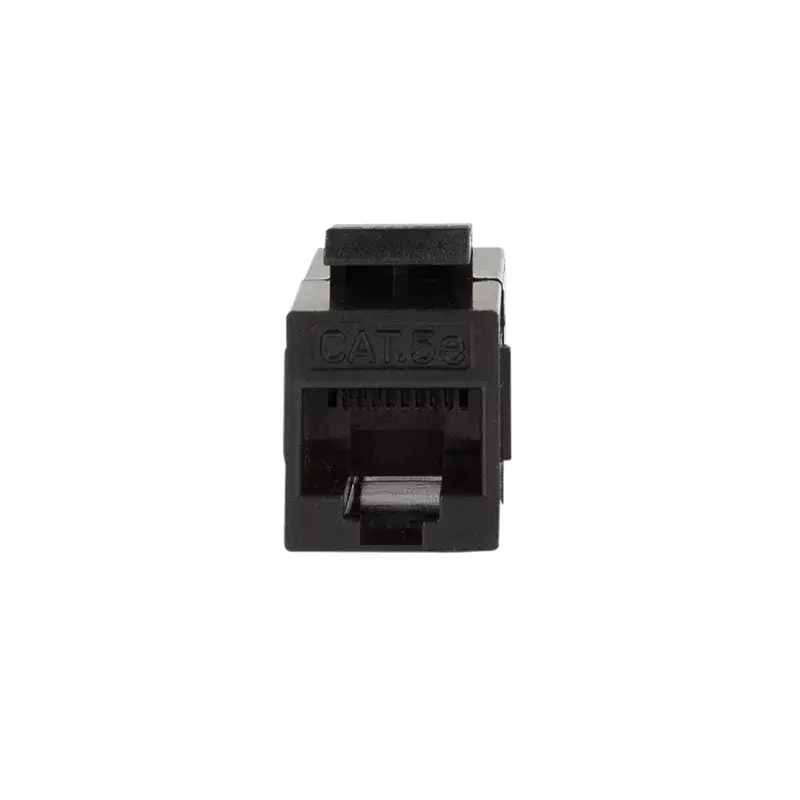

The LogiLink NK4030 is a flat black keystone module with an RJ-45 female feed-through connector designed for Cat.5e UTP networks. Its compact dimensions (14.5 mm wide, 32.7 mm deep, 22 mm high) make it suitable for snap-in mounting in keystone panels and surface-mount boxes, providing a simple inline coupling solution for horizontal and patching cabling. The module is sold individually and delivers a neat, space-saving connection point for networking installations.

Advantages

The flat keystone design ensures compatibility with standard keystone ports and blank panels while maintaining a low-profile appearance. The RJ-45 female-to-female feed-through simplifies cable routing and allows quick connection between two Ethernet cables without requiring a wall jack or additional termination. Constructed for tool-free snap-in installation, the module supports easy placement and replacement in dedicated keystone panels or surface-mount boxes.

Suitable for

• Extending Cat.5e UTP Ethernet runs where a compact inline coupler is needed
• Creating consolidation points in patch panels or wallplate assemblies
• Quick temporary connections for testing or troubleshooting network cables
• Installing in blank keystone panels and LogiLink surface-mount boxes

Key specifications

• Connector type: RJ-45 female to RJ-45 female (feed-through)
• Cable category compatibility: Cat.5e UTP
• Mounting: snap-in keystone module for keystone panels and surface-mount boxes
• Color: black
• Dimensions: 14.5 mm (W) × 32.7 mm (D) × 22 mm (H)
• Packaging: single unit

How to use

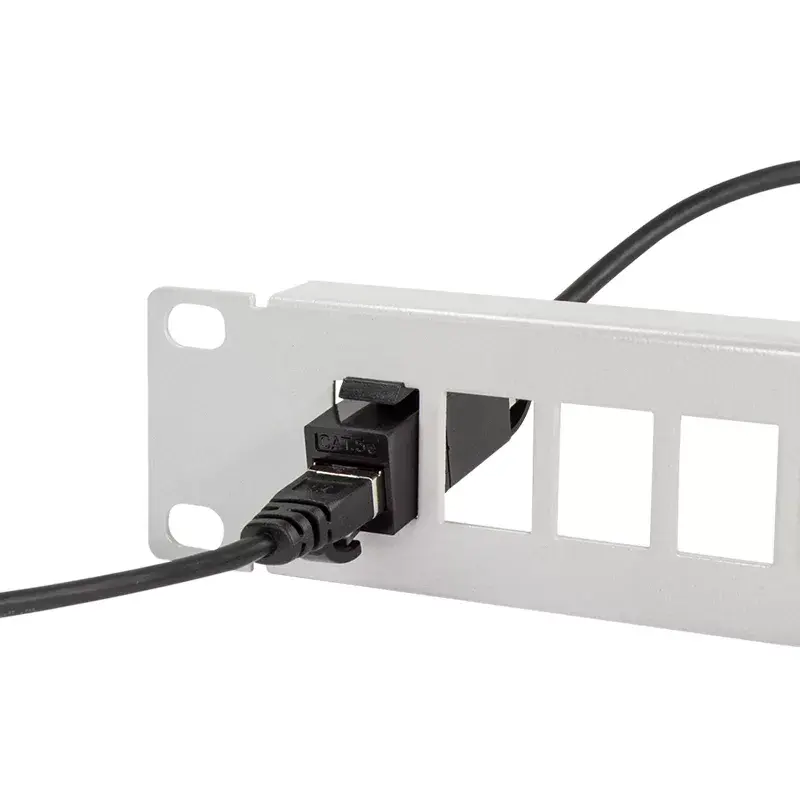

Insert the LogiLink NK4030 into a compatible keystone opening by aligning the module with the panel or surface-box slot and pressing until it snaps into place. Connect one RJ-45 cable into each side of the feed-through connector to establish a continuous Ethernet link. For removal, depress the module’s retention tabs and gently pull it out of the mounting opening. Ensure cables are properly seated and check link status on connected devices after installation.

Recommendations

Use the module with Cat.5e UTP cables to maintain rated performance; avoid applying excessive bending or strain to cables at the connection point. Install within compatible keystone panels or LogiLink surface-mount boxes for secure mounting and to prevent accidental disconnection. For permanent installations or higher bandwidth requirements, consider using certified patch panels or higher-category components.
