Delock scheda PCI Express x4 a 1 x NVMe M.2 Key M interno 80 mm - formato Low Profile 90047

Add a high-speed NVMe M.2 SSD to your desktop with this PCIe 4.0 x4 adapter card, delivering up to 64 Gbps transfer rates for demanding workloads.

Overview

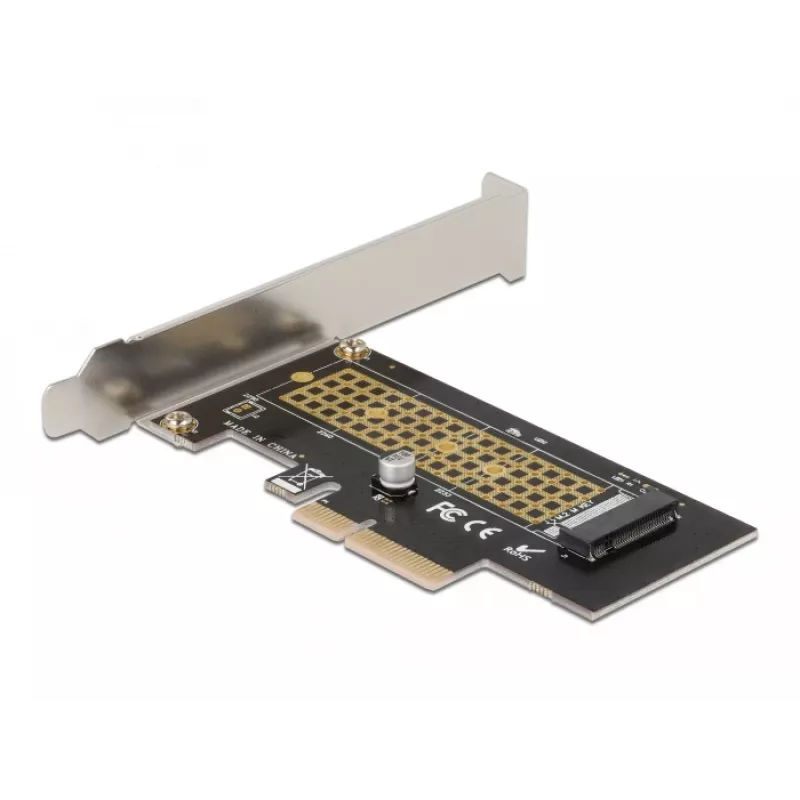

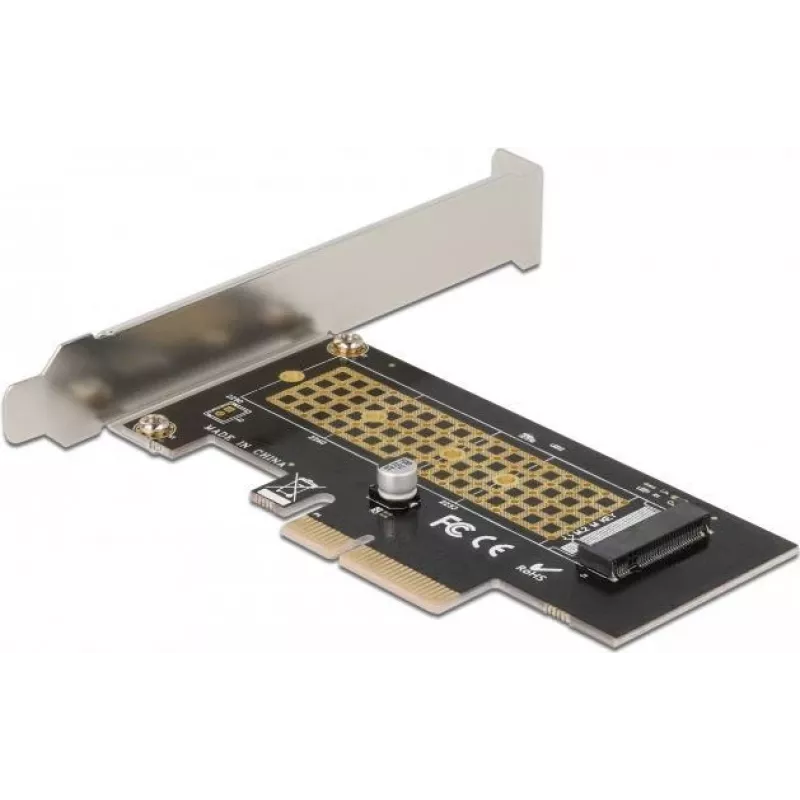

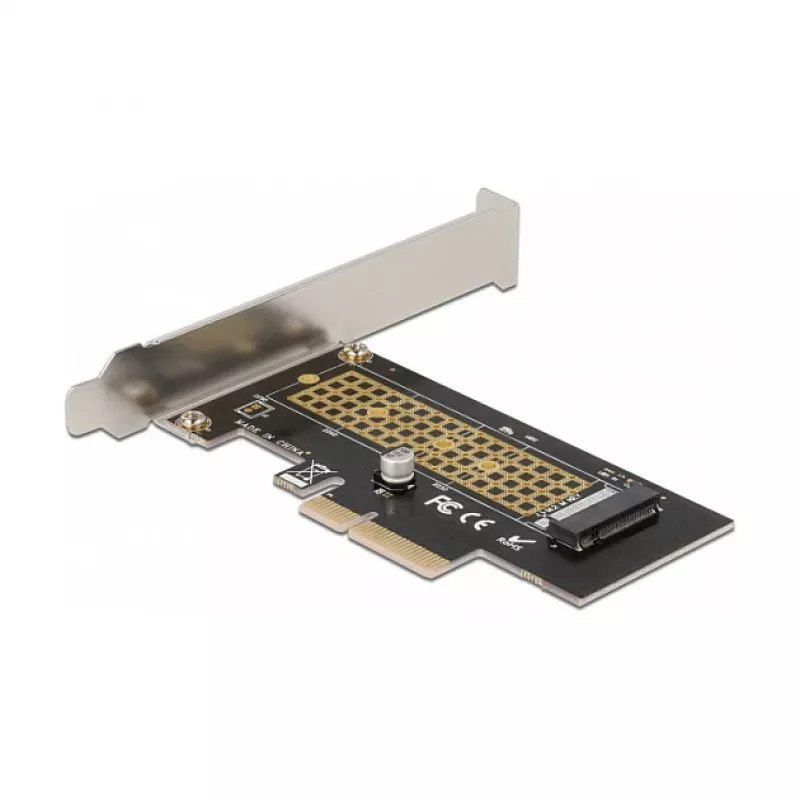

The Delock 90047 expands your system by one internal M.2 Key M slot via a PCI Express x4 interface. It supports NVMe SSDs in 2230, 2242, 2260, and 2280 form factors, and fits both standard and low-profile brackets.

What stands out

• PCIe 4.0 x4 host interface for maximum bandwidth
• Supports M.2 NVMe SSDs up to 80 mm length

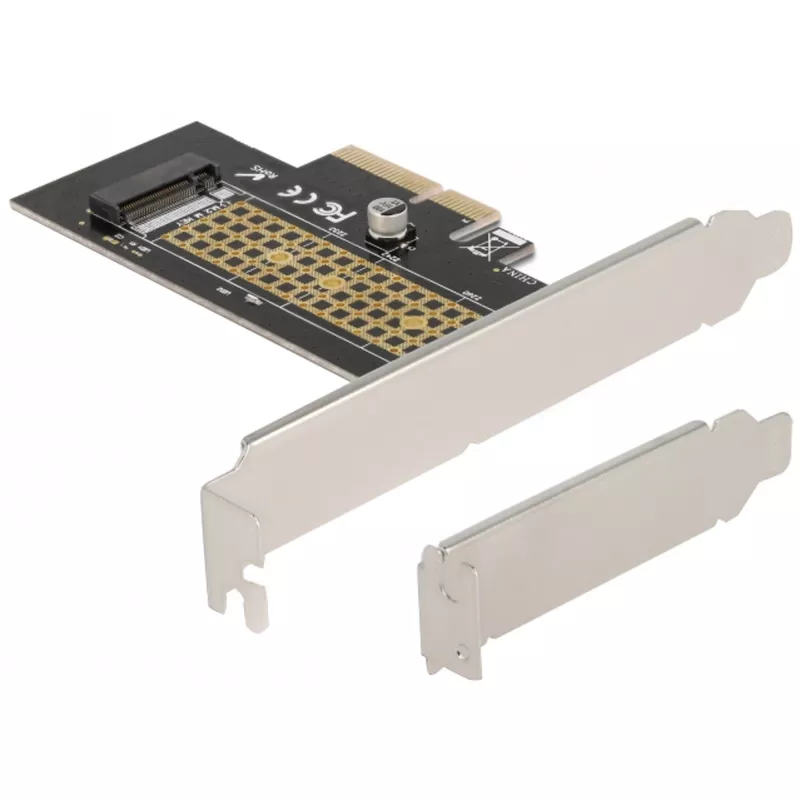

• Includes low profile bracket for slim cases
• LED indicators for power and activity
• Bootable support for OS installation

Technical details

• Host Interface: PCI Express 4.0 x4
• Device Interface: 1 x M.2 Key M slot
• Supported M.2 SSD Type: NVMe (PCIe-based)
• Supported M.2 Form Factors: 2280, 2260, 2242, 2230
• PCIe Slot Compatibility: PCIe x4, x8, x16, x32 slots
• Max Data Transfer Rate: 64 Gbps
• Bootable Support: Yes
• Operating System Compatibility: Windows 8.1/10/11, Linux Kernel 4.3+, macOS
• LED Indicators: Power, Activity
• Power Source: PCIe Bus Power
• Included Accessories: Low Profile Bracket
• NVM Express Compliance: 1.3
• Number of M.2 Slots: 1

Our verdict

A straightforward PCIe to M.2 NVMe adapter for expanding storage capacity with high-speed SSDs.
